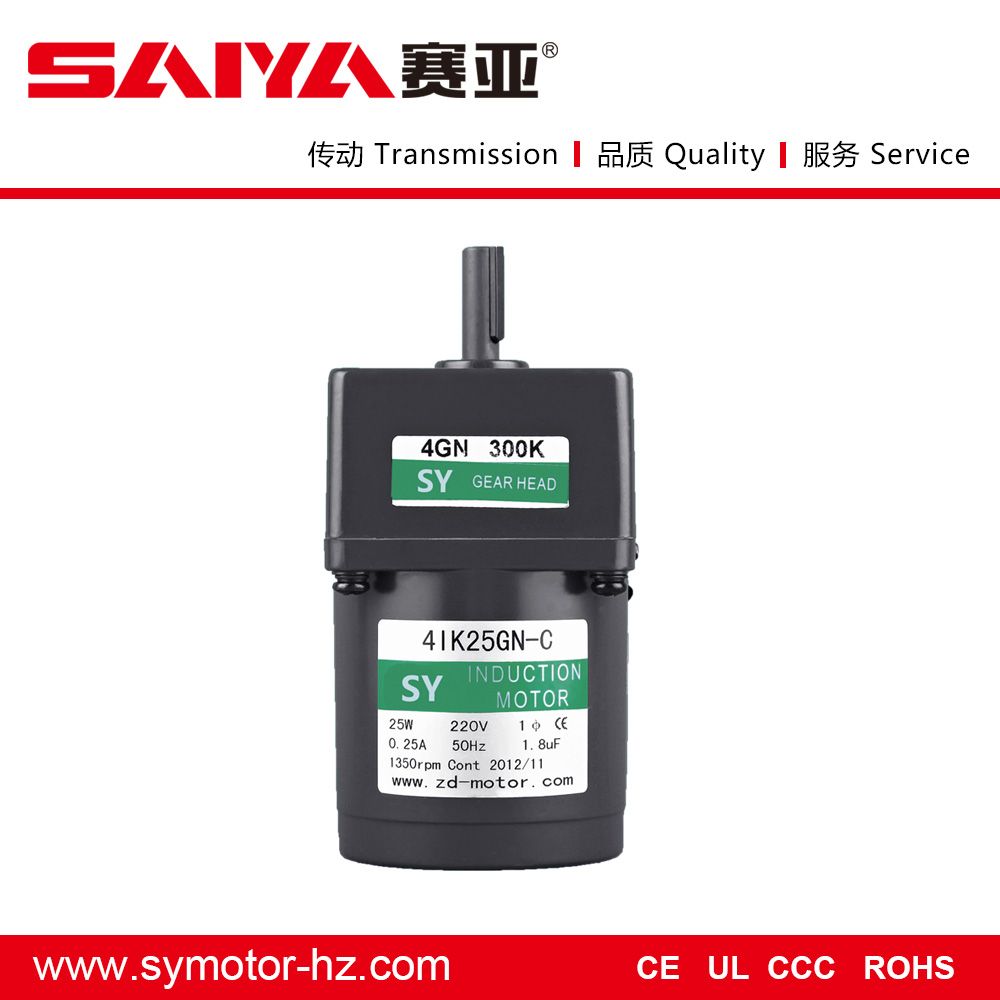

25W High Torque AC Induction Gear Motor for Food Machinery
| Price: |
US $ 41.54/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
4IK25GN-A/4GN9K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimensions Of Device: |
60mm |
| Power: |
10W |
| Voltage: |
220V, 230V |
| No-Load Speed: |
83rpm |
| Reduction Ratio: |
18:1 |
| Item Name: |
25W High Torque AC Induction Gear Motor for Food M |
| Function: |
Control |
| Number Of Stator: |
Single Phase and Three Phase |
| Starting Mode: |
Other |
| Certification: |
SGS |
| Brand: |
Other |
Product Description
25W High Torque AC Induction Gear Motor for Food Machinery1. Welcome to our online company! ! !
2. It's only the typical data.
The gear motor can be customized if you have some special requirements such as the gear ratio, torque and shaft dimension.
The motor price is also for reference only and it will be decided by the reduction ratio and body's length.
3. If you have any questions, pls do not feel hesitate to ask us. You can send us messages, emails or give us a call.
Packaging details: 12 pcs in 1 carton (optional)
Delivery Detail: 7-20 days
Features:
1)Dimensions of device: 60mm, 70mm, 80mm, 90mm, 104mm
2)Power: 6W, 10W, 15W, 25W, 40W, 60W, 90W, 120W, 140W, 180W, 200W
3)
Voltage: Single phase 100V50/60Hz4P;
Single phase 100V50Hz2P;
Single phase 220/230V50Hz4P
Single phase 220V50Hz2P
Single phase 110/120V60Hz4P
Single phase 220/230V60Hz4P
3-Phase 200/220/230v50/60Hz4P
3-Phase 380/400/415V50/60Hz4P
3-Phase 200/220/230V50/60Hz2P
3-Phase 300/400/415V50/60Hz2P
4)Shape of motor shaft:
1) GN Type: Pinion Shaft
2) GU Type
3) Round Shaft
4) Keyway
5)Gear type:
1) GN Type Gear
2) GU Type Gear| Frequency | Reduction Ratio | | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 |
| 50Hz | Output Shaft Speed | r/min | 500 | 417 | 300 | 250 | 200 | 166 | 120 | 100 | 83 | 60 | 50 |
| Allowable Torque | N. m | 0.49 | 0.58 | 0.81 | 0.97 | 1.2 | 1.5 | 2 | 2.4 | 2.9 | 3.7 | 4.4 |
| kgf. cm | 5 | 5.91 | 8.26 | 9.89 | 12.2 | 15.3 | 20.40 | 24.4 | 29.6 | 37.7 | 44.9 |
| Frequency | Reduction Ratio | | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 |
| 50Hz | Output Shaft Speed | r/min | 41 | 30 | 25 | 20 | 16 | 15 | 12.5 | 10 | 8.3 | 7.5 |
| Allowable Torque | N. m | 5.3 | 6.6 | 7.9 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| kgf. cm | 54.1 | 67.3 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
Our company is specialized in mirco AC gear motors.
At present, there are three kinds of motors in our company:
1) micro gear motor include AC gear motor and DC gear motor;
2) small AC gear motor;
3) precision planetary gear motor.
They are widely used in machine tools, textile machinery, medical appliance, conveying machines, printing mechanism, food machinery, vending machines, packing machinery, and gumming machines.
With excellent equipment, advanced procedure, scientific management, and modern test method, we can provide all customers both at home and abroad with our top quality products, favorable prices and sincere service.
We hope that we canestablish long-term business relationships together with you for mutual business success.
The brief introduction of our company:
Our company supplys different kinds of products. High quality and reasonable price.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
To perfect our service, we provide the products with good quality at the reasonable price.
The Products Of Our Company:
Our Company Is Specialized In Gear Motors. At Present, There Are Three Kinds Of Motors In Our Company:
1) Micro Gear Motor Include Micro AC Gear Motor And Micro DC Gear Motor;
2) Small AC Gear Motor;
3) Planetary Gear Motor.
The Usages Of Our Products:
They Are Widely Used In Machine Tools, Textile Machinery, Medical Appliance, Conveying Machines, Printing Mechanism, Food Machinery, Vending Machines, Packing Machinery, And Gumming Machines. With Excellent Equipment, Advanced Procedure, Scientific Management, And Modern Test Method, We Can Provide All Customers Both At Home And Abroad With Our Top Quality Products, Favorable Prices And Sincere Service.
You Can Tell Us About Your Requirements, And We Will Help You To Find The Right Type And Model Which Is Suitable For Your Products. Or You Can Also Provide Your Products Information And We Can Help You To Choose The Right Motors For You.
We Hope That We Can Establish Long-term Business Relationships Together With You For Mutual Business Success.
Motor Voltage, Power, And Speed Will Be Customized According To Your Request Under The Allowed Circumstanced Of Adoptable Dimension
