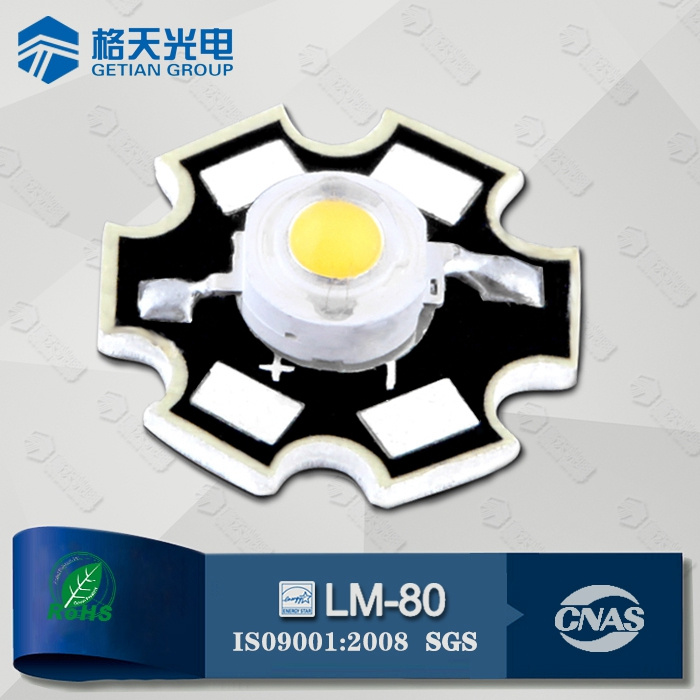

2600-4000k Warm White 1W 3W High Power LED Diode

Name: 2600-4000k Warm White 1W 3W High Power LED Diode
Brand: all-electronics-online.com
SKU: 802001845
Availability: InStock
Rating: 4.8 (109 reviews)

Price:	US $ 0.12-0.23/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	P02
Voltage:	3.0-3.6V
Current:	750mA
Usage:	Street Light
Power:	3W
Life:	50000h
LED Chips:	Epistar
Certification:	CE

Product Description

Parameters

Power	3W	Viewing Angle	120 Degree
Forward Voltage	3.0-3.6V	Storage Temperature	0- +60ºC
Forward Current	750mA	Operating Temperature	-40~ +60ºC
Luminous Flux	230-240LM	Junction Temperature	115ºC
CCT	2700-7000K	Thermal Resistance	12ºC/W
CRI	>70	LM-80	Yes
Application	Street Light, LED Bulb, Down Light Ceiling Light, Spot Light, Wall Wash
Chip	Bridgelux 45mil, Epistar 45mil, Epistar 28mil

Superior raw materials:
1) Bridgelux/Epistar semiconductor die
2) 1.5mil 99.99% high purity gold wire bond
3) Dow Corning's silica gel
4) Intematix's phosphor

Feature:
1) CE, RoHS, LM-80 Approved
2) Lead and mercury free
3) Lambertian beam pattern
4) 70% light output after 50, 000 hours of operation

Why Getian?
Strong R&D Forces
    * A strong R & D team of more than 40 experienced engineers.
    * CNAS Accredited Laboratory.
    * Launch highly-competitive new products seasonly.
    * Revolutionary launch for a full series of high power & high integration ceramic flip chip led.
Extensive Application Experience & Quality Commitment
   * Strict control over raw materials selection.
   * 5 Years Warranty;
   * Reliable long life span; LM-80 certification for High Power LED 1-300W.
   * More than 10 years' experience in Outdoor Lighting application both in domestic and overseas market.
   * Supported many government lighting projects.
Outstanding Service Level
   * Professional Sales Team backing up with experienced engineers.
   * Best Quality & Best Price & Best Service.
   * Customizaiton and OEM service available.

More detail, please feel free to contact with Nina Du

Shenzhen Getian Opto-electronics Co., Ltd. is a manufacturer specializing in LED components aiming to a global presence. Since established in 2005, GeTian has delivered the LED components products, technological innovations, and unparalleled customer trust level around the domestic and oversea marketing for over years.

Total investment is 50, 000, 000 yuan and production area is over 5, 000 square meters. Getian has 500 employees and more than 70 are R&D staffs. We have equipped full-automatic production machines for all the key manufacturing processes and full set testing machines. The annual capacity of high power LED is over 60, 000, 000PCS.

With more than 7 years' outstanding growth, Getian has become a group corporation which has high power LED, SMD LED and LED driver as the core business units. Shell fittings of LED, mold design and manufacturing are also well developed to have Getian be able to provide more comprehensive and professional service all over the world.

Getian insist that quality is one of core competence. All of the main products are listed with CE, RoHS, SGS certification and will pass in-house robust reliability testing before leaving factory. Besides, more than 12 patents have been obtained in LED design and manufacturing field. We successfully got ISO9001: 2008 certification and started running the ERP and BPC system in 2009. With all these outstanding performance, Getian achieved series of great honors, such as "Top 50 LED Manufacturer in China", "Hi-Tech. Enterprise", "Shenzhen Hi-Tech. Enterprise", and "Shanghai Expo Exhibition Enterprise", etc.

Warmly welcome all fields of friends to visit our company and negotiate trade.
