| Prod Model: |
57HSG76-3004A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Step Angle: |
1.8 |
| Frame Size: |
57mm X 57mm |
| Current: |
3A |
| Resistance: |
0.9 |
| Inductance: |
3.5mh |
| Holding Torque: |
18kg.Cm |
| Motor Body Length: |
76mm |
| Lead Wires: |
4 |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Magnetic-Electric |
| Operate Mode: |
Driver |
| Brand: |
Jss |
| Certification: |
Ce |
Product Description

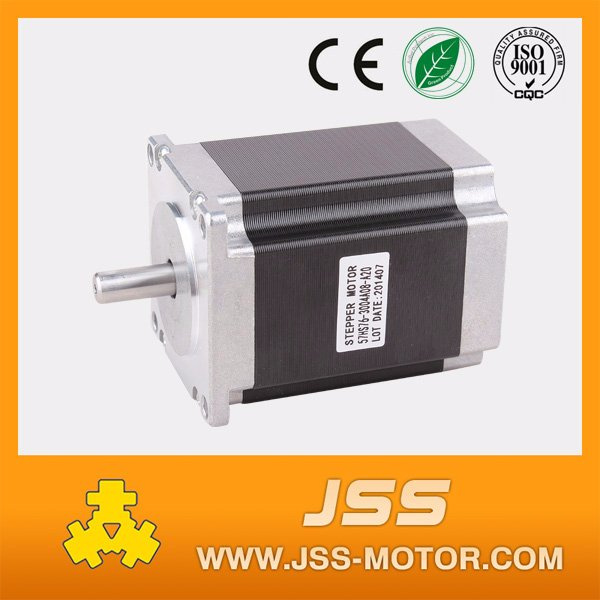

Description:1. NEMA 23 geared stepper motor, high performance, low heat, low virbration, low noise.
2. Gear ratio can be different. You can choose the gear ratio you want.
Step Angle Accuracy: ± 5%
Resistance Accuracy: ± 10%
Inductance Accuracy: ± 20%
Temperature Rise: 80° C Max
Ambient Temperature: -20° C~+50° C
Insulation Resistance: 100MΩ Min., 500VDC
Dielectric Strength: 500VAC for one minute
Shaft Radial Play: 0.02Max (450g-load)

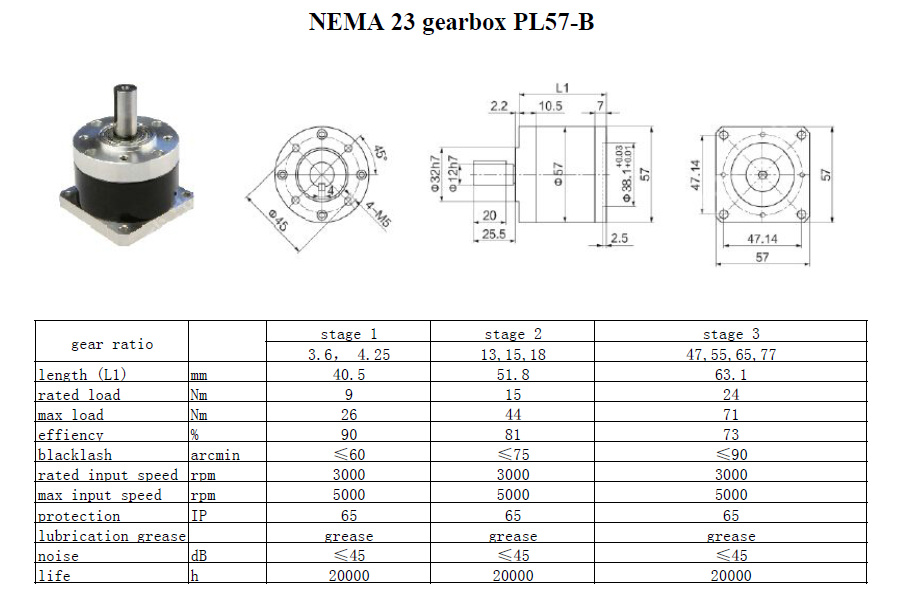

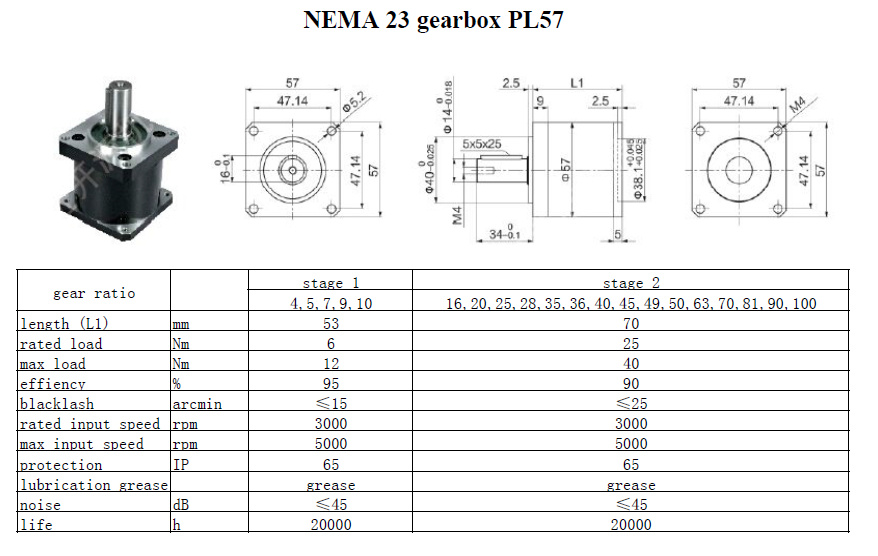

Shaft Axial Play: 0.08Max (450g-load)Gearbox data:
Application:Our products can be applied to printing equipment, engraving machine textile machine, computer external application equipment, medical instruments, stage light equipment, robot, CNC machine tool and other automatic controlling system.
We also produce linear stepper motor, gearbox stepper motor, stepper motor with brake, drivers for all the motors, and closed loop stepper motors and drivers. We also have accessories such as power supplys, spindles and inverters, breakout board, TB6560 driver board, timing pulleys and so on. | Nema 23 stepper motor data |
| TYEP | phase No. | step angle | current (A) | resistance(Ω±10) | inductance (mH±20) | holding torque (kg.cm) | length (mm) | wire No. |
| 57HS41-1004 | 2 | 1.8 | 1 | 5.4 | 9.5 | 5.5 | 41 | 6 |
| 57HS51-1504 | 2 | 1.8 | 1.5 | 1.6 | 4.2 | 8.2 | 51 | 4 |
| 57HS51-1606 | 4 | 1.8 | 1.6 | 2.6 | 5 | 9 | 51 | 6 |
| 57HS56-1504 | 2 | 1.8 | 1.5 | 3.8 | 12 | 12 | 56 | 4 |
| 57HS56-2006 | 4 | 1.8 | 2 | 1.8 | 2.8 | 9 | 56 | 4 |
| 57HS56-2804 | 2 | 1.8 | 2.8 | 0.9 | 3 | 12.6 | 56 | 4 |
| 57HS64-2004 | 2 | 1.8 | 2 | 1 | 4 | 12 | 64 | 4 |
| 57HS76-1004 | 2 | 1.8 | 1 | 6 | 20 | 20 | 76 | 4 |
| 57HS76-1006 | 4 | 1.8 | 1 | 8.6 | 14 | 13.5 | 76 | 6 |
| 57HS76-2004 | 2 | 1.8 | 2 | 4.3 | 16.2 | 24 | 76 | 4 |
| 57HS76-2804 | 2 | 1.8 | 2.8 | 1.1 | 3.6 | 18 | 76 | 4 |
| 57HS76-3004 | 2 | 1.8 | 3 | 0.9 | 3.5 | 18 | 76 | 4 |
| 57HS82-1004 | 2 | 1.8 | 1 | 10 | 44 | 22 | 82 | 4 |
| 57HS82-3004 | 2 | 1.8 | 3 | 1.4 | 5 | 20 | 82 | 4 |
| 57HS82-4204 | 2 | 1.8 | 4.2 | 0.9 | 4 | 25 | 82 | 4 |
| 57HS93-3004 | 2 | 1.8 | 3 | 1 | 4.2 | 25 | 93 | 4 |
| 57HS100-3004 | 2 | 1.8 | 3 | 1.4 | 5.5 | 25 | 100 | 4 |
| 57HS100-3504 | 2 | 1.8 | 3.5 | 0.8 | 3 | 22 | 100 | 4 |
| 57HS112-3004 | 2 | 1.8 | 3 | 1.3 | 6.5 | 30 | 112 | 4 |
| 57HY51-1004 | 2 | 1.8 | 1 | 4.2 | 12 | 7 | 51 | 4 |
| 57HY56-1504 | 2 | 1.8 | 1.5 | 2.4 | 6.8 | 8.2 | 56 | 4 |
| 57HY76-3004 | 2 | 1.8 | 3 | 1.3 | 3.5 | 12 | 76 | 4 |
| 57HM41-1106 | 4 | 0.9 | 1.1 | 5.2 | 6.2 | 4 | 41 | 6 |
| 57HM51-1704 | 2 | 0.9 | 1.7 | 4 | 14 | 9 | 51 | 4 |
| 57HM56-3004 | 2 | 0.9 | 3 | 0.8 | 2.8 | 10 | 56 | 4 |
| 57HM64-4204 | 2 | 0.9 | 4.2 | 0.55 | 1.5 | 11 | 64 | 4 |
| 57HM76-2804 | 2 | 0.9 | 2.8 | 1.15 | 5.6 | 18 | 76 | 4 |
| 57HM76-3004 | 2 | 0.9 | 3 | 1.2 | 5 | 15 | 76 | 4 |

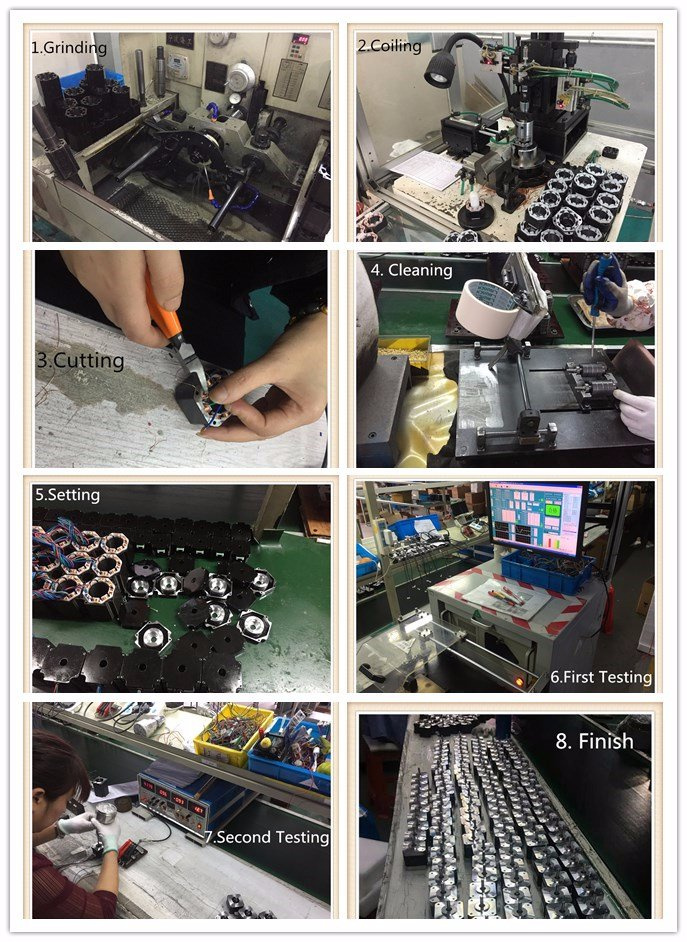

The process of assemble

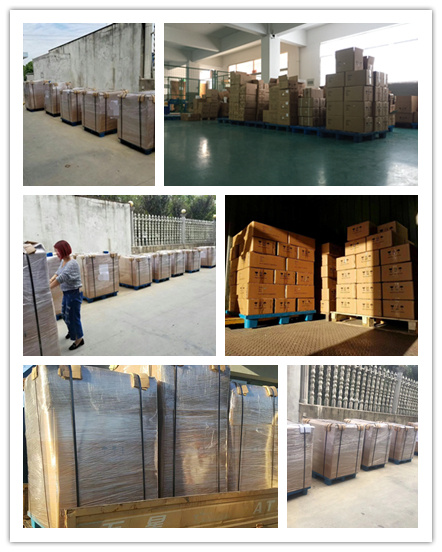

Our Package
Our Team
1.Q:Can I get some samples?
A:We are honored to offer you samples for quality check.
2.Q:Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A:It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
5.Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
