| Prod Model: |
LYD-SW17 |
| Connection Mode: |
Common Anode |
| Output Current: |
<4A/CH |
| Output: |
2 Channel |
| Net Weight: |
105g |
| Application: |
Audio / Video Players |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
<50m |
| Material: |
Plastic |
| Battery Type: |
AAA Battery |
| Voltage: |
DC12V~24V |
Product Description
Basic Info| Place of origin: | Guangdong, China (Mainland) |
| Output current: | 4A/CH |
| Working temperature: | -20~55ºC |
| Output power: | 12V:<96W, 24V:<192W |
| Net weight: | 105g |
| Output: | 2 channels |
| Connection mode: | Common anode |
| Type: | Remote Control |
Product DescriptionThis 4 zone 2.4G RF remote color temperature controller adopt the Touch color wheel and press button RF wireless remote control,can adjust to change the lights color temperature according to the customer's preference. 2.4G frequency make it more stable and more strong anti-jamming capability to use.
Besides, one remote can controlled 4 group of light independent,make it realize the one-to-many manipulation control.
Technical Parameters:Working temperature:-20~55ºC
Supply voltage:DC12V~24V
Output:2 Channel(2 channel are the same effect)
Connection mode:Common anode
Controller size:L152×W41×H28mm
Net weight:105g
Static power consumption:<1W
Output current:<4A/CH
Output power:12V:<96W, 24V:<192W
The Remote control parameter are as below table:| Item | Parameter | Remarks |
| Supply voltage | 3V | 2pcs AAA battery |
| Transmitting frequency | 2400-2483.5MHz | |
| Control Mode | GFSK | |
| Transmitting power | 6db | |
| Static power consumption | 10uA | |
| Remote distance | 20-30M | |
| External dimension | 110*55*20mm | |

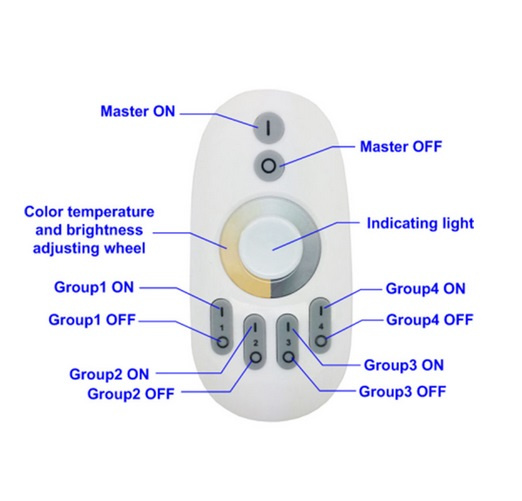

Direction for use:Function introduction:
1,Use the 2.4G frequency RF remote control, no need to make the remote direct to the controller,and the RF remote can controlled it across obstacles.
2,In the open area remote control distance is about 30 meters.
3,Adopt the press key and touch wheel control remote, slightly touch the color wheel can adjust the light's color temperature smoothly .
Operation method:1.Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
2.Only the power button is effective in the OFF station, press the power button for the first time then controller will enter to the last mode before turn of the controller last time (memory off function).

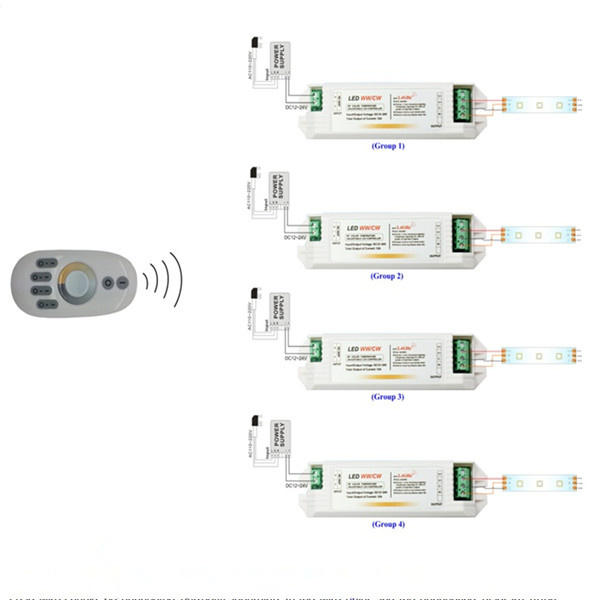

3,Group operate instruction: if there is A and B two piece controller receiver, first to Power the receiver A, then press the "Group 1 ON" button for five times then the led will be flash, this means receiver A is controlled by Group 1. Second to power the receiver B,press the "Group 2 ON" button for five times, than the led will be flash, this means the Receiver B is controlled by Group 2. When press the "Master ON button, Receiver A and B are turn on at the same time, press the "Master OFF" button, Receiver A andBare turn off at the same time , A and B receiver are changing the same when press the touch color wheel . IF you want to controller receiver A/B separately, please press the "Group 1 ON" button first, than you can adjust Receiver A brightness or turn ON/OFF receiver A . Meanwhile, Group 2/3/4 are the same.
Remarks: One remote can control 4 group of receiver at the same time ,each Group can be
including several receiver, such as 40 Receiver divided into four groups On average, the remote control can control 10 pieces receiver in each group , and achieve the synchronous effect .
Match code and clean code Instruction:For a new combination, the remote must to match code withe the receiver then it can be used normallyBefore match code, you must ensure the LED Controller, power supply and led light are connected correctly, then cut off the power ,and re-power it again.
Match code:Please press the "Group X(X=1,2,3,4) ON"Button for 5 times within 8 seconds after power the controller, then the output led light will be flash for 6 times, this means the remote is match code with this receiver successfully, they can used normally.
Clean code: if user want to change the light control group,he can clean the code off. After clean code the remote and receiver will be in the initial state. Operation method: Press the "Group X(X=1,2,3,4) OFF " Button for 5 times within 8 seconds when power the controller, till the output light flash for 6 times, means clean code successfully.
Remarks:The regular product for sale is a kit (one remote and 1 receiver). The user can re-programmed freely as needed. One remote can control countless receivers, but one receiver can only be controlled by two remotes max.
