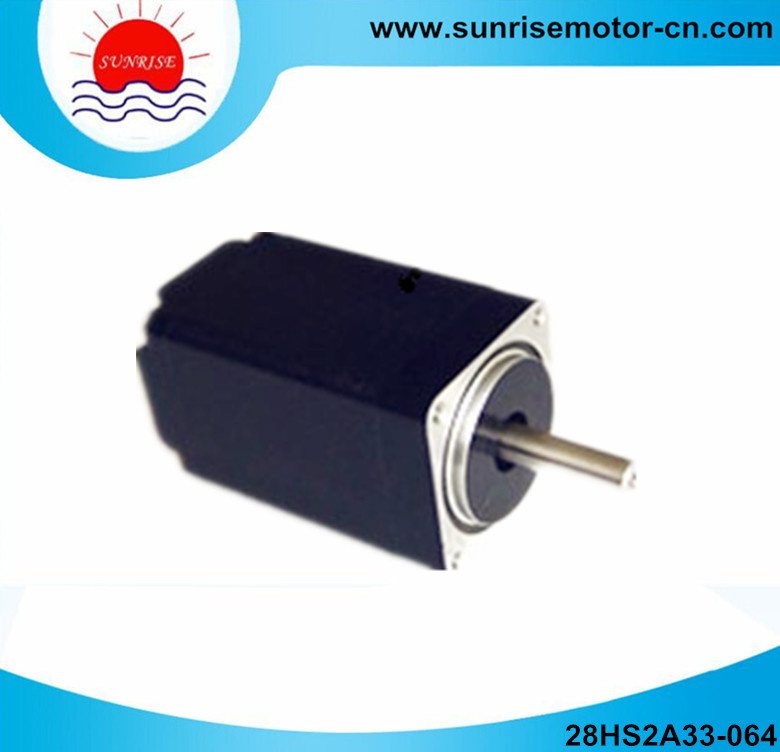

28hs2a33-064 1.8degree 2-Phase CNC Hybrid Stepping (stepper) Motor

Name: 28hs2a33-064 1.8degree 2-Phase CNC Hybrid Stepping (stepper) Motor
Brand: all-electronics-online.com
SKU: 726036085
Availability: InStock
Rating: 4.3 (104 reviews)

Price:	US $ 7.74-8.06/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	28HS2A33-064
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	28hs2a33-064
Holding Torque:	6n.Cm
Current:	0.6A
Resistance:	5.5ohms
Inductance:	3.2mh
Length:	33mm
Wire:	4
Weight:	110g
Type:	Electromechanical
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Brand:	Sunrise Motor
Operate Mode:	2 Phase
Certification:	SGS

Product Description

2 phase Hybrid Stepping motor 1.8 degree

Model: 28HS2A33-064
Holding torque: 6N. Cm,
Current: 0.6A
Resistance: 5.5ohms,
Inductance: 3.2mH
Length: 33mm
Wire: 4
Weigth: 110g,

Remark
Motor are available with different winding and mechanical modification to meet specific applications.

Model	Holding Torque (N@ cm± 10%)	Current/Phase(A)	Resistance/Phase (ohms± 10%)	Inductance/Phase (mH± 20%)	Detent Torque (N@ cm)	Rotor Inertia (g-cm 2 )	Length (mm)	Weight (g)
28HS2A28-064	4.5	0.6	4.2	2.2	0.3	6	28	105
28HS2A28-044	4.5	0.35	12	5.8	0.3	6	28	105
28HS2A33-064	6.0	0.6	5.5	3.2	0.4	8	33	110
28HS2A33-044	6.0	0.35	15	9.2	0.4	8	33	110
28HS2A41-064	6.0	0.6	7.0	6.0	0.5	11	41	140
28HS2A41-044	6.0	0.35	20	15	0.5	11	41	140
28HS2A50-064	10	0.6	9.0	7.2	0.8	13	50	180
28HS2A50-044	10	0.35	24	18.5	0.8	13	50	180

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
