2AWG Insualted Cable Green Earth Cable Electrical Cable

Name: 2AWG Insualted Cable Green Earth Cable Electrical Cable
Brand: all-electronics-online.com
SKU: 829909945
Availability: InStock
Rating: 4.4 (36 reviews)

Price:	US $ 0.9-1.5/Meter
Min Order:	500/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	THW TW
Color:	Red Yellow Green Blue Black White
Type:	Insulated
Conductor Type:	Stranded
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	CCC
Range Of Application:	Housing and Building
Brand:	Hongda
Sheath Material:	No Jacket
Application:	Housing and Building

Product Description

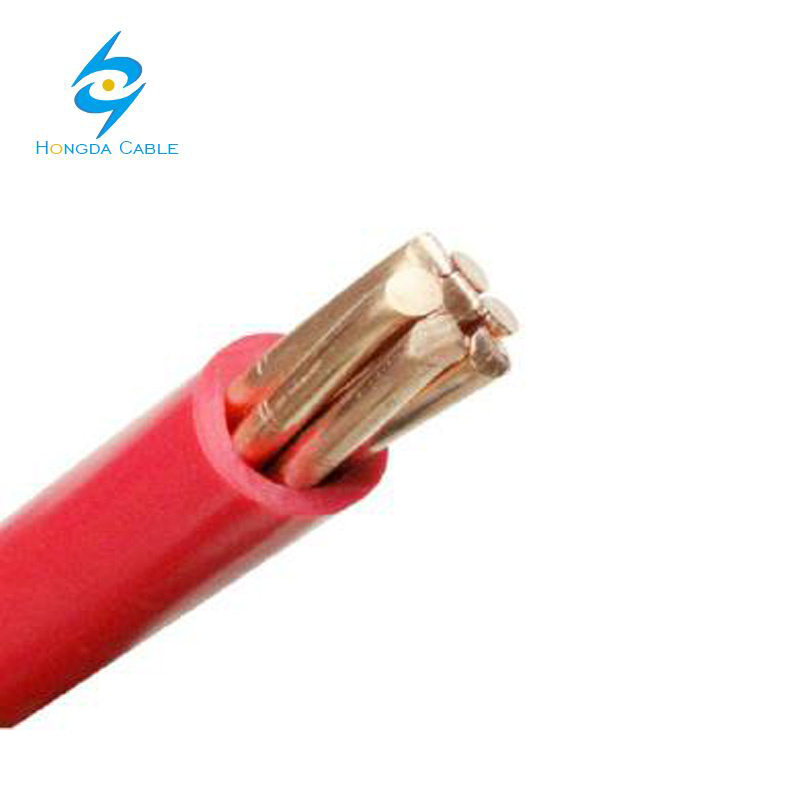

THW Cable 2AWG

Description

Soft copper conductor, PVC insulated.

Construction

Conductor: compressed strand soft copper

Insulation: Polyvinyl Chloride (PVC 75° C), flame retardant

Options

Available upon request, THW-LS (Low Smoke emission), THW-SR

(Sunlight Resistant) and with insulation Gasoline and Oil resistant

G&O (different types and grades of resistance to oil and gasoline)

Characteristics

Operating Temperature

Dry Locations 75° C.

Wet Locations 75° C

Operating Voltage 600 V.

Standards

ASTM B3, NTC 359. Soft copper wire.

ASTM B8, NTC 307. Concentric Lay Stranded copper conductors.

ASTM B787. 19 Wire Combination Unilay Stranded Copper conductors for subsequent insulation

UL 1581, NTC-3203. Reference Standard for Electrical Wires, Cables and Flexible Cords.

UL 83, NTC-1332. Thermoplastic insulated Wires and Cables.

Colors

Sizes 14 to 6 AWG: black, white, red, green, yellow, blue. Sizes 4 AWG and greater: black

THW Cable Packaging

Sizes 14 to 10 AWG: 100 m spools covered with plastic thermo pack, in corrugated carton boxes.

Sizes 8 and 6: 2000 m reels,

Sizes 4 to 4/0 AWG:1000 m reels.

Sizes 250 to 500 kcmil: 500 m reels.

Note: Other configurations, sizes, colors and length not specified herein are available upon request.

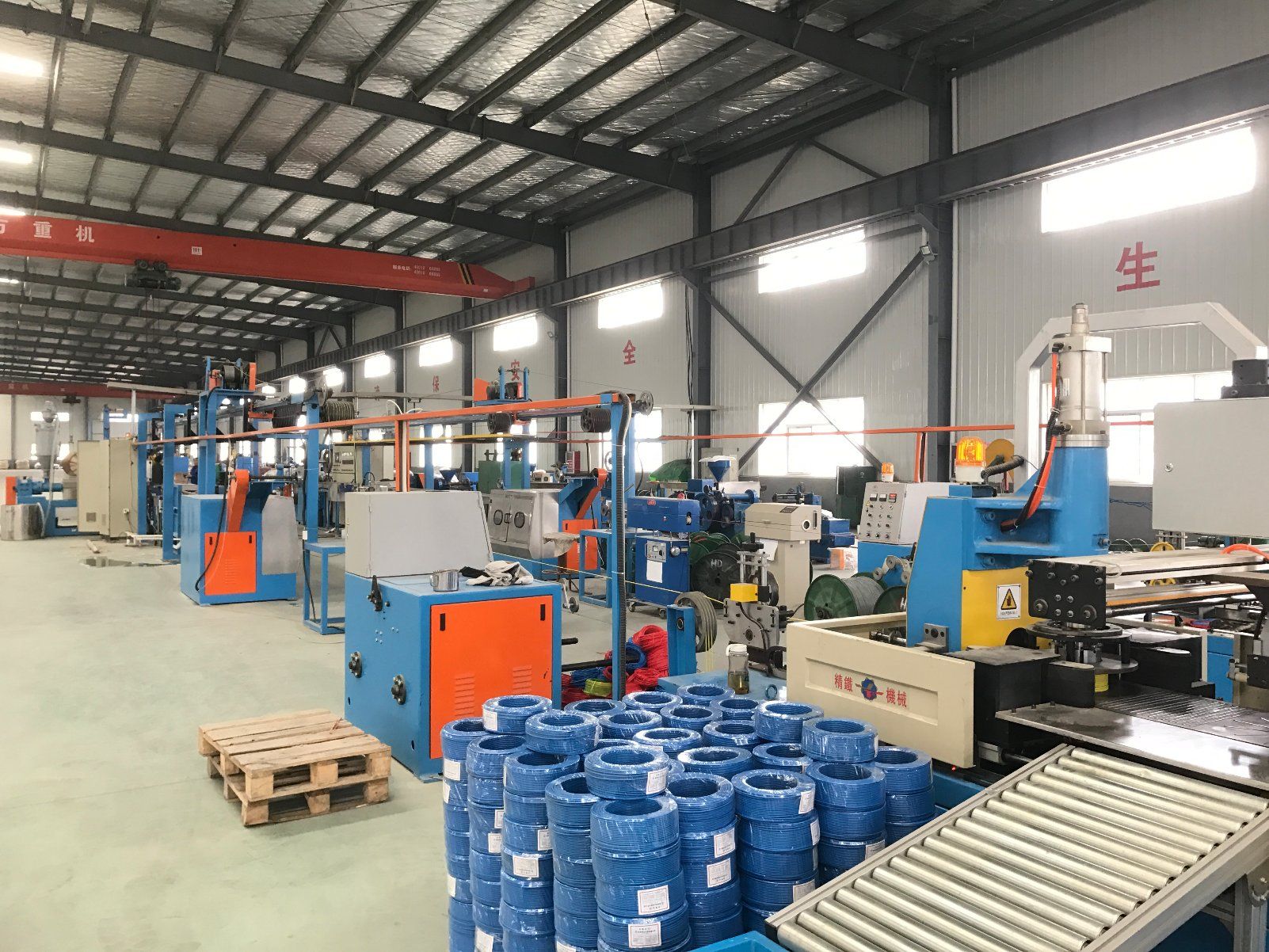

Henan Hongda Cable Co., Ltd. Located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Our company covers an area of 100, 000 square meters, including 50, 000 square meters of building area, and has more than 120 staff members and professional workers accounting for one third. Our fixed assets of 90, 000, 000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity.

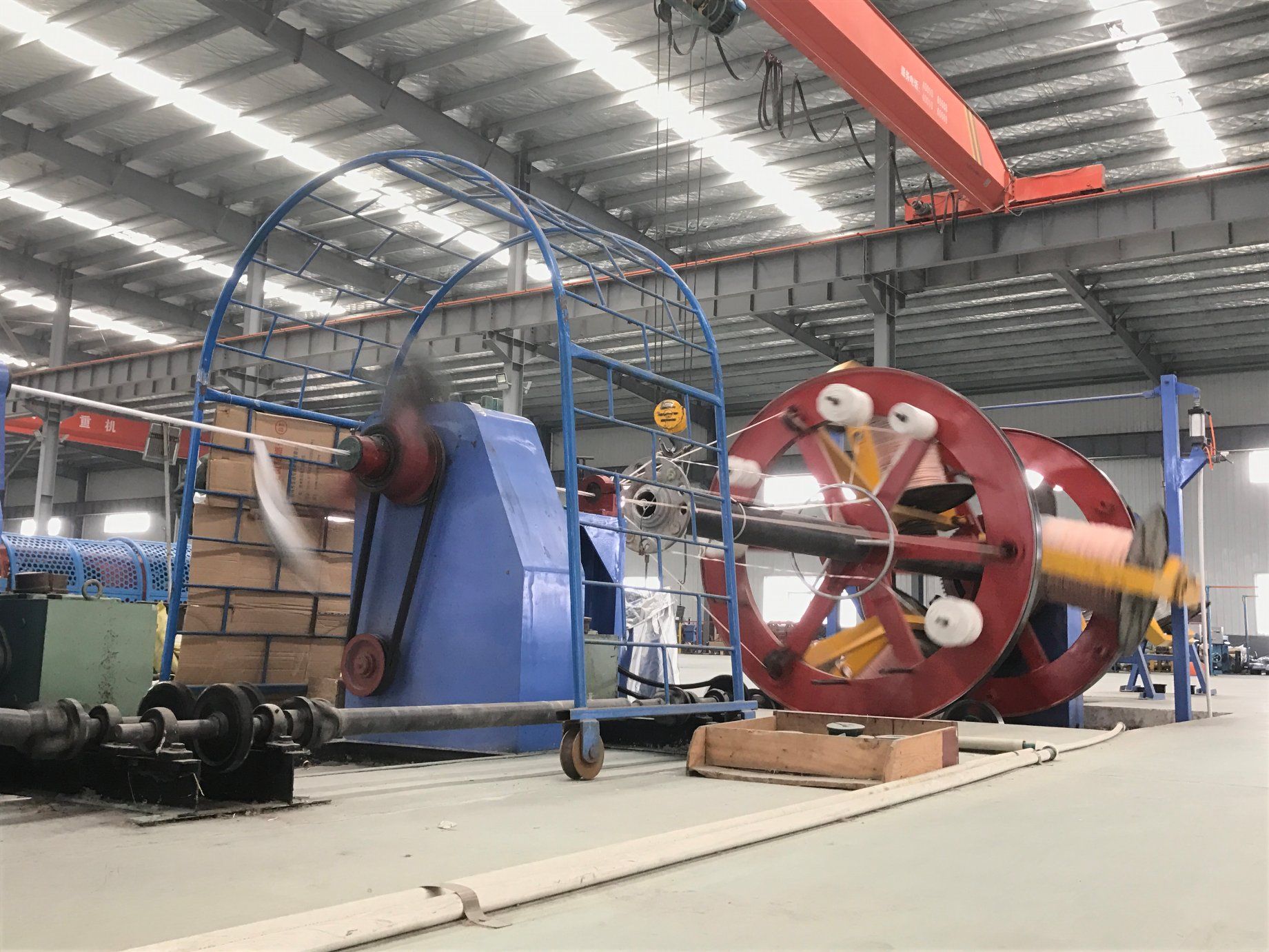

Henan Hongda Cable Co. Ltd. Is the original Zhengzhou Hongda Cable Co. Ltd. Established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products, We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 70 (sets) domestic and oversea-leading production and testing equipment.

Our company's products have passed the ISO9001 Quality Management System Certification, the products also passed China Compulsory Certification (3C certification).

Our company insists on the principle of "Taking high and new technology as guide and being based on modern management". Our products sell well all over the world and the main reason is that we attach great importance to business honesty. We sincerely hope to be your partner.
