2clg30kv/10mA Particle Accelerator Diode for Electrostatic Powder Coating, Electrostatic Flocking

Prod Model:	2CLG30KV/10mA
Tj:	-40oc~+120oc
Use:	Laser
Feature:	More Size Available
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	P-type Semiconductor
Package:	Through-Hole
Application:	Rectification
Model:	2clg30kv/10mA
Brand:	Leadsun

Product Description

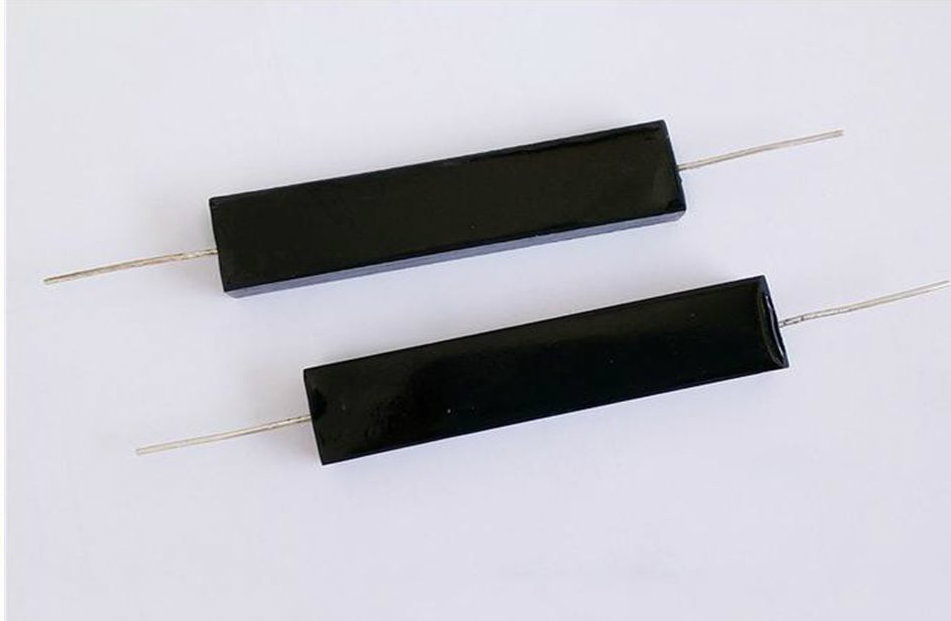

2CLG30KV/10mA particle accelerator diode for electrostatic powder coating, electrostatic flocking
Feature:
1. Avalanche characteristic
2. More size available
3. Vacuum molded, non-corrosive epoxy resin case
4. Tj: -40ºC~+120ºC
Application:
1. High voltage rectifier used in electrostatic cleaning
2. High voltage testing equipment
3. General purpose high voltage rectifier

Extreme(Absolute Maximum Rating)

Item	Symbol	Unit	Conditions	Voltage
Repetitive Peak Reverse Voltage	VRRM	KV	Ta=25ºC IR=1.0μA	30.0
Peak Working Reverse Voltage	VRWM	KV	Ta=25ºC IR=1.0μA	30.0
Non-Repetitive Peak Reverse Voltage	VRsM	KV	Ta=25ºC IR=1.0μA	33.0
Average Forward Current	IO	mA	Resistance load in oil@Tbreak=50ºC	10.0
Surge Forward Output Current	IFSM	A		0.5
Operating Ambient Temperature	Ta	ºC		-40~+120
Junction and Storage Temperature	Tstg	ºC		-40~+120

Electrical Characteristics (Ta=25ºC)

Forward Peak Voltage	VFM	V	@Ta=25ºC IF=3.0A	60
Peak Reverse Current	IRRM1	μA	@Ta=25ºC VRM=VRRM	5.0
	IRRM2	μA	@Ta=100ºC VRM=VRRM	50.0

Company & Services
· Leadsun focus on OEM,ODM and custom service, we have experienced engineers to supply the technical supports including design,operation, adjustment and failure analysis.
· Leadsun has Latest Standard product assembly series, including worldwide popular product series, and special customized series. There are Thousands of  Types and Models for your choosing
· Leadsun technical center record every order and product characteristics; sales department focus on market developmenttendency, will supply you Full Service.
· Leadsun take quality as foundation of success, we feel honored to supply customer requried products and customer success. We keep focusing on product Innovation and Development to stay ahead in the industry.
· Year 2014, Leadsun will move to new industrial center, new platform, new hope,dream starts here.
For more information,please contact me.

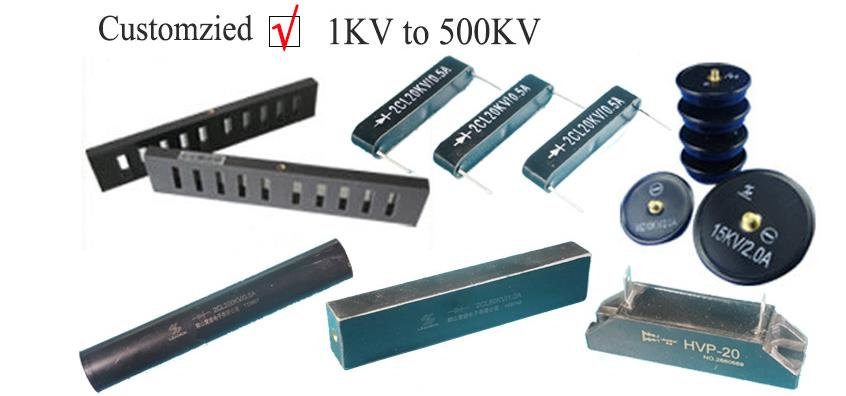

We can also customize the products as your need.
