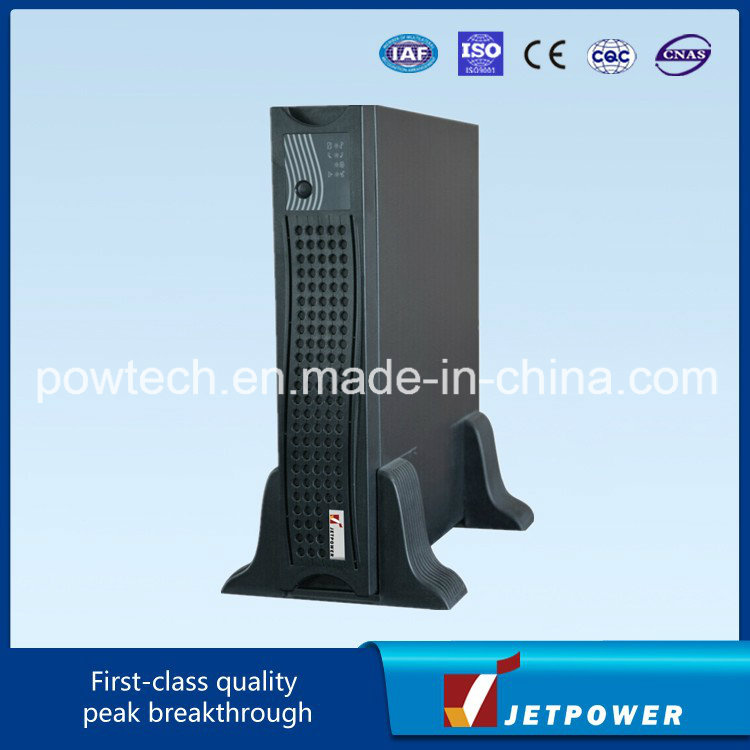

2kVA Line Interactive UPS Promotion/Panda Series
| Price: |
US $ 115/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
S-RT-2K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size(W*D*H,mm): |
415*430*89 |
| Weight(Kg): |
30 |
| Phase: |
Single Phase |
| Type: |
Line Interactive |
| Protection: |
Short Circuit |
| Brand: |
Jetpower |
Product Description
Main Features
Line-interactive design and square wave output
Microprocessor control guarantees high reliability
Built-in Boost and Buck AVR to stabilize input voltage
Generator compatible
User-replaceable hot swappable battery design & cold startup capability
Data line surge protection, USB and RS-232 communication port
19' Rack/Tower convertible
CE approval and FCC class B
Hot swappable battery
Technical Specifications
Panada series,1.1K-2K
Model |
1100VA |
1500VA |
2000VA |
Capacity (W) |
715W |
975W |
1300W |
Input |
Nominal voltage |
115/230VAC |
Voltage range |
+/-25% |
Frequency |
50/60Hz +/- 6Hz (automatic sense) |
Output |
Nominal voltage |
115/230VAC |
Voltage regulation |
+10% ~ -13% (AC mode); +/-8% (battery mode) |
Frequency regulation |
50/60HZ ±0.5% |
Overload |
105 +/-10% alarm; 140+/-10% for 2mintues then UPS shutdown (AC mode);
105 +/-10% for 20seconds then UPS shutdown; 140+/-10% UPS immediately shutdown (Battery mode); |
Waveform |
Step sine wave |
Transfer Time(ms) |
≤10ms |
Battery |
Type |
VRLA |
Voltage |
24Vdc |
Backup time |
10~25 minutes (depends on load) |
Recharge time |
6hrs recharge to 90% |
Data line surge suppression |
1482 Joules (115V type); 476 Joules (230V type) |
TEL/FAX surge suppression |
Joules |
114 Joules |
Type |
RJ11 (one pair), 2C |
Networking Surge |
Performance |
Up to 100Base-T |
Type |
RJ45 (one pair), 2C |
Status LEDs |
Line Normal, Battery Backup, Boost, Buck, Battery Replacement, Fault, Overload, Load capacity/Battery capacity |
Audible alarm |
Battery backup, battery backup over 30minutes, battery low, overload, fault |
Communication Interface |
USB, RS-232 |
Ambient |
Temperature |
0 ~ 40ºC |
Humidity |
10~95%, no condensation |
Altitude |
3000m |
Safety & EMC |
CE, TUV, FCC |
Physical |
SIZE(W×D×H, mm) |
415 * 430 * 89 |
Weight (kg) (w batt.) |
20.4kg |
26kg |
30kg |
