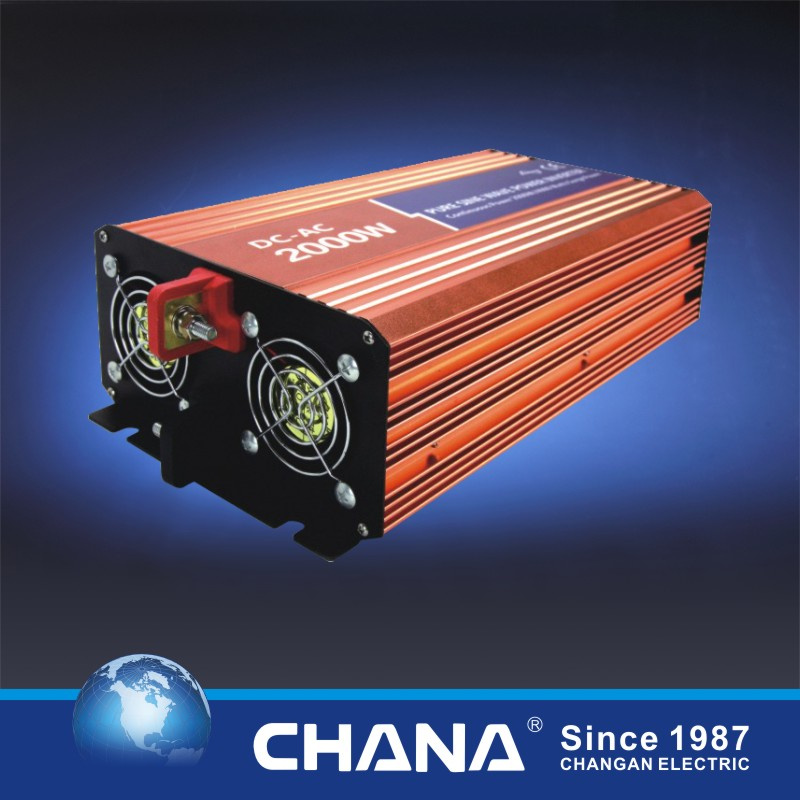

2kw DC to AC Pure Shine Wave Inverter

Name: 2kw DC to AC Pure Shine Wave Inverter
Brand: all-electronics-online.com
SKU: 826014895
Availability: InStock
Rating: 4.8 (112 reviews)

Price:	US $ 200-500/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	B12P2000-1
MPPT Efficiency:	>97%
Peak Power:	4000W
USB:	5V 1A
Warranty:	Two Years
Net Weight:	4.2kg

Product Description

Technical Data

Machine Model	B12P2000-1	B24P2000-1	B48P2000-1	B12P2000-2	B24P2000-2	B48P2000-2
Output power	2000W
Peak power	4000W
Input Voltage	DC12V	DC24V	DC48V	DC12V	DC24V	DC48V
Output Voltage	100VAC or 110VAC or 120VAC± 5%			220VAC or 230VAC or 240VAC± 5%
No-load current(<))	1.2A	0.5A	0.2A	1.2A	0.5A	0.2A
Output frequency	50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform	Pure sine wave
Wavefor distortion	THD<3% (Liner load)
USB	5V 1A
Output efficiency	A maximum of 94%
Input voltage range	10~15.5V	20~31V	40~61V	10~15.5V	20~31V	40~61V
Undervoltage alarm	10.5±0.5V	21±0.5V	42±1V	10±0.5V	21±0.5V	42±1V
Undervoltage protection	10±0.5V	20±0.5V	40±1V	10±0.5V	20±0.5V	40±1V
Overvoltage protection	15.5±0.5V	31±0.5V	61±1V	15.5±0.5V	31±0.5V	61±1V
Voltage recovery	13±0.5V	24±0.5V	48±1V	13±0.5V	24±0.5V	48±1V
Overvoltage recovery	14.8V±0.5V	29.5V±0.5V	59V±1V	14.8V±0.5V	29.5V±0.5V	59V±0.5V
Protection function	undervoltage/overvoltage		Led red light.alarm,automatic recovery
	overload		Led red light.alarm,lock
	over-temperature		Led red light.alarm,automatic recovery
	short-circuit		Led red light.alarm,automatic recovery
	input reverse		Diodes or MOS transistor
Operating ambient temperature	10ºC~+60ºC
Storage ambient temperature	30ºC~+70ºC
Product size(mm)	30516986
Net weight(KG)	4.2
QTY/CNT	4 Pieces
Package size(mm)	430430320
Warranty	One year
Start	Bipolar soft-start
Cooling	Temperature controlled Fan
