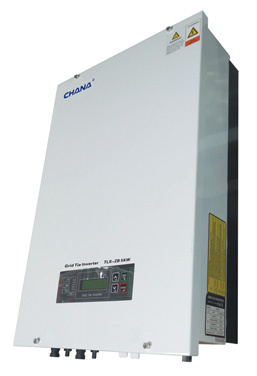

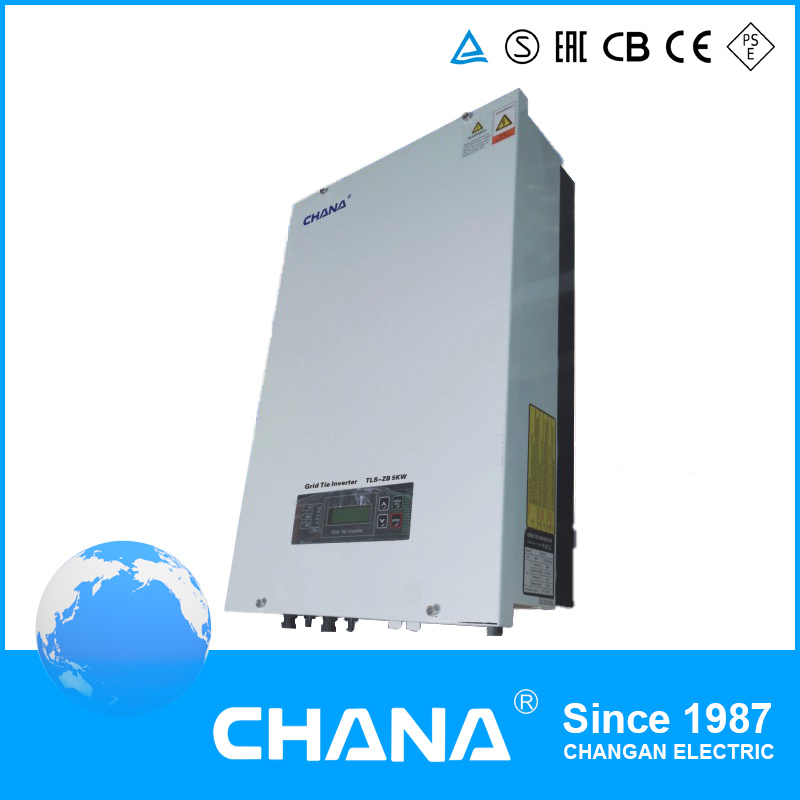

| Prod Model: |
TLS5KTS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Protection Degree: |
IP65 |
| Display: |
LCD |
| Cooling Method: |
Natural Cooling |
| Phase Numbers: |
Single Phase |
| Application: |
Home Theater |
Product Description
Application of Grid tie inverter:
TLS KTS Series photovoltaic grid-connected inverter power from 1kw to 300kw range, to meet
Varioustypes of PV modules and grid interconnection requirements, are widely used in domestic
And foreign commercial, residential photovoltaic power plants. Until 2012, TLS KTS the Series of
PV inverters installed worldwide has more than 3.0GW, used in Germany, Italy, Spain, United states,
Australia and more than a dozen countries and regions.
Besides, string type photovoltaic inverter power from 1kw to 50kw; Conversion efficiency as high
As 97%; Single/dual maximum efficiency tracking, outdoor IP54/IP65 protection design; Suitable for
Residential, small and medium-sized power plant project, with the installation ofthe products of
Simple, generating power and operation stably.
Summarize for the grid tie inverter
The grid connected inverter can be used with a connection to grid or power lines. This type supplies the loading appliances with electric power produced by photovoltaic systems.
The advantage of grid-type is not to worry any power waste, because by connecting inverter to grid, it can save any surplus electricity.

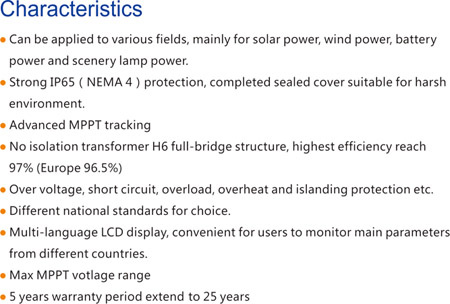

Features of grid tie inverter
*Wide DC input voltage range
*DSP controller
*High efficiency by using advanced IGBT and IPM
*MPPT(Maximum power point tracking) technology
*Transformer less, High efficiency
*In accordance with international standards
*Quick and easy installation
*Operation parameters can be adjusted via LCD and keys
*The perfect protection function
*Designed to suitable for critical grid environment
| MODEL | TLS5KTS | TLS6KTS | TLS7KTS | TLS8KTS |
DC INPUT
MPPTVOLTAGE RANGE: DC100-500V
RATED DC VOLTAGE RANGE: 360V
CONTROL SYSTEM: MPPT
START VOLTAGE: WIND ENERGY SYSTEMS DC100V, SOLAR POWER SYSTEM DC180V
AC OUTPUT
| Rated Voltage | AC220V |
| Normal Grid Frequency | 50/60hz(can be set) |
| Phase Number | Single phase |
| Power factor | 0.95 |
| Max efficiency | 97% |
| Current THD | <3.5% |
| Euro Efficiency | 96.4% |
STRUCTURE:
| Protection Degree | IP20/NEMA4X |
| Cooling Method | natural cooling |
| Noise | 50db |
| Data interfaces | External Rs232C |
| WXHXD | 560X420X165 |
| WEIGHT | 28 |
| WEB MODULE | RS232C TO TCP/IP |
| Display | LCD |
How to Order?1. Let us have the details of your requirements.
2. Price-list will be sent for confirmation.
3. After prices confirmed,PI will be sent for payment.
4. After get your Deposit,production will be arranged within one day.
5. When goods ready,all the documents for custom clearance will be scanned to you for the balance payment.
6. OEM/ODM is acceptable
Shipping:1. Normally by SEA From NINGBO TO ...
2. Products are shipped via UPS / DHL / FedEx / TNT and so on expresses (door to door) If the amount is Small.
3. We Provide Drop shipping Service.
4. In order to ensure you receive your order tax free upon import, we can declare lower value according to your demand.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Payment:1. We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2.If the Amount is small,you can pay to us by western union/Paypal/Money Gram.
3. L/C also acceptable
Warranty:1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
Welcome to inquire, negotiate, we will be happy to provide you with the best quality products and personalized service!

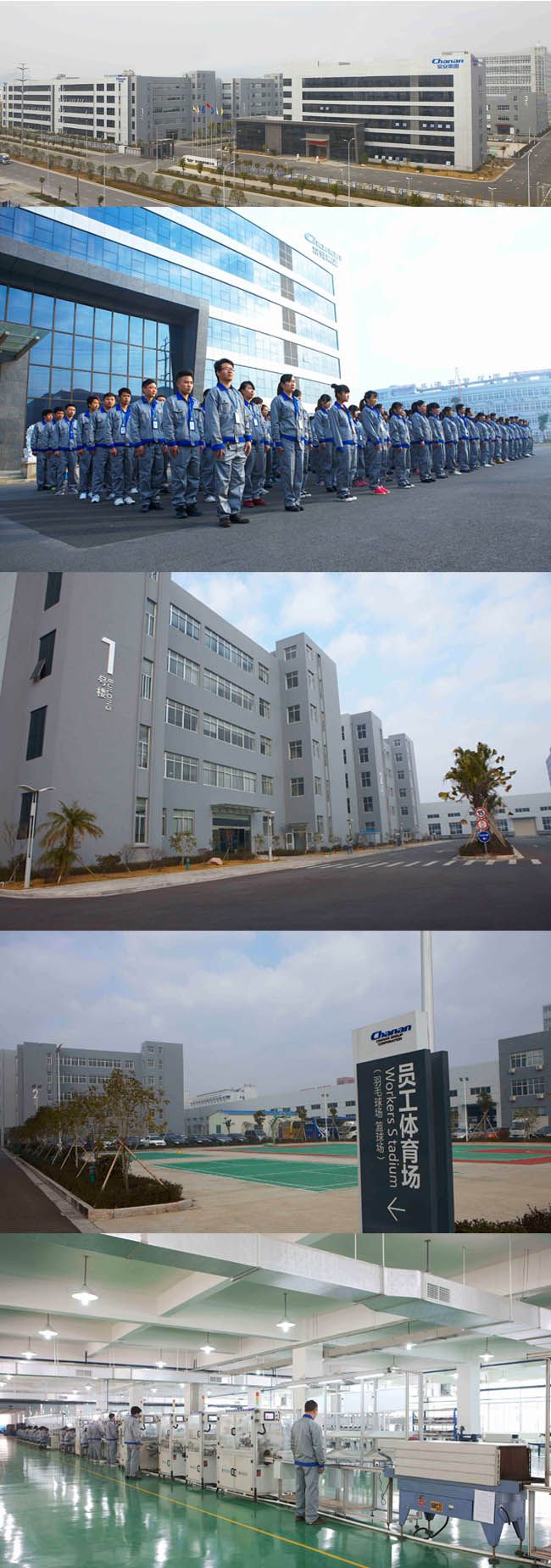

Company Profile:Changan Group Co., Ltd,Establised in 1987,Comprising more than 62 factories with over 2500 employees and the whole corporaion occupies 82000m2 ground during past 30years.we manufacture and export varieties of low voltage electrical appliance including all kinds of Circuit Breaker,Contactor,Relay,Switch,Solar Inverter etc..
1. We already get the certificate of ISO9001, CE, SGS.CB for most of our products.
2. We have 30 years of manufacture and 20 years exporting experience.
3. We have completely sales service system, ensure every detail is going smooth.
4. We have new designed products each year by our R&D Department.
5. Perfect testing system ensure each product is qualified.
6. We have a good reputation in Russia,Turkey,Europe,south america,Mid-east and Africa Market.
Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.
Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.
We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.
All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".
We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
