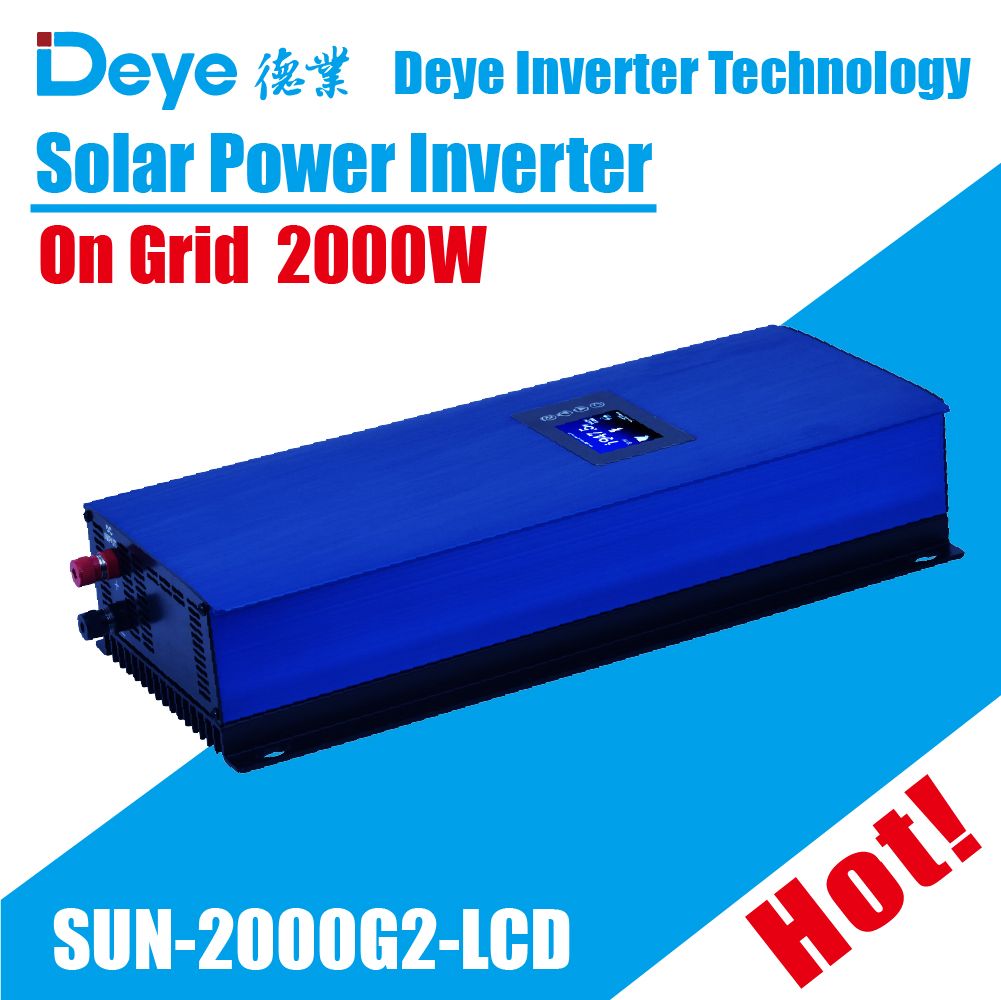

| Prod Model: |
SUN-2000G2-LCD |
Product Description
Specification of the Inverter:| nput Data |
| Input Voltage Range | 45-90vdc |
| Max input DC voltage | 90V |
| Peak power tracking voltage | 50-90V |
| Output Data |
| Max output power | 2000W |
| Nominal Voltage | 110vac/230vac |
| Nominal Voltage Range | 115V/95V-130V |
| Frequency Range | 47.5-51.5 for 50hz,59.3-60.5 for 60hz |
| Power Factor | >0.99 |
| Output Waveform | Pure sine wave |
| Characteristic Data |
| MPPT Efficiency | 99% |
| Over current protection | yes |
| Over temperature protection | yes |
| Reverse polarity protection | yes |
| Anti-island protection | yes |
| Stackable | Just for AC output |
| Operating temperature range | -20 0C ~ +50 0C |
| Inverter inside temperature | -20 0C ~ +85 0C |
| Current THD | <5% |
| Voltage THD | <5% |
| Standard | UL1741,IEEE1547,VDE4105 |
| Cooling | Fans |
| Peak Inverter Efficiency | >92% |
| Warranty | 2 years |
Introduction of Sunshine Grid Tie Inverter(solar power grid inverter)
Sunshine Grid Tie Power Inverter is the world's most technologically advanced inverter for use in utility-interactive applications. This manual details the safe installation and operation of the Sunshine Grid Tie Inverter.
This integrated system maximizes energy harvest, increases system reliability, and implifies design, installation and management.
The small type solar grid tie power inverter can obtain the solar energy from solar panel, and can tie to the grid through its output cables with no extra equipment. The installation is very convenient and reliable.
We call the system combining with small solar grid tie inverter and solar panels as 'SGPV'. The system includes solar panels and small type grid tie inverter and installation kit. Solar panels can be mono silicon, polygon silicon, non-crystal film or any other material that can transform
solar energy to electric energy. The power of grid tie inverter should be matched to the power of solar panels connected. So the power of SGPV is defined by its solar panels, it can be standardization according to the actual using.
The inverter can be connected to any outlets of utility grid at house. The small grid tie inverter monitors the volume, frequency and phase of the home utility grid, then produce pure sine wave AC power that the frequency and phase are as same as the grid's, and the volume is a bit higher than the grid's, then according to the current controlled PWM, to control the output power to the grid. The small grid tie inverter just puts out power when the home grid is on.
When the sun shines, the PV panel will produces DC voltage, and the grid tie inverter will change the DC voltage to AC voltage and puts out power to the home grid. When the total power of electric apparatus that are using in the house is larger than the output power of the inverters, these power from the inverters will be consumed in the house, this will slow down the power meter, otherwise, the difference of the output power of the inverter between the total used power of the apparatus will go out from the house to the out grid.
Ningbo Deye Inverter Technology Co., Ltd. Which predecessor is Sunshine Technology (China)Co., Ltd. is a professional High-Tech company developing, producing and marketing Solar related products including Grid tie inverter, Off grid inverter, MPPT solar charge controller etc. Our company has got the national software enterprise certification. We own provincial engineering technology center. We have one of the most experienced reserch team who are experienced in development of solar related products. We have a remarkable power of technology, which has reached the national and international level. In recent years, in the field of solar inverter, we invested an huge amount of energy in developing and popularizing, we have established solid symbiosis with a couple of industry-leading enterprises including Texas Instruments, the biggest semiconductor manufacturer in the world. Deye group now own a 120 thousand square meters of development and production base and high presision automatic equipment. With a determined will to be better, a sustained innovation, and the pursuing of outstanding, we sincerely look forward to your partnership to make a better future.
