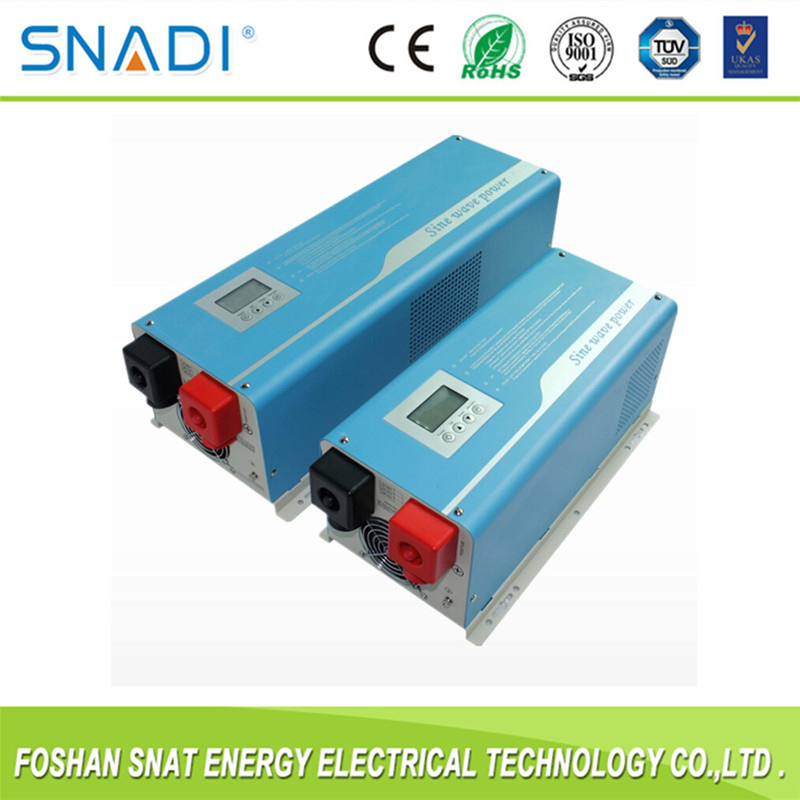

2kw Pure Sine Wave Solar Power Inverter 12VDC to 220VAC with Toroidal Transformer

Name: 2kw Pure Sine Wave Solar Power Inverter 12VDC to 220VAC with Toroidal Transformer
Brand: all-electronics-online.com
SKU: 804751255
Availability: InStock
Rating: 4.7 (115 reviews)

Price:	US $ 200-300/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FT-2000W
Name:	Inverter 12V 220V
Rated Power:	2000W
Frequency:	45-65Hz
Output Waveform:	Pure Sine Wave
Conversion Time:	<10ms
Efficiency:	>85%
Phase:	Single
Power Source:	Solar Power
Application:	Commercial Industry
Snat/OEM/ODM:	Accept

Product Description

2KW 12VDC to 220VAC Pure Sine Wave Solar Power Inverter with toroidal transformer

Product overview:
This Inverter 12v 220v with or double MCUs,the product provides different charge voltages and charge currents to realize charge management for batteries of different types.Its mains supply preferred mode,energy-saving mode and battery preferred mode are all settable,thus making it easy to meet the different application needs of users. It has an LCD.It is widely applied to families,schools,streets,frontier defense,pasturing areas,industrial equipment,satellite communication equipment ,military vehicle-borne equipment ,ambulances,police cars,ships,etc.

Main features:
   * Excellent performance because of double-MCU intelligent design
   * Pure sine wave output for compatibility with loads of different types
   * Visualization of operation status of the equipment through a digital LCD
   *A wide range of input voltage,accurate output and full automatic voltage stabilization
   * Settable battery type and charge current for the charge management of batteries of different types
  * Settable mains supply preferred mode,energy-saving mode and battery preferred mode for easy meeting of the needs of different users
  *Overall protection function(battery overvoltage protection,battery undervoltage protection,overload protection,short circuit protection and overtemperature protection)

Technical Indexes:

Model		FT-2000W
Rated power		2000W
Battery	Rated voltage	24VDC/48VDC
	Charge current	30A(default)-C0-C6
	Battery type	U0-U7
Input	Voltage	85-138VAC/170-275VAC
Input	Frequency	45-65HZ
Output	Voltage	50/60Hz(inversion mode)
	Frequency	110VAC/220VAC(inversion mode)
	Output waveform	Pure sine wave
	Conversion time	<10ms(typical load)
	Efficiency	>85%(80% resistive load)
	Oveload	110-120%/30S;>160%/300ms
	protection function	Battery overvoltage protection,battery undervoltage protection,overload protection,short circuit protection, overtemperature protection,etc
Ambient temperature for operation		0-40ºC
Ambient temperature for storage		-15-+50ºC
Operation/storage conditions		0-90%(no condensation)

2KW Pure Sine Wave Solar Power Inverter 12VDC to 220VAC with toroidal transformer

Advantage:
1.This power inverter is with toroidal transformer inside,which have high efficiency,low weight to save the shipping cost,no-load power consumption is lower than other inverters with different transformer.
2.The battery preferred mode,mains preferred mode and energy-saving mode can be settable by customers,which give more good experience to consumers.

FAQ:

Q1 :What is the warranty of your product?

A:Quality warranty for 12 months; parts will be shipped free during warranty period.

Q2:Can you do OEM?
A:Yes,we can offer OEM service.

Q3 :How long is your lead time?

A:5~10 days

Q4: What minimum order do you require?

A:1 piece

Q5 :Why choose us?

1)All of our products have CE certification,ISO9001:2008,RoHS.
2)We have our own factory,the selling prices is competitive.
3)Prompt delivery and good after-sale services.
4)80% new materials for production and superior quality.
5)professional engineer designers.
