2p 3p 4p AC 50Hz M8 Series MCCB 160A
| Price: |
US $ 12/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
M8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Poles: |
3p /4p |
| Voltage: |
400V-690V |
| Current: |
6A-1250A |
| Ambient Temperature: |
-5~+40 |
| Maximum Salant: |
22.5 |
| Colour: |
Black |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCCB |
| Poles Number: |
3 |
| Certification: |
CCC |
Product Description
Application

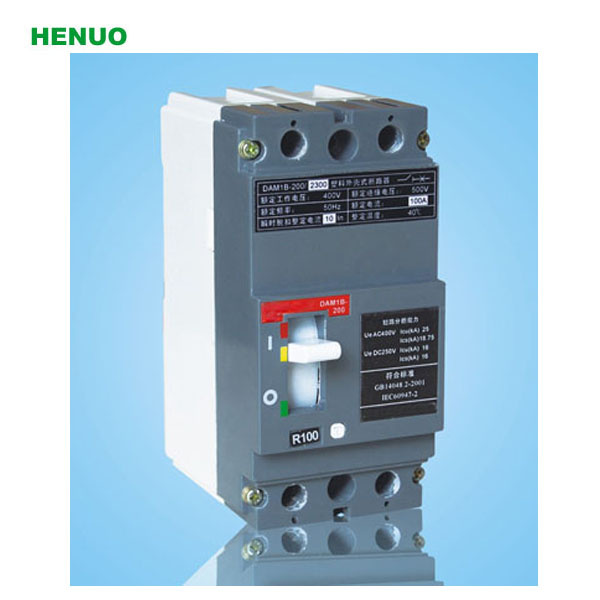

M8 series Mouded case circuit breaker is one of new type breakers which this company adopts international advanced design, manufacture technology to develop, the rated insulating voltage is 750V, suitable for AC 50Hz(60Hz), rated working voltage 690V or below,rated working current is 12.5 to 1250A of circuit and use in distributing electric energy. Nonfrequent making and breaking in the normal conditions and protecting when circuit and installation are overload, short circuit and under voltage. Rated shell-rack and the breaker which current is under 400A, take protect effect when mousecage motor is non frequent start, breaking off working and protecting overload, short circuit and under voltage.
Classification of MCCB
Installation type of MCCB: MCCB are suitable for vertical or harizontal installation.
According to use of MCCB: distribution circuit protection type, motor protection type;
According to connection way : front panel connection, back panel connection, plug-in connection;
According to operation way: for direct handle operation, for external rotary handle operating, for motor operating;
According to overload release type: magnetic release (only instantaneous), the modynamic magnetic type (dual), electronical release;
According to number of poles: two poles, there poles, four poles.
The neutral poles (N poles) of four poles MCCB has for types:
Type A: no overload release on N pole, which is making at the time ; not closing and openingwith the other three poles.
Type B: no overload release on N pole, which closing and opening with the other three poles.
Type C: with overload release on N pole, which closing and opening with the other three poles.
Type D: with overload release on N pole, which making all time; not closing and opening withthe other three poles breaking capacity
type L-highest breaking capacity type

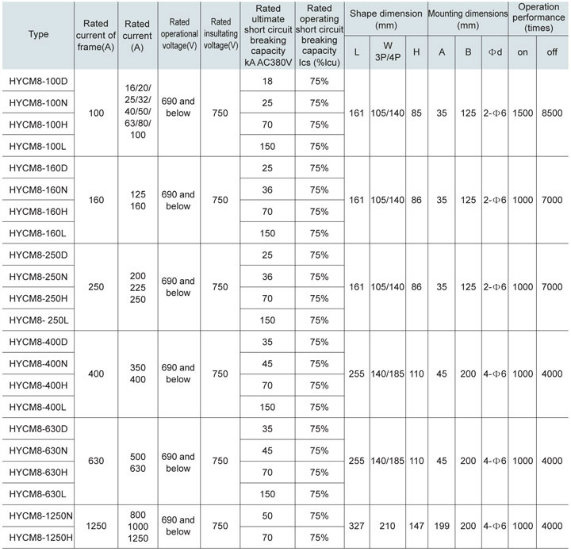

Main technical specifications

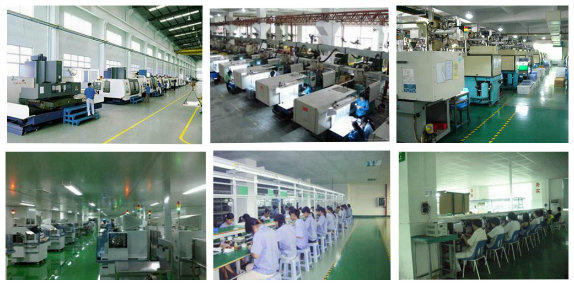

Yueqing Heng Nuo Imp. & Exp. Co., Ltd. is the export department for TENGEN GROUP Co., Ltd, it is one leading manufacturer and exporter in the fields of electrical apparatus, wiring accessories, hardware, fire alarm system, tools and so on, our company located in Liushi town of Wenzhou city where is the largest production centre in China for electrical products.
From 1983 to now, our company has cooperated with more than 80 factories, and produces over 20 kinds, thousands of models of high quality electric products yearly. Mainly including:
1. Electrical apparatus: Circuit breaker, AC contactor, Relay, fuse, timer, counter, distribution box, meter socket, current transformer, meter, pushbutton switch, LED pilot lamp, limit switch, pedal switch, float switch, industrial plug & socket, Stabilizer and so on.
2. Wiring accessories: Cable tie, cable clip, cable puller, cable marker, cable lugs, cable glands, terminal blocks, wiring ducts, insulated terminals, MCB insulated busbar, dinrail and so on.
3. Hardware: Flexible conduit & connector, EMT fittings, Metal switch boxes and so on.
4. Tools: Hand crimping tools, cable cutter, hydraulic crimping tool, tester, screwdriver and so on
5. Fire alarm and warning system: Fire alarm bell, electric bell, smoke detector, motor siren, buzzer, warning light and so on
Internationalization standard quality guarantee system:
The product quality of Tengen Group has been strictly controlled in each working procedure,
Many kinds of internationalization standard quality guaranteed system can be highly effective
Under company's strict monitoring. Fellowtrader commended, customer's approval can sufficiently
Make sure of our product quality.
"Tengen" was evaluated as " Chinese famous trademark", Tengen Group has obtained American
FMRC Corporation ISO9001 quality system authentication, ISO14001 environment management
System authentication, CCC authentication, European Union CE safe Authentication, American UL
Authentication and Dutch KEMA authentication and so on, at the same time, it has had the first
Side laboratory -- low voltage electric appliance test center which is the first connected with
International in China.
We promise to offer you superior products, favorable price, and timely delivery. If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
