2u Height Line Interactive 1000va UPS Power Supply
| Price: |
US $ 60-100/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
S-1000S |
| Outlook: |
19''/2u |
| Capacity: |
1000va/700W |
| Wave Form: |
Pure Sine Wave |
| Design Type: |
Line Interactive |
| Input/Output Voltage: |
115 or 230VAC |
| Battery Voltage: |
24VDC |
| Battery: |
12V7ah*2 |
| AVR Function: |
Boost, Buck |
| Weight: |
280*430*89mm/12,4kg |
| Phase: |
Single Phase |
| Type: |
Line Interactive |
| Protection: |
Overcurrent |
| Brand: |
Jetpower |
Product Description

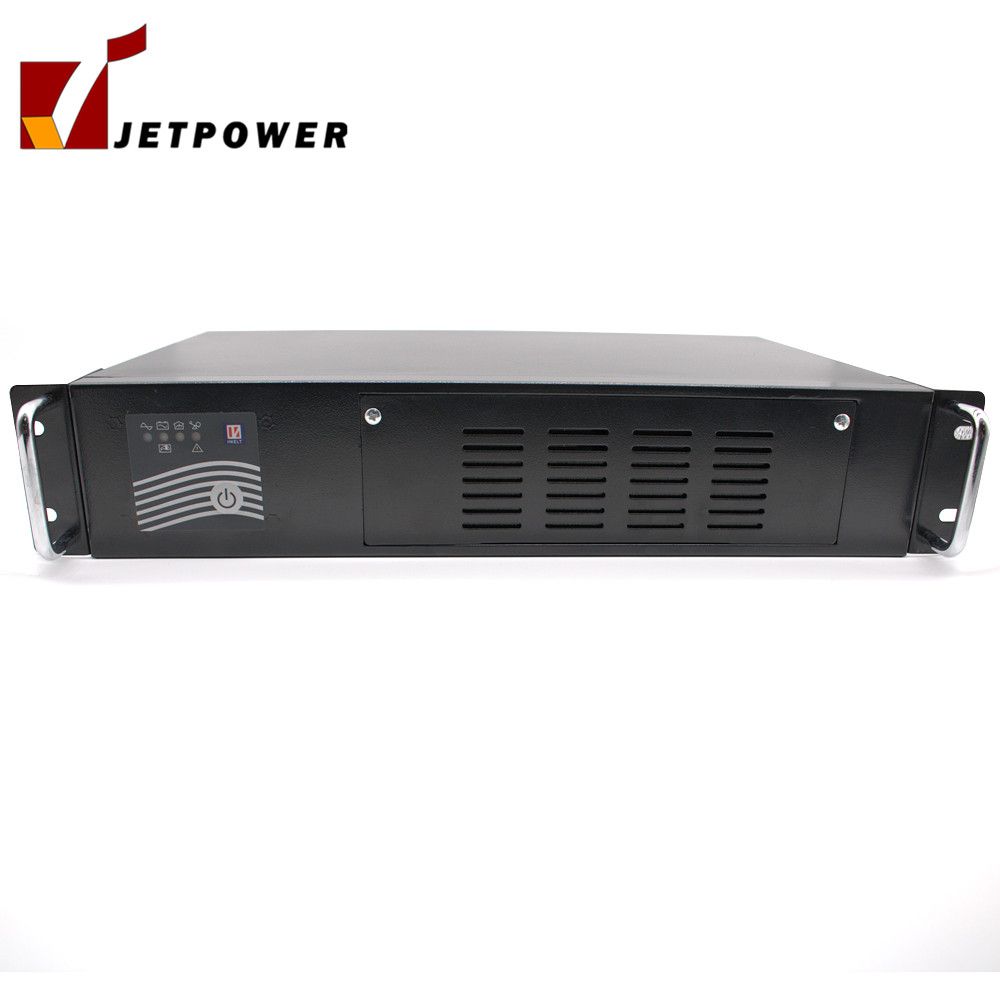

Line interactive true sine wave output rackmount UPS
Snapshots
Model: S-1000S
Capacity: 1000VA/700W
Height: 2U
Battery: 12V7AH*2pcs, DC=24V
Product Feactures:
1) Compact 1U or 2U design (1U for 500 ~800VA, 2U for 600~1000VA)
2) Provides line-interactive design and true sine wave output
3) Microprocessor control guarantees high reliability
4) Built-in Boost and Buck AVR to stabilize input voltage
5) User-Replaceable hot swappable battery design & cold startup capability
6) Enable to extend runtime with scalable external battery pack (inbuilt 10A battery charger)
7) Fully protection for overload, short-circuit, overheat and battery over discharge protection
8) RS232 /USB communication port
9) SNMP Card SLOT availableSpecifications for Seagull series UPS(500va-1000va)| Model | S-600S | S-600L | S-1000S | S-1000L | S-500S | S-800S |
| Capacity(VA/) | 600VA /420W | 600VA /420W | 1000VA /700W | 1000VA /700W | 500VA /300W | 800VA /500W |
| Overview |
| Surge Protection Only | 600VA | 600VA | 1000VA | 1000VA | 500VA | 800VA |
| Outlook | 19"/2U | 19"/2U | 19"/2U | 19"/2U | 19"/1U | 19"/1U |
| Design Type | Line Interactive |
| Waveform | Pure Sine Wave |
| AVR Function | Boost, Buck |
| Input |
| Nominal Voltage | 115 or 230Vac |
| Voltage Range | 72~144V/145~275V |
| Frequency Range | 60Hz-->115V/50Hz-->230V±6Hz |
| Power Line Surge | 1482/476 Joules | 1482/320 Joules |
| Socket Type | Power Cord+C.B->115V |
| Inlet Socket+C.B->230V |
| Output |
| Nominal Voltage | 115/230Vac |
| Voltage Range (AC Mode) | 100~127V/200~253V (+10~-13%) |
| Voltage Range (Batt. Mode) | 115/230V±6% |
| Frequency Stability | 50/60Hz ± 0.5% |
| Socket Q'ty (Backup+Surge) | (NEMA/IEC)*4 |
| Transfer Time | < 4ms (Typical) |
| Overload Protection |
| AC Mode | 100%~120% 1min S/D |
| Batt Mode | 100%~ 120%->25Sec S/D, >120%->immed UPS Off. |
| Battery |
| Battery voltage | 12VDC | 12VDC | 24VDC | 24VDC | 12VDC | 12VDC |
| Battery Capacity | 12V/7AH*1 | NA | 12V/7AH*2 | NA | 6V/7AH*2 | 6V/9AH*2 |
| External Battery | No | Yes | No | Yes | No | No |
| DC Cold Start | Yes |
| Built-In Charger | 1A Max. | 6~10A Max. | 1A Max. | 6~10A Max. | 1A Max. |
| Charger Over Protection | Yes |
| Charging When UPS off | Yes |
| Microprocessor Control | Yes |
| Communication |
| Port | RS232 or USB |
| Monitoring Software | UPSilon2000 |
| SNMP Card (optional) | DP801 Slot |
| Display |
| LED | 4 LEDs on Front Panel |
| LED Status | Line, Batt Mode/charger, Overload/Fault |
| LCD | Option |
| Environment |
| Temperature | 0-40 ºC |
| Humidity | 3000 Meters Max Elevation 10-95% |
| Audible Noise | Less than 45dBA (at 1M) |
| Physical |
| Dimension(D*W*H), mm | 280*430*89 | 300*430*44 | 350*430*44 |
| Net Weight (Kg) | 9.6 | 8 | 12.4 | 9 | 9.6 | 12.4 |
Founded in 1994, POWTECH invested by Taiwan, is an independently owned international corporation dedicating to develop, produce & distribute JETPOWER brand power supplies and OPTELEC brand optical cables.
The first JETPOWER branded online high frequency UPS was developed in 1994. Driven by customer requirements, we have developed OFF LINE UPS, Line-interactive UPS, Industrial Online UPS, outdoor UPS, telecom inverter, power inverter and home inverter. Through a decade of great efforts, we have made our JETPOWER branded power supplies widely applied in the fields of finance, telecom, electric power, petrochemistry, custom and military field etc, and have been honorably commented by clients. Besides, we also cooperate with many famous power supply companies by OED/ODM, and now our products have been sold worldwidely, including Europe, South America, Africa, Middle East, Asia etc.
As the fast development of power supply, We also expand our business to optical cable and accessories. In 2006, we have set up our own OPTELEC brand to develop, manufacture and distribute ADSS cable, OPGW cable, optical cable, Fusion Splicer, OTDR, Terminal tool kit, ADSS fittings, OPGW fittings, link fittings, wire mesh cable tray, preformed cable tray, cable trunking, cable ladders, STG modules, STG magazines and accessories. Till now, our OPTELEC brand optical cable and accessories have been used in more than 20 countries' telecom lines' construction and power transmission lines' construction.
Powtech has passed the ISO9001 international quality system certification and has established a complete quality system from material source, process, assembling to testing. All Powtech products have been approved by KEMA, SGS and CE (LVD/EMC) or by customer-appointed safety agencies.
Not only do we pride ourselves on competitive price, Advanced technology and top quality products but also we have value-added technical support. We can dispatch our engineer to customer's site for site installation and training, Or we can provide online service to solve any problem during installation & operation. On the priniciple that there is no customer too big or too small, Every customer deserves most professional service. POWTECH people anticipate growing and prospering with you, Embarking on a way of success.
