3.0mm Easy ADSS Drop Fiber Optic Cable

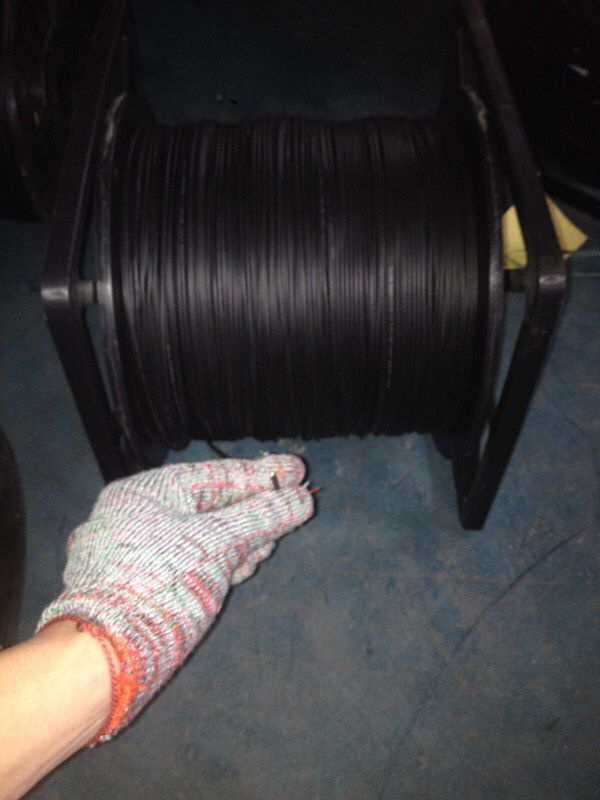

Name: 3.0mm Easy ADSS Drop Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 794108575
Availability: InStock
Rating: 4.4 (76 reviews)

Price:	US $ 0.135-0.140/Meter
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	TPU Cable
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001
Connection Structure:	Fiber Optic Cable
Sheath Material:	TPU,LSZH

Product Description

Application
1. Used in access network or as access cable from outdoor to indoor in customer premiss network;
2. Usedas access building cable in premises distribution system,especially used in indoor or outdoor aerial access cabling.

Features
1.Small size,light weight and compact structure.
2. Good mechanical and environmental performance
3. Flame retardant (or secondary) performance meet the requirements of relevant standards
4. Soft, flexible, convenient, and support the large capacity data transmission
5. Meet the market and the requirements of the users

Options:
Fiber Type:G.652, G.655 or 6.657 single-mode fiber. A1a or A1b, OM3 or OM4 mufti-mode fiber, or other types of fiber;
Jacket Material: Environmental flame retardant polyvinylchloride(PVC), environmental low smoke zero halogen flame retardant palyolefin(LSZH),environmental halogen flame retardant polyolefin(ZRPO), environmental thermasplatic polyurethane(TPU), or other contracted material;
Jacket Color:(Including color of tiber) meets the requirements of relevant standards, or other contracted color;
Cable Dimension: The nominal cable dimension, or other contracted dimension;
Delivery Length: 1 km or 2km, or other contracted length;
Other Requirements: Other contracted special requests.

No.	Items			Unit	Specification
					G.657A2
1	Mode Field Diameter		1310nm	μm	8.8±0.4
			1550nm	μm	9.8±0.5
2	Cladding Diameter			μm	124.8±0.7
3	Cladding Non-Circularity			%	≤0.7
4	/Core-Cladding Concentricity Error			μm	≤0.5
5	Coating Diameter			μm	245±5
6	Coating Non-Circularity			%	≤6.0
7	/Cladding-Coating Concentricity Error			μm	≤12.0
8	Cable Cutoff Wavelength			nm	λcc≤1260
9	Attenuation(max.)		1310nm	dB/km	≤0.4
			1550nm	dB/km	≤0.3
10	Macro-Bending Loss	1turn×7.5mm radius @1550nm		dB	≤0.5
		1turn×7.5mm radius @1625nm		dB	≤1.0

Items		Specifications
Fiber Count		1
Tight-buffered Fiber	Dimension	850±50μm
	Material	LSZH
	Color	BLUE
Strength Member		Kevlar
Outer Jacket	Dimension	3.0±0.2mm
	Material	LSZH Or TPU
	Color	Black

Ningbo Geyida Cable Technology Co., Ltd. is located in the tsz east industrial zone, cixi city of zhejiang province, located in south of Shanghai. In the east is the world-famous deepwater port, ningbo, traffic is convenient, the environment is superior. The factory covers an area of 20, 000 square meters, is a modern enterprise system established in accordance with the high-tech companies. Company introduction in modern technology and equipment, the introduction of modern management methods and systems. Modern quality management program, make product in every link in production got the quality guarantee. The company strictly according to ISO9002: 2000 quality management standard operation, international from product design, production, inspection, the whole management process of the service quality.

Company main product: All kinds of outdoor optical cable, indoor optical cable, optical line jumpers, optical fiber accessories etc. The company will continue to fight in the same storm-tossed boat "business" spirit of enterprise, in line with "brand, cooperation, innovation" business philosophy, adhere to the "customers first" service concept. Committed to build brand integrity, optic communications market oriented, innovative efforts to develop and produce products with excellent performance of cable. Enable the company to become the first-class modernized enterprise and unremitting efforts. Hope in the mutual benefit and win-win with domestic and foreign enterprises on the basis of establishing business relations and cooperation, and to develop and create a brilliant future with you! !
