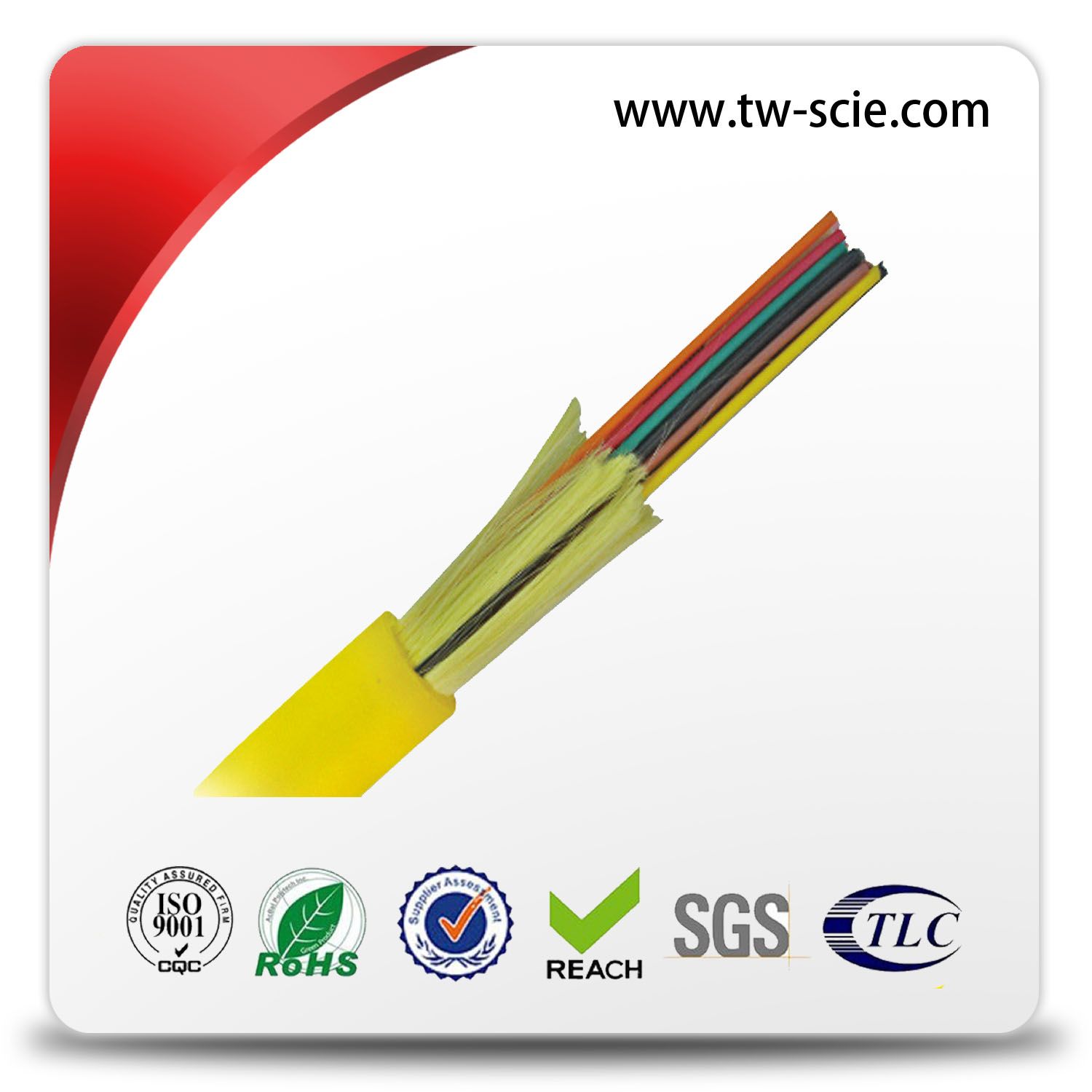

3.0mm Tight Buffer Optical Fiber Breakout Cable Multi-Core

Name: 3.0mm Tight Buffer Optical Fiber Breakout Cable Multi-Core
Brand: all-electronics-online.com
SKU: 810536055
Availability: InStock
Rating: 4.4 (61 reviews)

Price:	Negotiablepieces
Min Order:	1000pieces
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Tight buffer cable
Application:	Telecommunication
Certification:	ISO9001
Type:	Indoor Cable
Connection Structure:	Patch Cable
Core:	1 Core or 2 Core
Sheath Material:	PVC or LSZH

Product Description

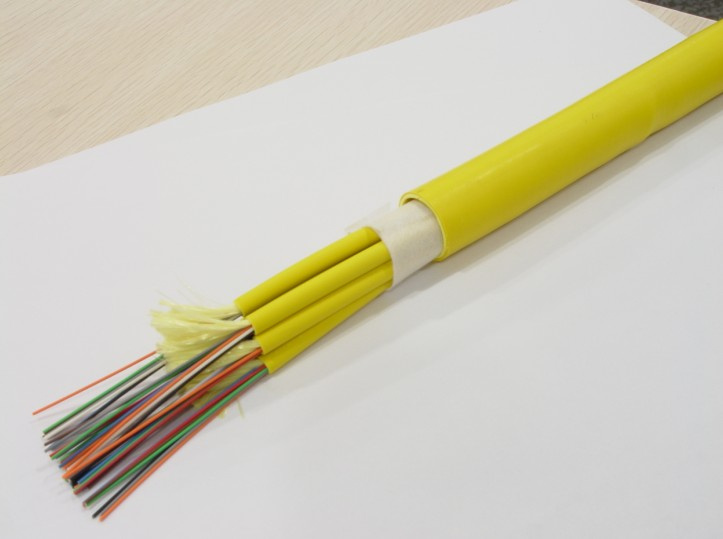

3.0MM or 2.0MM Breakout Tight Buffer Optical Cable

Introduction:

Optical fiber cable is a type of optical fiber mostly used for communication network

Features:

More single-core cable design.

Single-cable with independent strength member.

Non-metal central strength member.

Fiber Counl:2~12

Application:

Indoor level and vertical laying.

Ceiling laying surface laying etc.

Connected to connectors of various models interconnect.

Specification:

Technical Parameters:
Cable Count	Out sheath Diameter	Inner sheath Diameter	Weight	Maximum allowable Tensile Strength (N)		Maximum allowable Crush Load (N/100mm)		Minimum Bending Radius (MM)		Storage temperature
Cable Count	(MM)	(MM)	(KG)	short term	long term	short term	long term	short term	long term	(°C)
02	7.0	2.0	45.00	1500	600	1000	300	20D	10D	-20+60
04	7.0	2.0	47.00	1500	600	1000	300	20D	10D	-20+60
06	8.3	2.0	64.00	1500	600	1000	300	20D	10D	-20+60
08	9.5	2.0	88.00	1500	600	1000	300	20D	10D	-20+60
10	11.0	2.0	105.00	1500	600	1000	300	20D	10D	-20+60
12	12.2	2.0	142.00	1500	600	1000	300	20D	10D	-20+60

Optical Characteristics

Fiber Sort

Multimode

A1a:50/125

Graded-index fiber

A1b:50/126

Singlemode

G.652(A,B,C)

B1.1:Conventional fiber

G.652D

B2: Zero dispersion shifted

G.655

B1.2 :Cut-off wavelength shifted

G.657(A1,A2,A3)

B4: Main technical data for positive
dispersion shifted single-mode fiber

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
