| Prod Model: |
GY-M59**5S-159 |
| Usage: |
Ge Fiber Channel |
| Support Network: |
Ethernet |
| Information Content: |
Data |
| Certification: |
RoHS |
| Condition: |
New |
| Type: |
Fiber Optical |
Product Description

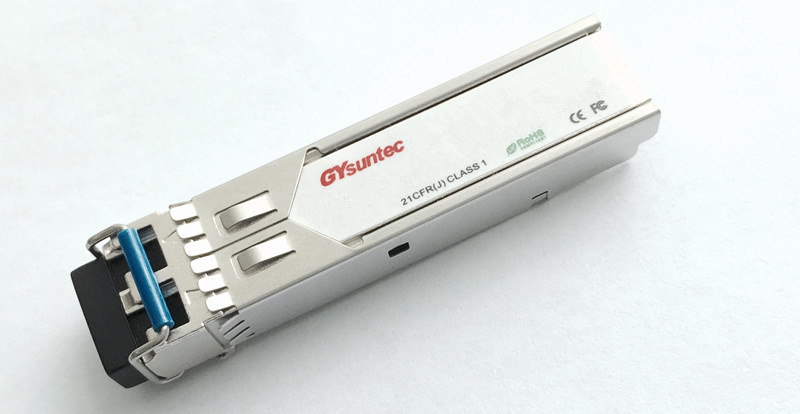

3.25Gbps CWDM Transceiver 20KM Data Sheet
GY-M59**5S-159
Features
Transceiver unit with independent CWDM DFB Laser diode transmitter
Up to 20 Km with 9/125μm SMF
+3.3V single power supply
Operating Temperature Range (0ºC to +70ºC)
Hot-Pluggable electrical interface
Digital diagnostic monitoring
LC duplex receptacle
Low power dissipationProduct Description
GYsuntec GY-M59**5S series of transceiver modules are the perfect solution for high-speed communication networks. It provide reliability, robust and high performance to Telecom, Datacom, and other data communication applications. It support data rates up to 3.25Gbps. The optical transceiver is compliant with the Small Form-Factor Pluggable (SFP) Multi-Source Agreement (MSA).GY-M59**5S SFP transceivers offer a simple and convenient way to interface PCBs to single mode fiber optic cables in Coarse Wavelength Division Multiplexing (CWDM) applications. There are nine center wavelengths available 1450 nm, 1470nm, 1490 nm, 1510 nm, 1530 nm, 1550 nm, 1570 nm, 1590 nm, 1610 nm, It is a high performance, cost effective module for serial optical data communication applications.GY-M59**5S SFP modules have been designed to provide good immunity to RF electromagnetic fields and excellent EMC/EMI performance. Order Information
Table 1: Order Information
| Type | Fiber
Type | Wavelength
(nm) | Fiber
Length(Km) |
| GY-M59**5S-159 | SM | 1450~1610 | 20 |
GY-M59555S-159
GY-M59475S-159
| | 1555nm
1470nm | |
Note: 1. The suffix "S" denote that is with single isolator Equipment
Packing procedure
Shippment
1.Warranty
One~three years Warranty based on products, three monthes free exchange and one year free repairing.
2.OEM is welcome.
3. Any Inquire is welcome.
Any inquire will be replied within 24 hours.
5.After-sales service.
a. From the beginning of production till the successful delivery, we will track on time and post you the status.
b. When the goods arrived, if you have question after inspection, please feel free to contact us, we'll provide solution.
FAQ
1. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable, We do not have MOQ,1 sample is available.
2. We can be compatible with:
3. What is the lead time?
For usual products. We keep stock, could ship 1~15 days based on qty after PO. For big quantity and special products. Please check lead time with our sales representative.
4. How do you ship the goods and how long does it take arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
5. Dose your modules compatible to CISCO. (HP/Extreme/Juniper, etc.)
Yes, we code the optical transceivers compatible to CISCO(HP/Extreme/Juniper).
6. What is your payment terms?
Usually, we need prepayment by T/T, West Union or Cash.
7. What is your warranty time
We promise 3 years' warranty for all products shipped from us.
8. Could I return the products if there is a quality problem?
Yes, if there is a quality problem happen, including products defects, uncompatibilty, we could accept free exchange or return and refund.
9. How to place an order?
Please send your inquires to sales or call our sales hotline: +86-0755 86957360
10. Could I use our own logo and label?
Yes, we could provide a OEM service and make the products with your own label.
GY SUNTEC is a high-tech enterprises of ShenZhen China, was founded in 2006. Design and manufacture fiber optic active components, modules and fiber optic system products, Include SFP, SFP+, XFP, CFP, CFP2, CFP4, QSFP+, SFP28, QSFP28 series optical transceiver, and fiber media converter, optical video transmitter and receiver, we also customorized the laser diode for customer. Our products widely applied in many fiber optical communication fields, such as Telocom, Datacom, Data centre, access network, fiber channel and FTTX, CCTV surveillance etc. Our engineer have more 18year experience in fiber optic field, abundant technology design capability and rich OEM & ODM co-operation experience, we would design and biuld your product for your application. Compliant with CE, RoHS, FCC. To achieve your 100% satisfaction is our persistent goal! Looking forward to establishing a long-term and steady co-operation relationship with you!

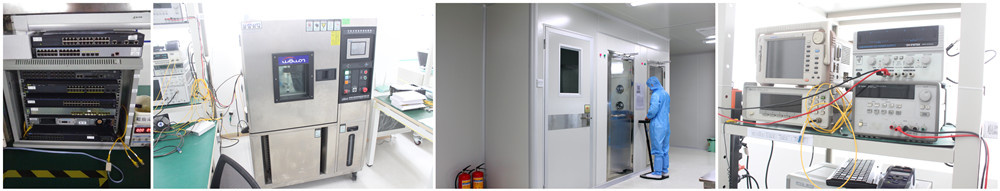

GYSUNTEC have more than 50 employee, include R&D 6 and businessman 8. We have more than USD500000 investment in auto machine and test equipment.
