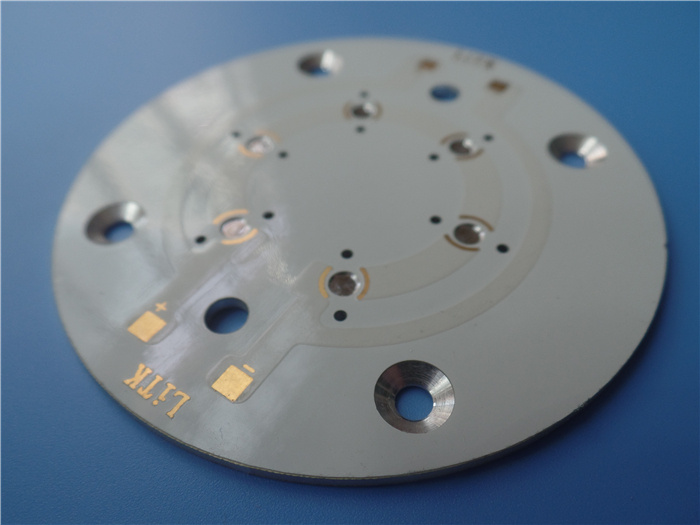

3.2mm Thick 0.126" PCB Circuit Board Aluminum Ipc Class 2
| Price: |
US $ 1.03/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
BIC-643-V6.43 |
| Final Foil External: |
1.0 Oz |
| Final Height Of PCB: |
0.6mm |
| Surface Finish: |
No Surface Finish Requried, Copper Exposure. |
| Solder Mask Color: |
Green |
| Colour Of Component Legend: |
White |
| Minimum Trace And Space: |
12 Mil/20 Mil |
| Minimum / Maximum Holes: |
0.3/0.3mm |
| Board Plating: |
0.0029" |
| Via: |
Plated Through Hole(Pth) |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
RO4350b |
| Material: |
Hydrocarbon/Woven Glass |
| Insulation Materials: |
Glass Reinforced Hydrocarbon |
Product Description
Company Profile
In the past year, Bicheng has served thousands of customers in the world in the applications
of power electronics, intercom systems, telecommunications etc. Bicheng now is one of
the established brands in PCB industry.
Our clients are from worldwide.
Australia: Perth, Melbourne, New South Wales, South Australia, West Australia
Austria: Breitenfurt bei Wien, Graz
Bangladesh: Purana Paltan
Belgium: Deinze, Hasselt
Bulgaria: Plovdiv
Brazil: Caxias do Sul
Canada: Quebec, Ontario, Vancouver
Czech: Pardubice, Horní Počernice
France: Villeneuve La Garenne Cedex, Montchenu
Germany: Stuttgart, Garbsen, Hamburg, Altenburg, Velbert Kleinmachnow, Potsdam
Hungary: Budapest
India: Tamilnadu
Ireland: Cork
Israel: Nettanya City, Ben-Gurion Airport, Tel Aviv, Yahud, Acre,
Italy: Peschiera Borromeo, Verona, Mezzocorona, Pietrasanta Lucca, Torino
Kuwait: Safat
Malta: Mosta
Malaysia: Selangor
Mexico: Leon Guanajuato
Portugal: Guimarães
South Korea: Gyeonggi-DO
Serbia: Kragujevac
Sweden: Göteborg , Siljansnäs,
Thailand: Bangkok, Chonburi
Turkey: Ankara, Istanbul, Kocaeli
The Netherlands: Diemen
UK: Bristol, Surrey
Ukraine: Kiev
USA: Connecticut, Alaska, New York City, Miami,, New Jersey, Texas, Colorado, Largo, California,
Candler
Vietnam: HoChiMinh City
Zambia: Kitwe
High Frequency PCB
Flexible Printed Circuit
Metal Core PCB
PCB Board
Technology InformationRO4350B & RO4003C Data Sheets| Property | Typical Value | Direction | Units | Condition | Test Method |
| | RO4003C | RO4350B | | | | |
Dielectric
Constant,
εr Process | 3.38±0.05 | 3.48±0.05 | Z | - | 10 GHz
/23ºC | IPC-TM
-650 2.5.5.5
Clampled
Stripline |
Dielectric
Constant,
εr Design | 3.55 | 3.66 | Z | - | 8 to 40
GHz | Differntial
Phase
Length
Method |
Dissipation
Factor Tan,
δ | 0.0027
0.0021 | 0.0037
0.0031 | Z | - | 10 GHz
/23ºC
2.5 GHz
/23ºC | IPC-TM
-650
2.5.5.5 |
Thermal
Coefficient
of εr | 40 | 50 | Z | ppm/ºC | minus
50ºC
to 150ºC | IPC-TM
-650
2.5.5.5 |
Volume
Resistivity | 1.7 x 10¹º | 1.2 x 10¹º | | MΩ·CM | COND A | IPC-TM
-650
2.5.17.1 |
Surface
Resistivity | 4.2 x 10^9 | 5.7 x 10^9 | | MΩ | COND A | IPC-TM
-650
2.5.17.1 |
Electrical
Strenghth | 31.8 (780) | 31.2 (780) | Z | KV/mm
(V/mil) | 0.51mm
(0.020") | IPC-TM
-650
2.5.6.2 |
Tensile
Modulus | 19650(2850)
19450(2821) | 16767 (2432)
14153 (2053) | X Y | Mpa(ksi) | RT | ASTM
D638 |
Tensile
Strength | 139(20.2)
100(14.5) | 203(29.5)
130(18.9) | X Y | Mpa(ksi) | RT | ASTM
D638 |
Flexural
Strength | 276 (40) | 255 (37) | | Mpa(kpsi) | | IPC-TM
-650
2.4.4 |
Dimensional
Stability | <0.3 | <0.5 | X,Y | mm/m
(mils/inch) | after etch
E2/150ºC | IPC-TM
-650
2.4.39A |
Coefficient of
Thermal
Expansion | 11 14 46 | 10 12 32 | X Y Z | ppm/ºC | minus 55ºC
to 288ºC | IPC-TM
-650
2.4.41 |
| Tg | >280 | >280 | | ºC TMA | A | IPC-TM
-650
2.4.24 |
| Td | 425 | 390 | | ºC TGA | | ASTM
D3850 |
Thermal
Conducvitity | 0.71 | 0.69 | | W/m/ºk | 80ºC | ASTM
C518 |
Moisture
Absorption | 0.06 | 0.06 | | % | 48 hrs
immersion
0.060" sample
Temperature
50ºC | ASTM
D570 |
| Density | 1.79 | 1.86 | | gm/cm³ | 23ºC | ASTM
D792 |
Copper Peel
Strength | 1.05 (6.0) | 0.88 (5.0) | | N/mm
(pli) | after solder
float 1 oz.
EDC Foil | IPC-TM
-650
2.4.8 |
| Flammability | N/A | V-0 | | | | UL 94 |
Lead-Free
Process
Compatible | Yes | Yes | | | | |
