3.2mm Thick Prototype PCB Board 4 Layer Blue Solder Mask
| Price: |
US $ 0.48/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-225-V2.25 |
| Outer Copper Foil: |
1 Oz |
| Board Thickness: |
3.2mm |
| Surface Treament: |
HASL Lead Free |
| Solder Mask: |
Blue |
| Legend: |
White |
| Min Line Width (Mil): |
7.3 Mil |
| Min Line Spacing (Mil): |
6.2 Mil |
| Electrical Test: |
100% PCB Passed |
| Visual Inspection: |
Ipc-a-600h&Ipc-6012c |
| Forming: |
V-Cut |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
3.2mm Thick Prototype PCB 4 Layer FR-4 Tg170, CTI 175V-249V With R-500 BL Blue Solder
Mask HASL Lead Free and white Screen in Car Amplifier
Commodity Introduction

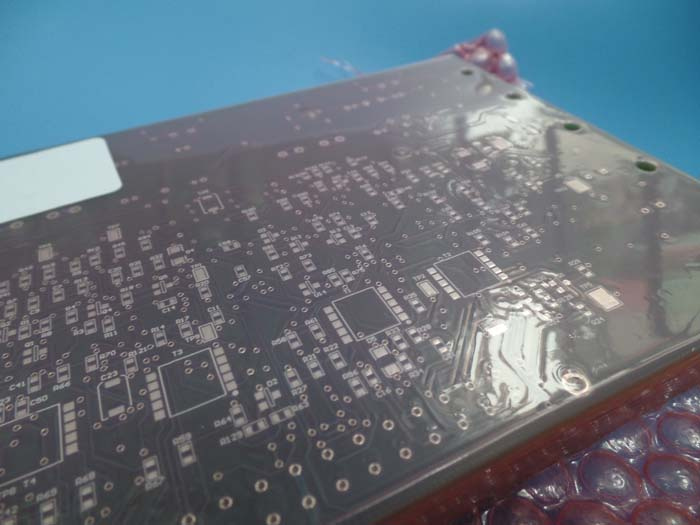

This is a type of FR-4 PCB for the application of Car Amplifier. It's a 4 layer board at 3.2mm
thick.The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated

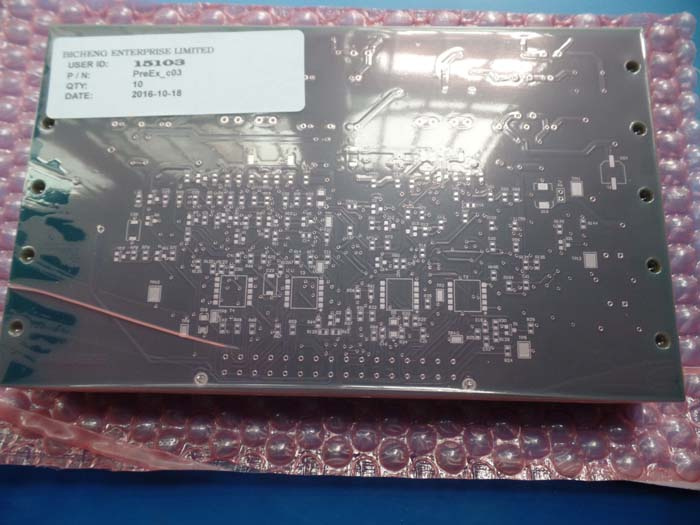

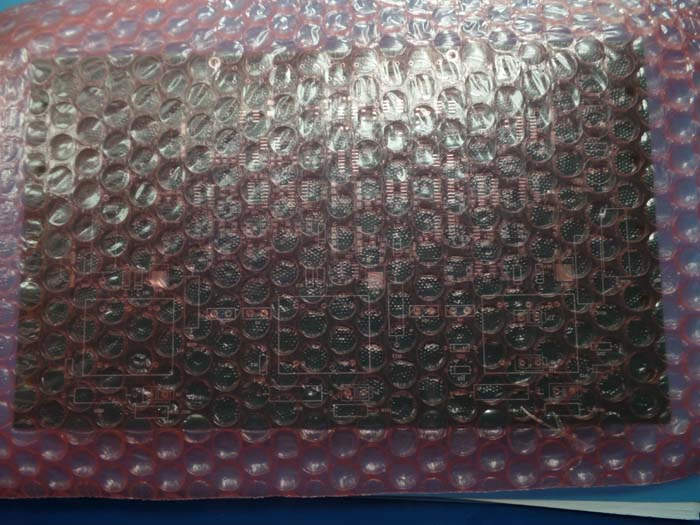

per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed
separately.
Parameters & Data Sheet| Item | Requirement | Result |
| Laminate | Type | FR-4 TG170 | FR-4 TG170 |
| Supplier | ITEQ | ITEQ |
| Board thickness | 3.2+/-10%mm | 3.18+/-3.3mm |
| Outer copper foil | >=35 um | 43.37 |
| Inner copper foil | 35 um | 35 um |
| Warp-twist | <= 0.75% | 0.19% |
| Legend | Type | IJR-4000 MW300 | IJR-4000 MW300 |
| Color | White | White |
| Location | CS & SS | CS & SS |
| Marking | Co.logo | YES | OK |
| UL.logo | YES | OK |
| Date code | WWYY | WWYY |
| Marking form | NA | OK |
| Location | CS | CS |
| Min line width (mil) | 7.5 | 7.3 |
| Min line spacing (mil) | 6 | 6.2 |
| Min ring width (mil) | NA | NA |
| Solder Mask | Type | R-500 BL | R-500 BL |
| Color | Blue | Blue |
| Thickness | >=10 um | 14 um |
| Pencil Test | 6H OR ABOVE | OK |
| SOLVENT TEST | NO ATTACK | OK |
| TAPE TEST | NO PEEL OFF | OK |
| Surface treament | HASL Lead free | OK |
| Special Treament | Silk screen | / | / |
| Location | / | / |
| Forming | V-cut | OK |
| Normal Testing | Electrical test | 100% PCB passed | OK |
| Visual inspection | IPC-A-600H&IPC-6012C | OK |
| Solderability Test | 245ºC 5S 1 Cycle | OK |
Finished dimension (unit: mm): including v-cut| NO | Required Dimension (tolerance) | Actual dimension |
| 1 | 122.94 | 122.83 | 122.83 | 122.94 | 122.91 |
| 2 | 109.35 | 109.36 | 109.46 | 109.42 | 109.25 |
Hole size and slot dimension(unit: mm, PTH tolerance +/-0.076, NPTH +/-0.05mm)| NO | Required | PTH | Actual dimension |
| 1 | 0.900 | Y | 0.900 | 0.875 | 0.925 | 0.900 |
| 2 | 1.000 | Y | 1.000 | 0.975 | 1.025 | 1.000 |
| 3 | 1.100 | N | 1.100 | 1.075 | 1.125 | 1.100 |
| 4 | 1.600 | N | 1.600 | 1.575 | 1.625 | 1.600 |
Learn PCB and Buy PCB --- Laminates --- FR-4 brief

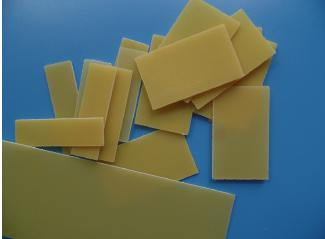

FR-4 (or FR4) is a kind of material grade designation, which means that the resin material is flame
resistant (self-extinguishing). FR-4 is a kind of material specifications, not a material name, but a
material grade. "FR" stands for flame retardant, and denotes that safety of flammability of FR-4 is
in compliance with the standard UL94V-0.
FR-4 glass epoxy is a popular and versatile high-pressure thermoset plastic laminate with good
strength to weight ratios. With near zero water absorption, FR-4 is most commonly used as an
electrical insulator possessing considerable mechanical strength. The material is also known to
retain its high mechanical values and electrical insulating qualities in both dry and humid
conditions. These attributes, along with good fabrication characteristics, lend utility to this grade
for a wide variety of electrical and mechanical applications.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
