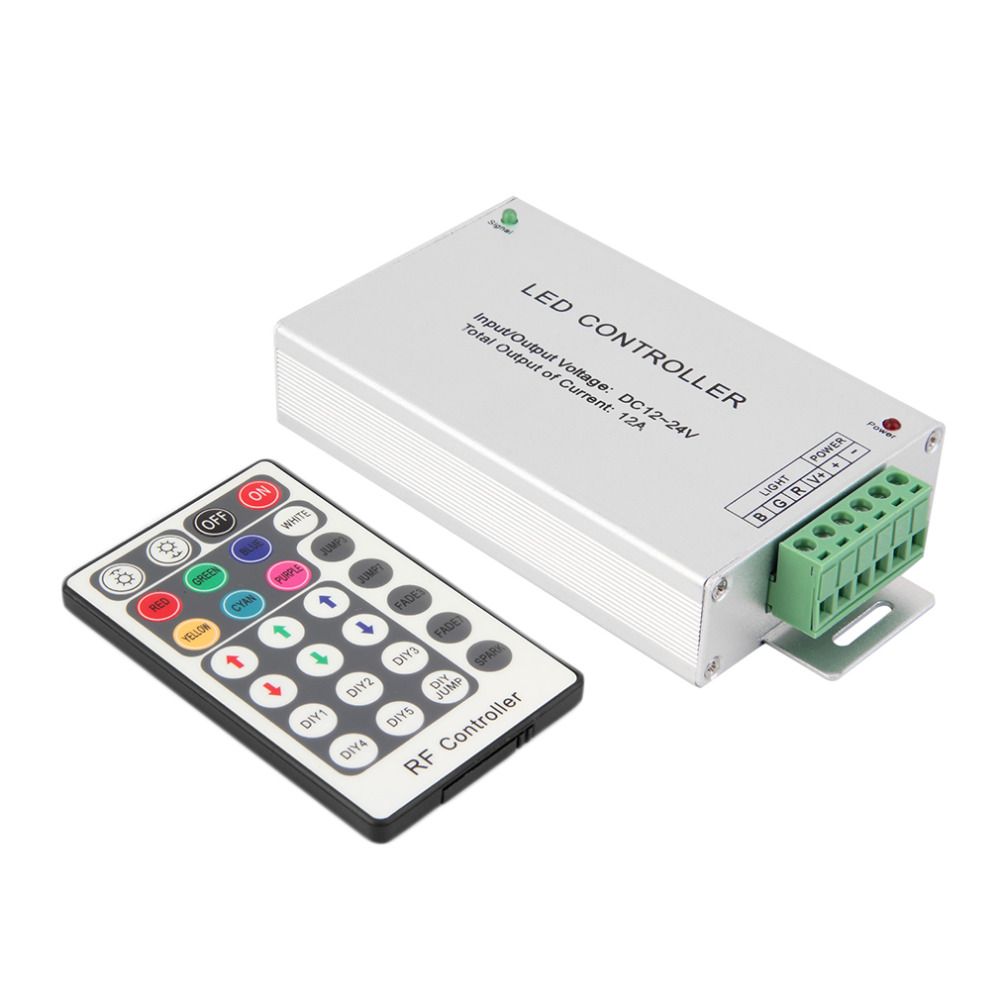

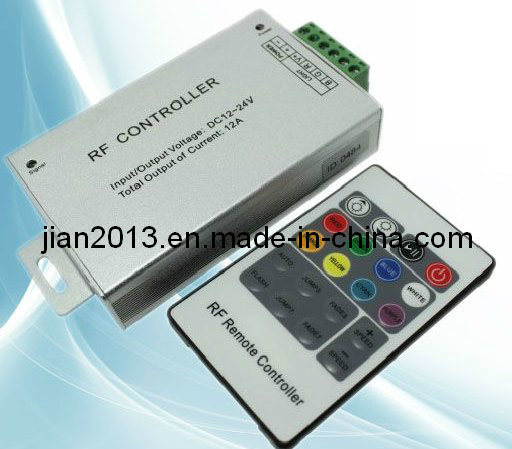

3 Channel RGB Wireless Neon/Lighting Strip/Wall Washers RF Controller

Name: 3 Channel RGB Wireless Neon/Lighting Strip/Wall Washers RF Controller
Brand: all-electronics-online.com
SKU: 689241442
Availability: InStock
Rating: 4.7 (53 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JA-CON-RF20B(H)-3CH-LV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max. Load Power:	288W
Remote Distance:	30m
Application:	Audio / Video Players
Signal Transmission:	RF Remote Control
Type:	Button

Product Description

Specifications

RF controller
1 adopt the advanced micro-control unit
2 high quality/easy to use and connect
3 CE/RoHS
4 one year warranty

Technical parameters

Working temperature: -20-60
Supply voltage: DC5V, 12V-24V (for orders specify voltage)
Output: 3 channels
Transmission/receiving frequency: 433MHz
Controller dimension: L128 W64 H24 mm

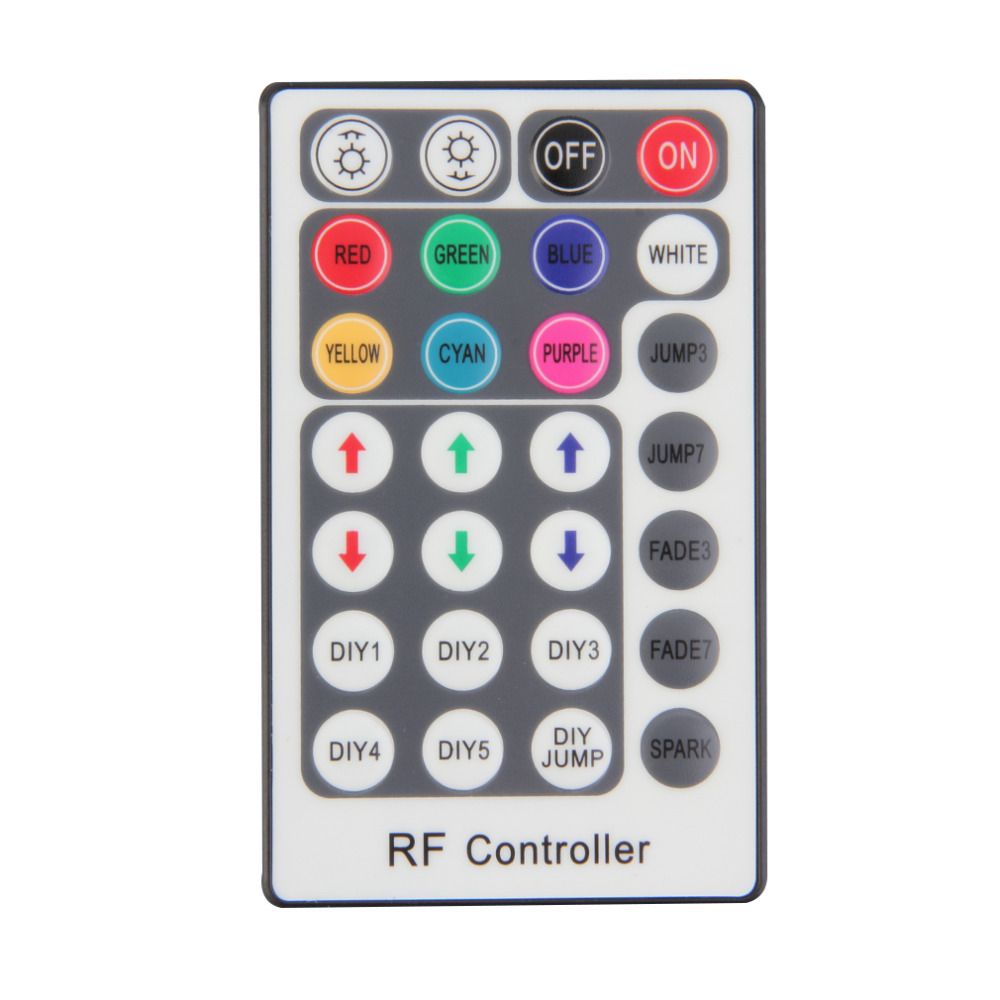

Remote controldimension: L85 W52 H7 mm
Packing size: L145 W95 H50mm
Net weight: 165g
Gross weight: 205g
Static power consumption: <1 W
Output current: <4 A (each channel)
Output power: 5 V: <60W, 12V: <144W, 24V: <288W

Summarization

RF controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time, it has many advantages such as convenient to connect, simplicity to use and others. According to actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.

Direction for use

1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between
Connecting wire before you turn on the power;
2. Standard change functions are as follows:

Model Number: JA-CON-RF20B(H)-3CH-LV	Supply voltage: DC5V, 12V-24V
Output: 3 channels	Output power: 5 V: <60W, 12V: <144W, 24V: <288W
Working temperature: -20-60	Static power consumption: <1 W
Output current: <4 A (each channel)	Net weight: 165g
Gross weight: 205g
