3 Core 240mm2 Steel Tape Armored Electric Cable

Name: 3 Core 240mm2 Steel Tape Armored Electric Cable
Brand: all-electronics-online.com
SKU: 731739752
Availability: InStock
Rating: 4.6 (132 reviews)

Price:	US $ 60/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	VV22, YJV22
Product Name:	3 Core 240mm2 Steel Tape Armored Electric Cable/Po
Number Of Cores:	Single/2/3/4/5/6/7/8/10/16 Core...
Rated Voltage:	0.6/1kv,1.8/3kv,3.6/6kv,6/6(10)Kv,8.7/10 (15)Kv,1
Cross Section Area/Measure:	3.5/4/6/10/16/25/35/50/70/95/120/150/185/240/300/4
Standard:	IEC 60502-1, BS 7870-6, BS 6622, BS 7835, GB 502
Conductor:	Stranded/Solid/Flexible Copper/Aluminum Conducto
Insulation:	XLPE/PVC/PE/Pur
Aplication:	Electric, House Wire, Building Wire...
Shield:	Copper Wire Screen(Cws), Aluminium Wire Screen (a
Armoured:	Steel Tape Armoured (Sta) or Steel Wire Armoured
Application:	Telecommunication
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	PVC
Certification:	VDE
Model:	VV22, Yjv22
Brand:	Chang Qing Teng

Product Description

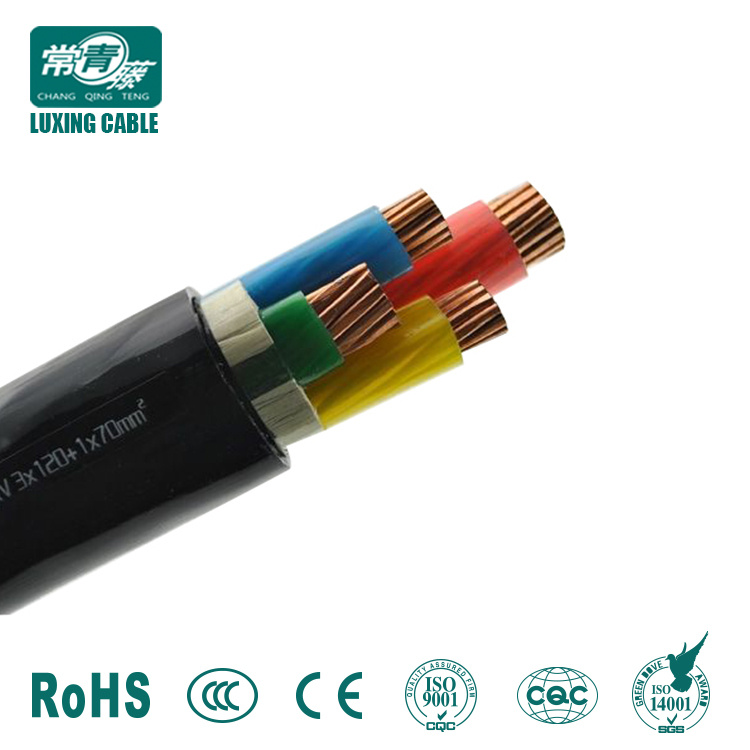

3 core 240mm2 steel tape armored electric cable/power supply cable/16mm aluminium xlpe cable

Product Description

3 core 240mm2 steel tape armored electric cable/power supply cable/16mm aluminium xlpe cable

Standard: IEC60502; BS5467: 1997 with Amendment 1

Conductor:

Soft annealed stranded copper wires to BS6360, class 2, concentrically stranded in successive layers, in opposite direction, to form the
stranded conductor.

Insulation:

The conductor are insulated with a layer of extruded XLPE compound.

Filling:

The assembled cable is filled with a layer of PVC compound in order to fill the interstices between the cores and render the cable round.

Armoring:

Consists of single layer of galvanized steel wires of appropriate size.

Sheathing:

An outer protection of extruded PVC compound is applied over the armor.

Voltage rating: 0.6/1kV, 3.6/6kV; 6/10KV; 8.7/15KV; 12/20KV; 18/20KV; 19/33KV; 21/35KV; 26/35KV

Operating temperature:

90 continuous normal operation, 130 for emergency overload condition and 250 for short circuit condition

Application:

For outdoor and indoor installations in damp and wet locations, laid direct in the ground where excessive mechanical stresses are present in
sloping and moving terrains and in vertical or inclined laying, as well as in locations susceptible to sliding.

Production range:

Type	Description	Application
		For lying in doors, in tunnels and direct in ground, required to bear certain longitudinal mechanical forces.
YJLV22	Aluminum conductor XLPE insulated steel tape armored Screened PVC sheathed power cable

YJLV23	Aluminum conductor XLPE insulated steel tape armored Screened PE sheathed power cable
		For lying in doors, in tunnels and direct in ground and wells, required to bear external mechanical forces and determinate pulling force.
YJLV32	Aluminum conductor XLPE insulated fine steel wire armored Screened PVC sheath power cable

YJLV33	Aluminum conductor XLPE insulated fine steel wire armored Screened PE sheathed power cable

Contact:

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
