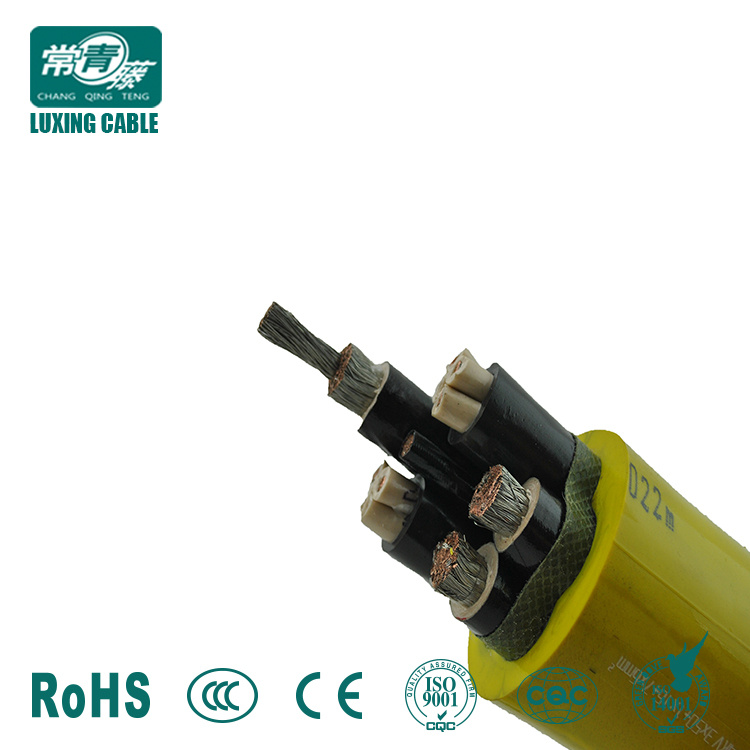

3 Core Flexible Rubber Insulation Power Electrical Cable

Name: 3 Core Flexible Rubber Insulation Power Electrical Cable
Brand: all-electronics-online.com
SKU: 731729742
Availability: InStock
Rating: 5 (80 reviews)

Price:	US $ 20/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YH, YZ, YZW, YC, YCE, JHS, JHSB, UZ.
Product Name:	3 Core Flexible Rubber Insulation Power Electrical
Number Of Cores:	Single/2/3/4/5/6/7/8/10/16 Core...
Rated Voltage:	0.6/1kv,1.8/3kv,3.6/6kv,6/6(10)Kv,8.7/10 (15)Kv,1
Cross Section Area/Measure:	3.5/4/6/10/16/25/35/50/70/95/120/150/185/240/300/4
Standard:	IEC 60502-1, BS 7870-6, BS 6622, BS 7835, GB 502
Conductor:	Stranded/Solid/Flexible Copper/Aluminum Conducto
Insulation:	XLPE/PVC/PE/Pur
Aplication:	Electric, House Wire, Building Wire...
Shield:	Copper Wire Screen(Cws), Aluminium Wire Screen (a
Armoured:	Steel Tape Armoured (Sta) or Steel Wire Armoured
Application:	Telecommunication
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	Rubber
Certification:	VDE
Brand:	Chang Qing Teng

Product Description

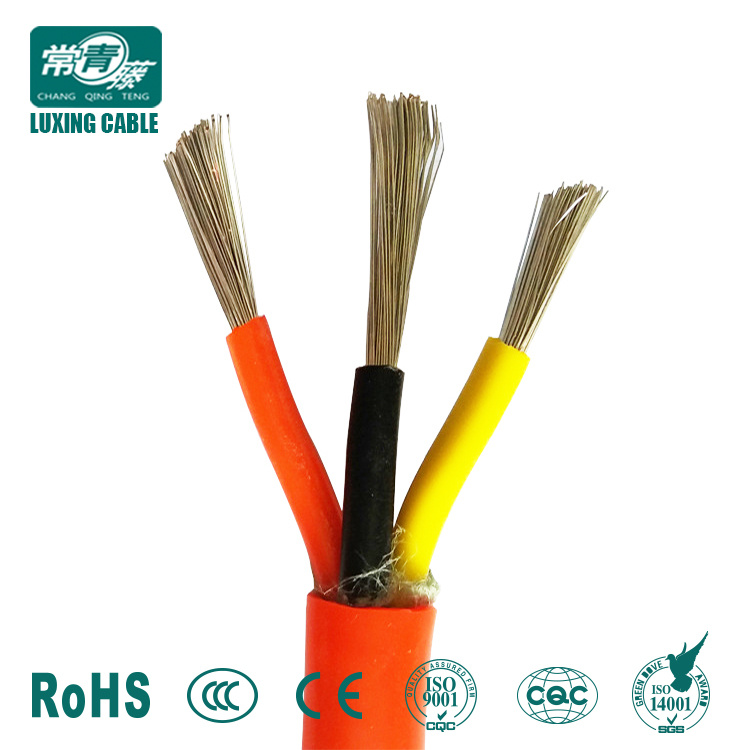

3 core flexible rubber insulation power electrical cable/electrical cable 2.5 mm/3 core 4mm flexible cable

Product Description

3 core flexible rubber insulation power electrical cable/electrical cable 2.5 mm/3 core 4mm flexible cable

Application:

Type SOOW Flexible Cords are permitted for use by Article 400 and related articles of the National Electrical Code. SOOW cords are designed
for extra hard usage on industrial equipment, heavy tools, battery chargers, portable lights and power extensions. They are sunlight, water, oil
and weather resistant and suitable for outdoor applications.

Specifications:

• Conductors: Fully annealed, stranded bare copper, per ASTM B-174, sizes 18 - 2AWG

• Insulation: EPR insulated

• Jacket: CPE sheathed

• Temperature Rating: -25°C to + 90°C

• Water resistant and an oil resistant jacket

• Lightweight and Very good flexibility

• UL Flexible Cord Subject 62

• FT1 and FT2 Flame Test

• Sunlight Resistant

•cUL Listed

Option:

Temperature Rating -40°C- 105°C

Construction

Type SOOW Flexible Cords are manufactured using bare flexible stranded Class K copper conductors, with a heat, moisture and oil resistant
EPDM rubber insulation. The insulated conductors are cabled with wax paper fillers. A tissue-paper separator is wrapped around the
assembly to promote easy removal of the jacket. A heat, moisture and oil resistant flexible CPE jacket is extruded over the assembly to
complete the construction.

Conductor Size (AWG)	Conductor Stranding			Nominal Insulation Thickness	Nominal Jacket Thickness	Nominal Overall Diameter (in)	Weight	Ampacity
	n	/	AWG/inch	mil	mil	in	lbs/1000ft	A
2*18AWG	16	/	30	30	60	0.33	70	10
3*18AWG	16	/	30	30	60	0.35	80	10
4*18AWG	16	/	30	30	60	0.37	96	7
2*16AWG	26	/	30	30	60	0.36	86	13
3*16AWG	26	/	30	30	60	0.37	99	13
4*16AWG	26	/	30	30	60	0.41	119	10
2*14AWG	41	/	30	45	80	0.49	155	18
3*14AWG	41	/	30	45	80	0.51	179	18
4*14AWG	41	/	30	45	80	0.56	215	15
2*12AWG	65	/	30	45	95	0.56	206	25
3*12AWG	65	/	30	45	95	0.58	239	25
4*12AWG	65	/	30	45	95	0.63	290	20
2*10AWG	104	/	30	45	95	0.62	266	30
3*10AWG	104	/	30	45	95	0.66	316	30
4*10AWG	104	/	30	45	95	0.72	385	25
3*8AWG	133	/	29	60	110	0.83	505	40
4*8AWG	133	/	29	60	125	0.93	646	35
5*8AWG	133	/	29	60	125	0.93	684	35
3*6AWG	133	/	27	60	125	0.95	694	55
4*6AWG	133	/	27	60	140	1.07	885	45
5*6AWG	133	/	27	60	140	1.07	946	45
3*4AWG	133	/	0.0177	60	140	1.09	952	70
4*4AWG	133	/	0.0177	60	155	1.22	1210	60
5*4AWG	133	/	0.0177	60	155	1.22	1304	60
3*2AWG	133	/	0.0223	60	155	1.26	1344	95
4*2AWG	133	/	0.0223	60	170	1.41	1705	80
5*2AWG	133	/	0.0223	60	170	1.41	1853	80

Contact:

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
