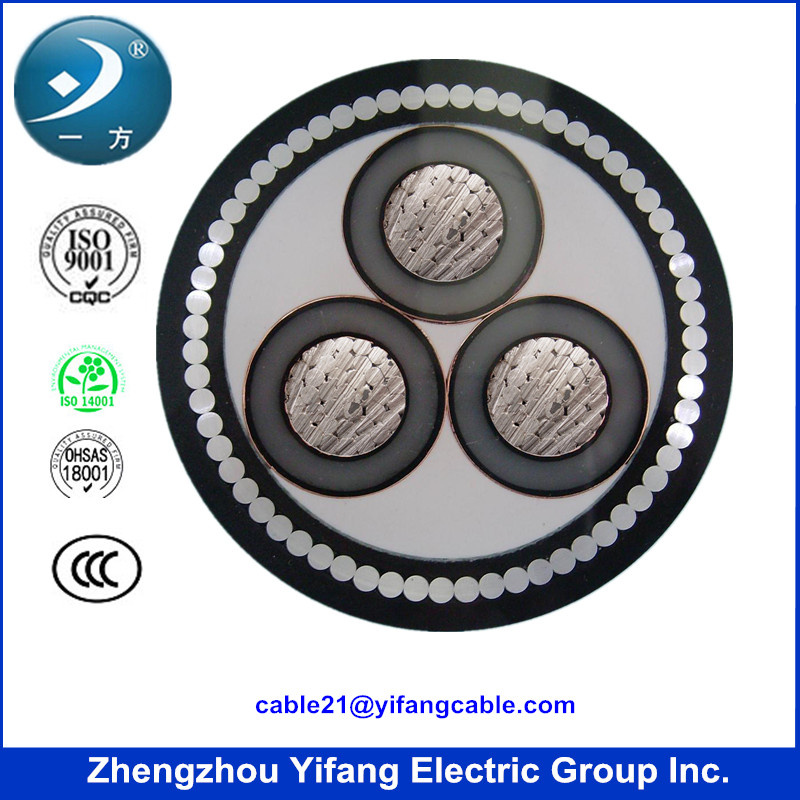

3 Core XLPE 11kv Electric Power Cable

Prod Model:	YJV22
Size:	up to 800mm2
Alternative Voltage:	up to 46
Armour:	Swa or Sta
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Certification:	CE
Brand:	Yifang

Product Description

                                    3 core xlpe 11kv electric power cable price

1. Voltage:
According to the IEC 60502, the voltage is 0.6/1(1.2)kv, 1.8/3(3.6) kv, 3.6/6(7.2)kv, 6/10(12)kv, 8.7/15(17.5)kv, 12/20(24)kv, 18/30(36)kv, 21/35kv;

2. Conductor:
Conductor is accoriding to IEC60228, the class 1 or the class 2, bare annealed copper wire or metallic annealed copper wire, aluminium or aluminium alloy;

3.Insualtion:
PVC can be used for 0.6/1kv, 1.8/3kv, as well as 3.6/6kv;
XLPE can be used for every voltage according to the IEC 60502;
The thickness of PVC insulation 3.6/6kv is 3.4mm;
The thickness of XLPE insulation for 3.6/6kv is 2.5mm for <=185mm2;
For 6/10kv is 3.4mm, for 8.7/15kv is 4.5mm, for 12/20kv is 5.5mm, for 18/30kv is 8.0mm

4.Shied:
The metallic shield layer is essential for every insulated cores.
The conductor shield and insulation shield are both needed, except the 2 conditions as below:
For the 3.6/6kv, EPR/HEPR insulated, the shield layer can be omitted;
For the 3.6/6kv PVC insulated styles, the shield layer can also be omitted.


Type	Description	Application
VV	Copper conductor ,PVC insulated ,PVC sheathed power cable	Used for installing indoors, in tunnel or cable trench,unable to bear extermal mechanical forces. Single core cable is not permissible to lay in magnetic duct
VLV	Aluminium conductor ,PVC insulated ,PVC sheathed power cable
VY	Copper conductor, PVC insulated, PE sheathed power cable
VLY	Aluminium conductor ,PVC insulated ,PE sheathed power cable
VV22	Copper conductor ,PVC insulated ,steel tape armoured ,PVC sheathed power cable	Used for Installing indoors, in cable trench or direct in ground ,able to bear external mechanical forces, but unable to bear pulling force
VLV22	Aluminium conductor ,PVC insulated ,steel tape armoured ,PVC sheathed power cable
VV23	Copper conductor ,PVC insualted ,steel tape armoured ,PE sheathed power cable
VLV23	Alunminium conductor ,PVC insulated ,steel tape armoured ,PE sheathed power cable
VV32	Copper conductor, PVC insulated, steel wire armoured,PVC insulated power cable	Used for intalling indoors, in cable or direct in ground ,able to bear external mechanical forces, but unable to bear large pulling forces
VLV32	Aluminium conductor, PVC insulated ,steel tape armoured ,PVC sheathed power cable
VV33	Copper conductor, PVC insulated steel wire armoured , PE sheathed power cable
VLV33	Aluminium conductor , PVC insulated , streel wire armoured ,PE sheathed power cable
