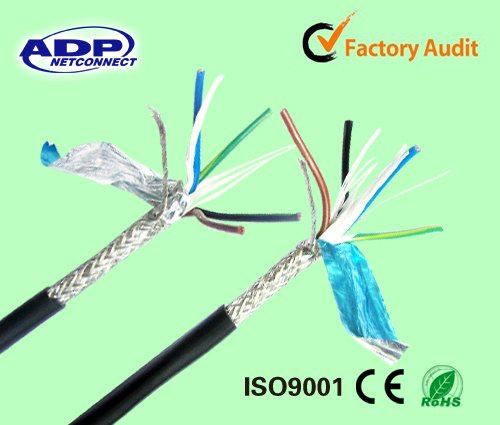

3 Cores 300/500V Flexible Screen Electrical Power Cable Rvvp

Name: 3 Cores 300/500V Flexible Screen Electrical Power Cable Rvvp
Brand: all-electronics-online.com
SKU: 800235845
Availability: InStock
Rating: 4.5 (150 reviews)

Price:	Negotiable/Meter
Min Order:	30000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Type:	Insulated
Conductor Type:	Stranded
Insulation Material:	PVC
Certification:	RoHS
Application:	Housing Appliance
Conductor Material:	Copper /CCA
Brand:	ADP/OEM

Product Description

Main Features
1) Conductor: stranded bare copper/CCA
2) Insulation: color coded PVC
3) Number of cores: multi- core
4) Jacket: PVC
5)Temperature:70 ºC
6) Rated voltage: U0 / U is 300/500V and 300/300V.

Specifications

Type	Conductor		Insualtion		Jacket
	Cores × Nom. Area	Max. Resistance at 20°C	Thickness	Min. Resistance at 70°C	Thickness	Min. Dia.	Max.
	mm²	MΩ/km	mm	MΩ/km	mm	mm	mm
227IEC10 (RVV) 300/500V	2×1.0	19.5	0.6	0.01	0.8	6.4	8
	2×1.5	13.3	0.7	0.01	0.8	7.4	9
	2×2.5	7.98	0.8	0.009	1	8.9	11
	3×0.75	26	0.6	0.011	0.8	6.4	8
	3×1.0	19.5	0.6	0.01	0.8	6.8	8.4
	3×1.5	13.3	0.7	0.01	0.9	8	9.8
	3×2.5	7.98	0.8	0.009	1	9.6	12
	4×1.0	19.5	0.6	0.01	0.9	7.6	9.4
	4×1.5	13.3	0.7	0.01	1	9	11

Application
PVC insulated wires is suitable to be fixed wiring of power device, power lighting of home electric equipment and instrument, inner wiring of electric equipment Instrument, electron equipment, automation device etc.

Any inquiry, just feel free to contact with us any time!

Shenzhen ADP Cables Co., Ltd. Was established in 2002 and is a professional manufacturer for Fiber Optic Cable, LAN cables, Coaxial cable, Security Alarm Cable.
Fiber Optic Cable indoor and outdoor, fiber pigtails, fiber patch cable; CAT3/CAT5E/CAT6/CAT6A/CAT7 cable, RJ11/RJ45 patch cord; 1pair -200pair Telelphone cable; Coaxail Cable RG6/RG58/RG59/RG11...SYV/SYWV serises...Fire Alarm Cable. And fiber patch cord, connector, accessories.

Our company is equipped with full sets coloring machines fiber ribbon forming machine, secondary coating lines, cabling lines, meshing machines, twisting machines, inspection equipment and instrument for all electrical, mechanical, temperature and environmental performance.

Our products strictly adhere to ISO 9001, CE and RoHS international standards, which also cover our design, development, services, and management. We have more than 100 employees, including 10 technical personnel. Our annual production value researches to USD200, 000, 000, giving us stable development and increased competitive power within the market.

We will continue being a people-oriented and faithful supplier offering technical support and good customer service. For more information, please visit our website or contact us directly with your questions or inquiries.
