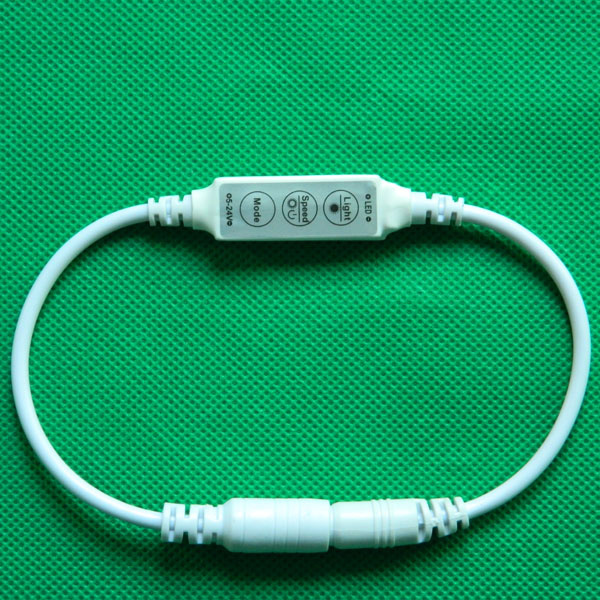

3 Keys Mini LED Dimmer

Name: 3 Keys Mini LED Dimmer
Brand: all-electronics-online.com
SKU: 800842015
Availability: InStock
Rating: 4.8 (63 reviews)

Price:	US $ 0.82-0.83/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LYD-3
Net Weight:	11g
Gross Weight:	11g
Working Temperature:	-20 - 60
Static Power Consumption:	<0.5W
Output Current:	<6A(Each Circuit)
Application:	Toys
Signal Transmission:	IR Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	<50m
Material:	Plastic
Battery Type:	Button Battery
Voltage:	DC5-24V

Product Description

Basic Info

place of origin:	Shenzhen,China	Brand Name:	louita	model no.:	LYD-3
working temperature:	-20-60	voltage:	5-24v	Max.load power:	72w
output:	1 Circuit	output current:	<6A

Product Description
Mini 3 keys Single color controller adopted the advanced computer control chip. Its mainly used to controlled all kinds of led lights,such as:LED source, LED strips,led wall washer,wall Glass curtain lights,etc.It integrated with low cost,easy connection,simple manipulation and others advantages.User can adjust the lights brightness according to their actual requirement.

Technical Parameters:

1.Working temperature:-20-60°C
2. Input voltage:DC12V
3.Output:1 circuit
4.Connection mode:Common anode
5.controller size:L40.0×W12.0×H5mm
6.Net weight:11g
7.Gross weight:11g
8. Static power consumption:<0.5W
9.Output current:<6A(each circuit)
10.Output power: 12V < 72W

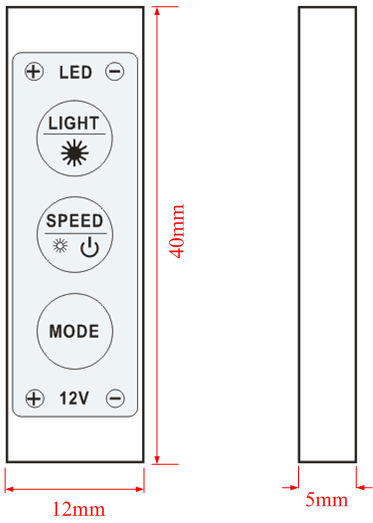

External Dimension

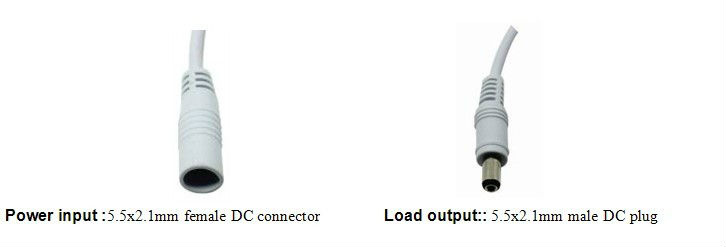

Interface Specification

Introduction of operation

Speed button:In dynamic mode, press this key to adjust the changing speed(total is 10 level of speed);In Static mode, each time you press this button, the brightness would reduce one level (total 10 brightness),press this button last for morn than one second,this mini controller will be turn off, then press random of the key can be turn on the controller again and recover to the same model as that before turn off.

Light button:press this button to switch into the static models,press this button for one time ,the brightness will be increase one level,press this key last more than 1 second, can increase the brightness quickly.

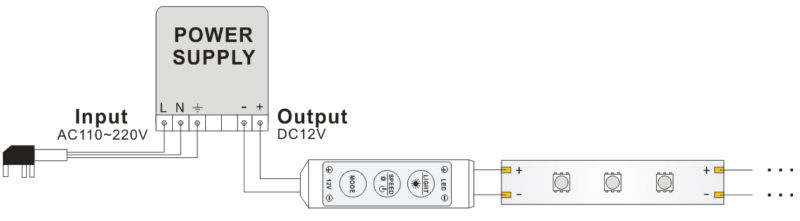

Typical Application:

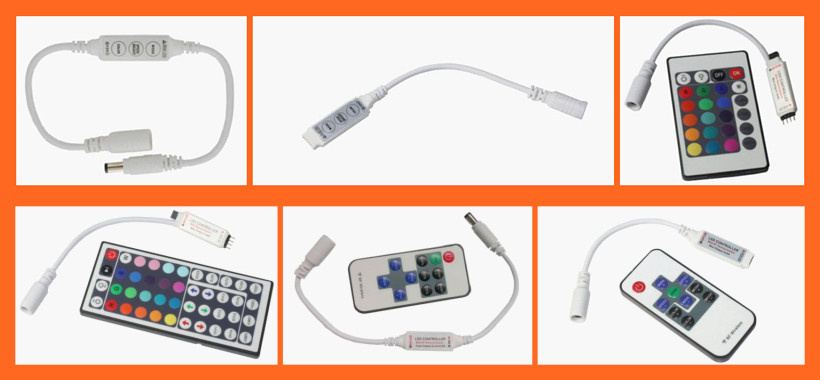

Related Products

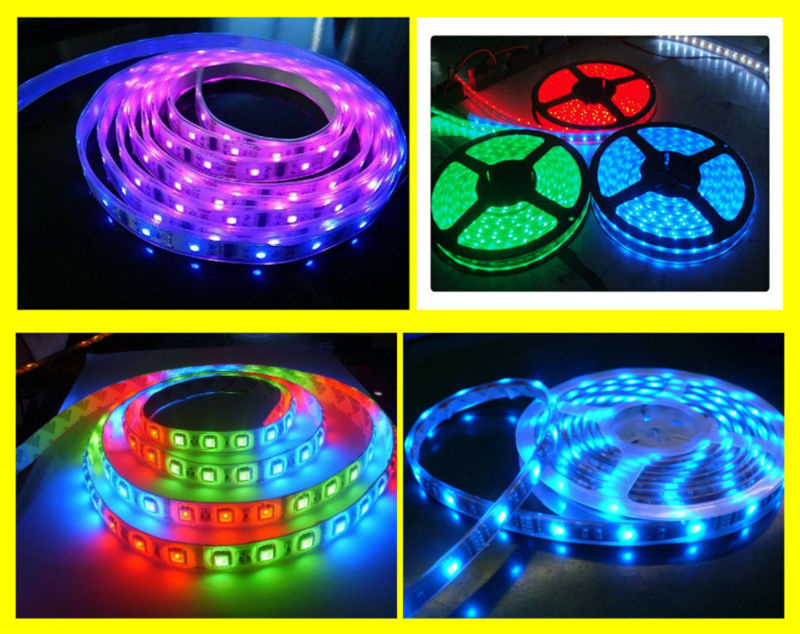

Application:
