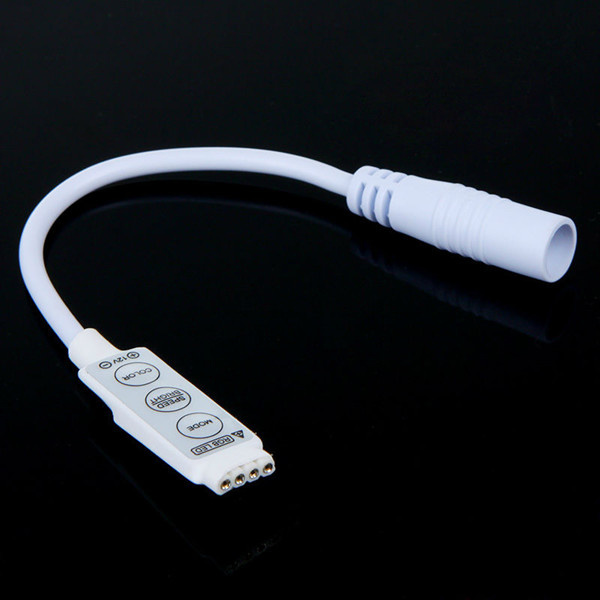

3 Keys Mini RGB Controller

Name: 3 Keys Mini RGB Controller
Brand: all-electronics-online.com
SKU: 800843865
Availability: InStock
Rating: 4.6 (91 reviews)

Price:	US $ 0.82-0.83/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LYD-RGB-3
Net Weight:	11g
Gross Weight:	15g
Working Temperature:	-20 - 60
Application:	Audio / Video Players
Signal Transmission:	IR Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	<50m
Material:	Plastic
Battery Type:	Button Battery
Voltage:	DC5-24V

Product Description

Basic Info

plade of origin:	Shenzhen,China	Brand name:	louita	model no.:	LYD-RGB-3
type:	remote control	Max. laod power:	72w	connection mode:	common anode
net weight:	11g	gross weight	15g	output:	3 circuit
output current:	<2A

Product Description
Mini 3 keys RGB controller adopted the advanced computer control chip. Its mainly used to controlled all kinds of constant voltage led lights,such as:LED source, LED strips,led wall washer,wall Glass curtain lights,etc.It integrated with low cost,easy connection,simple manipulation and others advantages.User can choose the mode of fade, strobe,Blasting flash,flicker,and other Static color model. What's more, this controller have the characteristics of small volume, easy to carry,etc, its popular amount the many markets.
Technical Parameters:
Working temperature:-20-60ºC
Input voltage:DC5-24V
Output:3 circuit
Connection mode:Common anode
Controller size:L40.0×W12.0×H5mm
Net weight:11g
Gross weight:15g

Static power consumption:<0.5W
Output current:<2A*3A(each circuit)
Output power: 12V < 72W

Operations:
MODE key: Switch to dynamic mode. Press this key again to switch among 19 dynamic modes.
SPEED/BRIGHT key: Adjust speed or brightness. At dynamic mode, press this key to change playing speed among 19 levels; At static mode, press this key to change brightness among 20 levels; Press for 2 seconds to switch on/ off.
LIGHT key: Switch to static light change mode.

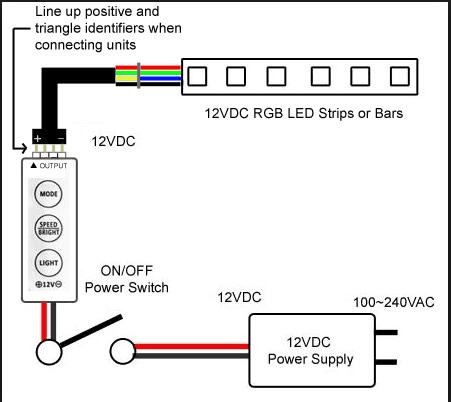

Mini LED Controller 3 Key Dimmer 12V/ 24V for 5050 3528 LED RGB Light Strip
