3 Oz Heavy Copper PCB 2 Layer 1.6mm Circuit Board
| Price: |
US $ 0.52/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-11288-V1.2 |
| Solder Mask Color: |
Blue |
| Copper Thick: |
3 Oz |
| Legend Color: |
White |
| Surface Finish: |
HASL Lead Free |
| Mininum Trace (Mil): |
26 Mil |
| Minimum Gap(Mil): |
12 Mil |
| RoHS Required: |
Yes |
| Thickness of Solder Mask: |
13 Um |
| Warpage : |
≤0.25% |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

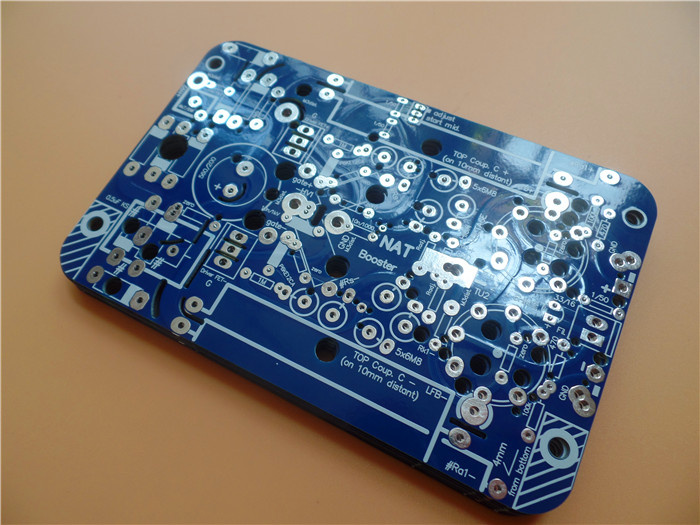

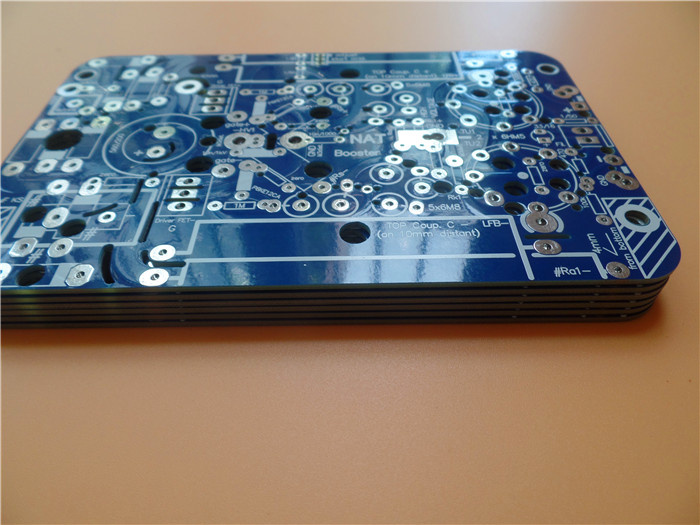

3 oz Heavy Copper PCB 2 Layer 1.6mm Circuit Board with HASL Lead Free Blue soldermask
373
Commodity Introduction
This is a type of 2 layer 1.6mm PCB board for the application of Power audio with HASL pad finish.
The base laminate is from ITEQ, Blue solder mask from Kuangshun and White silkscreen from
Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 20 panel boards
are packed separately.
Parameter & Data Sheet| Number of Layers | 2 |
| Board Type | Double Sided PCB |
| Board Thickness | 1.6 mm +/-0.16 |
| Board Material | FR-4 |
| Board Material Supplier | ITEQ |
| Tg Value of Board Material | 135ºC |
| |
| PTH Cu thickness | ≥20 um (See hole wall details) |
| Inner Iayer Cu thicknes | N/A |
| Surface Cu thickness | 105 um (3oz) |
| |
| Solder Mask Type and Model No. | KSM-6189BL04 / KSM-19H01 |
| Solder Mask Supplier | KUANG SHUN |
| Solder Mask Colour | Blue |
| Number of Solder Masks | 2 |
| Thickness of Solder Mask | 13um |
| |
| Type of Silkscreen Ink | IJR-4000 MW300 |
| Supplier of Silkscreen | TAIYO |
| Color of Silkscreen | White |
| Number of Silkscreen | 1 |
| |
| Mininum Trace (mil) | 26 mil |
| Minimum Gap(mil) | 12 mil |
| |
| Surface Finish | HASL LF |
| RoHS Required | Yes |
| Warpage | ≤0.25% |
| |
| Thermal Shock Test | Pass, 288±5ºC,10 seconds, 3 cycles.
No delamination, no blistering. |
| Solderablity Test | Pass, 255±5ºC,5 seconds Wetting Area Least 95% |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H & IPC-6012C Class 2 |
Microsection Hole Wall (um)| Hole Wall Cu Thickness | ≥20 um | Hole Wall Cu Roughness | ≤25.4 um |
| NO. | A | B | C | D | E | F | AVE |
| 1 | 26.697 | 25.497 | 25.557 | 27.197 | 26.477 | 26.107 | 24.647 |
| 2 | 26.401 | 25.201 | 25.261 | 26.901 | 26.901 | 25.811 | 25.443 |
| 3 | 24.618 | 23.418 | 23.478 | 25.118 | 24.398 | 24.028 | 20.722 |
Outline dimension Unit: mm| NO. | Required Dimension (toerance) | Actual dimension |
| 1 | 149.12 | ±0.15 | 149.10 | 149.12 | 149.11 | 149.12 |
| 2 | 89.33 | ±0.15 | 89.35 | 89.30 | 89.33 | 89.31 |
Hole Size and Slot Dimension (mm)| NO. | Requerment Dimension (tolerance) | PTH/NPT | Actual dimension |
| 1 | 0.700 | ±0.076 | Y | 0.700 | 0.675 | 0.725 | 0.700 |
| 2 | 1.100 | ±0.076 | Y | 1.100 | 1.075 | 1.125 | 1.100 |
| 3 | 1.500 | ±0.076 | Y | 1.500 | 1.475 | 1.525 | 1.500 |
| 4 | 2.550 | ±0.076 | Y | 2.550 | 2.525 | 2.575 | 2.550 |
| 5 | 3.200 | ±0.076 | Y | 3.200 | 3.175 | 3.225 | 3.200 |
| 6 | 4.000 | ±0.076 | Y | 4.000 | 3.975 | 4.025 | 4.000 |
