| Prod Model: |
HE33 10K-200K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inversion: |
Isolated Transformer |
| Warranty: |
1year |
| Parallel Mode: |
N+X |
| RS232: |
Support |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Upsen |
Product Description

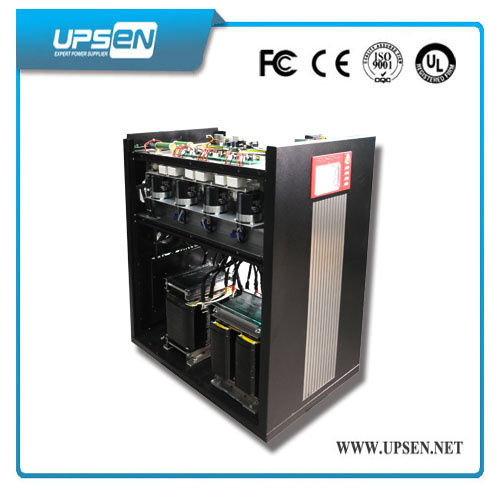

3 phase industrial Pure Sine Wave Low Frequency online UPS
Low Frequency Online UPS High Efficiency Strar Series HE33 10K-200K(3Ph in/3Ph out)
Key Features
1:DSP control
2:Double CPU control
3:Strong shock resistance ability
4:High instantaneous overload capacity
5:Energy saving and Environment Friendly
6:High security dual ac power input function
7:Full protection against over-discharge, overcharge, over load
8:Inverter IGBT technology with high frequency communication
9:Isolated transformer input, dramatically absorb and resist to electricy surge
10:Support battery cold start and mains supply self-stating, satisfy the user's requirement
11:Advanced "N+X" parallel and redundancy technology, high reliability, and small circular current.
12:Intelligent battery management directly checking and setting charge and setting charge and discharge of battery on LCD extends battery life
Application
Large-medium computer data center, industrial process Building Automation System BAS, weak electricity system integration Communication, Telecom, Large Data Rooms, SMT, Medical Equipment etc.
Technical Specification
| High Efficiency Strar Series HE33 10K-200K |
| Model | HE33 Series UPS |
| Capacity (VA) | 10K | 15K | 20K | 30K | 40K | 60K | 80K | 100K | 120K | 160K | 200K |
| Noninal output capacity | 8KW | 12KW | 16KW | 24KW | 32KW | 48KW | 64KW | 80KW | 96KW | 128KW | 160KW |
| Operate type | Double conversion online type |
| Input | Nominal voltage | 220V/380, 230/400, 240/415V |
| Voltage Tolerance | 380/400/415V±25% |
| Frequency | 50Hz/60Hz±5% |
Permitted Frequency
Tolerance |
±2% (selectable from ±1% to 5% from the front panel) |
| Soft start | 0-100% in 30" (selectable) |
| Input power factor | 0.95(with input filter) |
| Standard features | Back Feed protection separable bypass line |
| | Phase | Three phase +N+G |
| Output | Voltage | 220V/380, 230/400, 240/415V, ±1% (stable load), ±5%(active load) |
| Frequency | 50/60Hz (±5%, AC mode), 50/60Hz (±1%, Battery mode) |
| Static stability | ±5% in 19ms |
| Distortion | Linear load <3%, non linear load<5% |
| Power factor | 0.8 |
| Output wave | Pure sine wave |
| Crest factor | 3:01 |
| Battery voltage | Standard battery voltage | 384V | 432V | 480V |
| Floating charge | 432V | 486V | 540 |
| Terminal voltage | 336V | 378V | 420V |
| Charge current | 1A-50A (Can calculate and set according to battery configuration software) |
Maximum Discharge
Current |
28 | 42 | 56 | 85 | 113 | 169 | 225 | 282 | 338 | 381 | 507 |
| Main Function | Active voltage change | 0-100%±5% |
| Instant recover time | <10ms |
| Imbalance voltage | <±5%,<±1%( Balance load voltage) |
| Overload capacity | 125%→10min,150%→1min |
| Static switch | Automatic |
| Protection | UPS over current, short circuit, battery low voltage, over heat |
| Cold method | Compel aeration ( temperature control mode) |
| Noise | 60-65dB |
| Display | LED,LCD display |
| Remote signalling | Voltage-free contacts |
| Remote commands | EPO and bypass |
Communication Port
(Optional) |
double RS232 + remote contacts + 2 communication interface slots |
| Alarm | Alarm with buzzer and indicators |
| Environment | Temperature: 0-40C Humidity: 0-90% |
Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB boards
2: Full protection against over-discharge, overcharge, over load.
3: Strong shock resistance ability
4: Professional technical support before and after sales
5: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: Free OEM & ODM Service
7: Competitive price, quality and mature products
