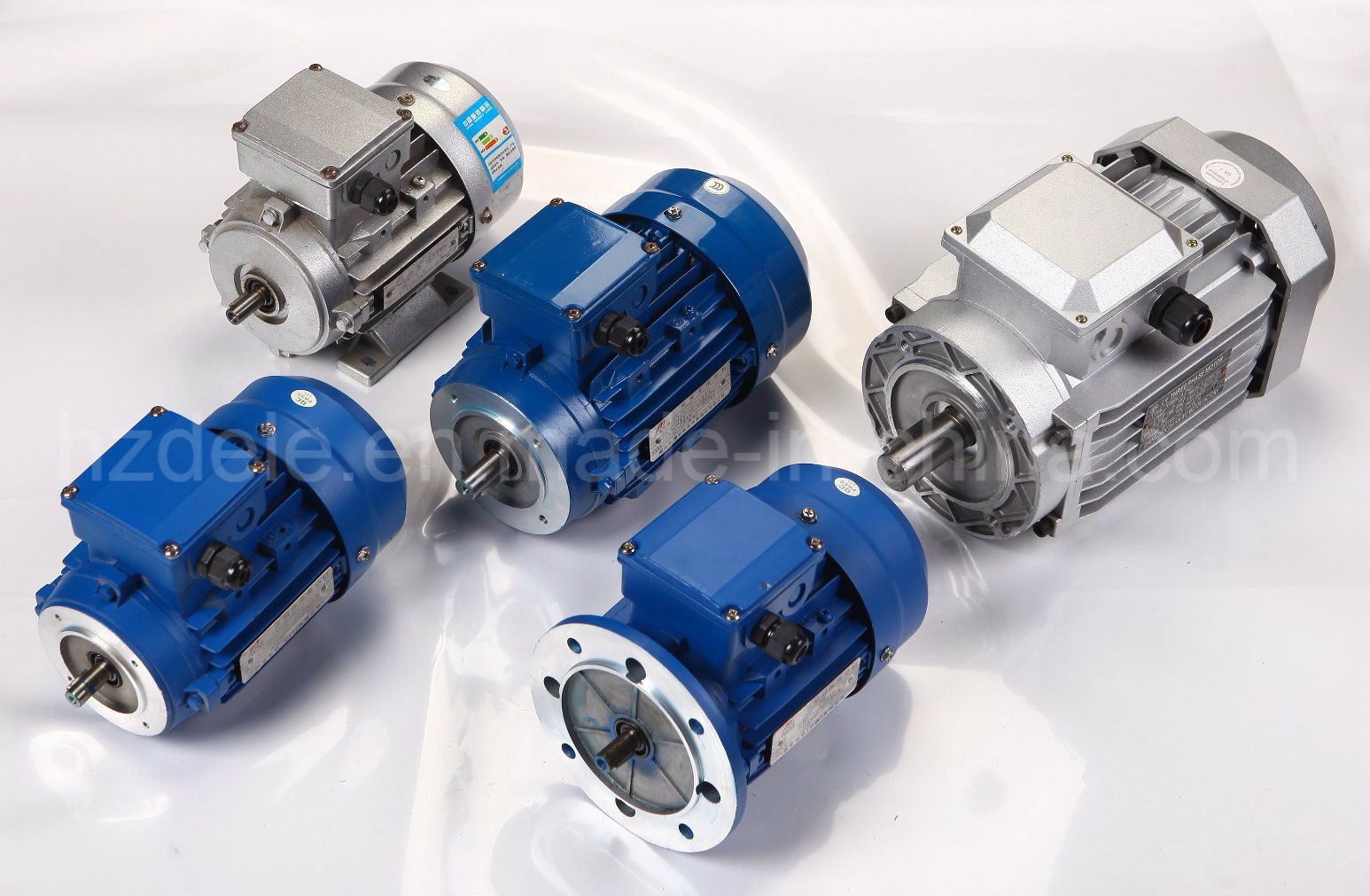

3 Phase Ys 380V Series Induction Motor

Name: 3 Phase Ys 380V Series Induction Motor
Brand: all-electronics-online.com
SKU: 816199105
Availability: InStock
Rating: 4.5 (59 reviews)

Price:	US $ 40.25-42/Piece
Min Order:	20/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	YS
Product Name:	3 Phase Ys Series Induction Motor
Voltage:	380V/50Hz
Reveloution:	1400r/Min
MOQ:	20pieces
Warranty:	12months
Usage:	Industrial
Type:	AC
Certificate:	CCC/VDE/ISO
IP:	54
Application:	Car
Operating Speed:	Adjust Speed
Number Of Stator:	Three-Phase
Species:	YS Series Three-Phase
Rotor Structure:	Winding Type
Casing Protection:	Explosion-Proof Type
Starting Mode:	Auto-induction Voltage-reduced Starting
Brand:	Dele

Product Description

Features
. Frame Size Range: h56-H160
. Rated Power Range: 0.06kw-18.5kw(50Hz)
. Housing Material: Cast Aluminium
. Standard Color: MS(IE2)-Lotus leaf green: MS-lake blue
. Standard Mounting Constructon: IEC60034-7
. Protect Enclosed Class: IP54/IP55(IEC60034-5)
. Insulation Class: F
. MS(IE2)series 2P, 4P, 6P motors(power arrange: 0.75KW-18.5KW)meet with Efficiency Grade 3
according to Standard GB18613-2012 and Efficiency IE2 according to tandard IEC60034-30
. MS(IE1) series 2P, 4P, 6P motors (power arrange: 0.75KW-18.5KW)meet with Efficiency
IE1according to tandard IEC60034-30
. The special winding design can work for multi-votages(50Hz or 60Hz)
. Cooling Method: IC411(IEC60034-6)
. Connecting Method: <3kw adapt Y, >4kw adapt , also can be done according to the special request
. Duty:S1
. Ambient Temperature:-15 C-40 C
. altitude:1000m

chula

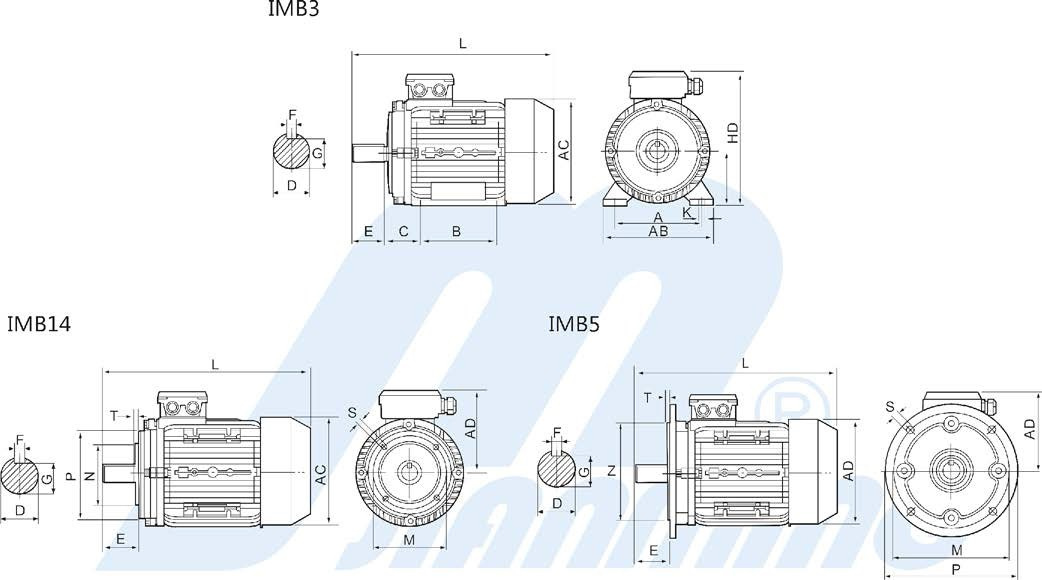

Outline & lnstallation Dimensions

Frame Size	Installation Size (mm)									Installation Size (mm)					Installation Size (mm)					Outline Dimension
	Installation Size (mm)									IMB14					IMB5					(mm)
	A	B	C	D	E	F	G	H	K	M	N	P	S	T	M	N	P	S	T	AB	AC	AD	HD	L
56	90	71	36	9	20	3	7.2	56	6	65	50	80	M5	2.5	98	80	120	7	3	110	120	110	155	195
63	100	80	40	11	23	4	8.5	63	7	75	60	90	M5	2.5	115	95	140	10	3	130	130	115	155	230
71	112	90	45	14	30	5	11	71	7	85	70	105	M6	2.5	130	110	160	10	3.5	145	145	125	165	255
80	125	100	50	19	40	6	15.5	80	10	100	80	120	M6	3	165	130	200	12	3.5	160	165	135	185	295
90S	140	100	56	24	50	8	20	90	10	115	95	140	M8	3	165	130	200	12	3.5	180	185	145	215	335
90L	140	125	56	24	50	8	20	90	10	115	95	140	M8	3	165	130	200	12	3.5	180	185	145	235	360
100L	160	140	63	28	60	8	24	100	12	130	110	160	M8	3.5	215	180	250	15	4	205	215	170	235	380
112M	190	140	70	28	60	8	24	112	12	130	110	160	M8	3.5	215	180	250	15	4	245	240	180	255	400
132S	216	140	89	38	80	10	33	132	12	165	130	200	M10	4.0	265	230	300	15	4	280	275	195	285	475
132M	216	178	89	38	80	10	33	132	12	165	130	200	M10	4.0	265	230	300	15	4	280	275	195	325	515
160M	254	210	108	42	110	12	37	160	15	215	180	250	M12	4.0	300	250	350	15	5	320	330	255	325	615
160L	254	254	108	42	110	12	37	160	15	215	180	250	M12	4.0	300	250	350	15	5	320	330	255	420	670
180M	279	279	121	48	110	14	42.5	180	15	265	230	300	M15	4.0	300	250	350	19	5	355	380	280	455	700
180L	279	279	121	48	110	14	42.5	180	15	265	230	300	M15	4.0	300	250	350	19	5	355	380	280	455	740
