(IE2) Series Three-Phase Asynchronous Electric Motor
| Price: |
US $ 30/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
MS6316-90W-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Ms |
| Method: |
B13 |
| Application: |
Car |
| Operating Speed: |
Adjust Speed |
| Number Of Stator: |
Three-Phase |
| Species: |
YS Series Three-Phase |
| Rotor Structure: |
Winding Type |
| Casing Protection: |
Closed Type |
| Starting Mode: |
Auto-induction Voltage-reduced Starting |
Product Description
Features. Frame Size Range: h56-H160
. Rated Power Range: 0.06kw-18.5kw(50Hz)
. Housing Material: Cast Aluminium
. Standard Color: MS(IE2)-Lotus leaf green: MS-lake blue
. Standard Mounting Constructon: IEC60034-7
. Protect Enclosed Class: IP54/IP55(IEC60034-5)
. Insulation Class: F
. MS(IE2)series 2P, 4P, 6P motors(power arrange: 0.75KW-18.5KW)meet with Efficiency Grade 3
according to Standard GB18613-2012 and Efficiency IE2 according to tandard IEC60034-30
. MS(IE1) series 2P, 4P, 6P motors (power arrange: 0.75KW-18.5KW)meet with Efficiency
IE1according to tandard IEC60034-30
. The special winding design can work for multi-votages(50Hz or 60Hz)
. Cooling Method: IC411(IEC60034-6)
. Connecting Method: <3kw adapt Y, >4kw adapt , also can be done according to the special request
. Duty:S1
. Ambient Temperature:-15 C-40 C
. altitude:1000m

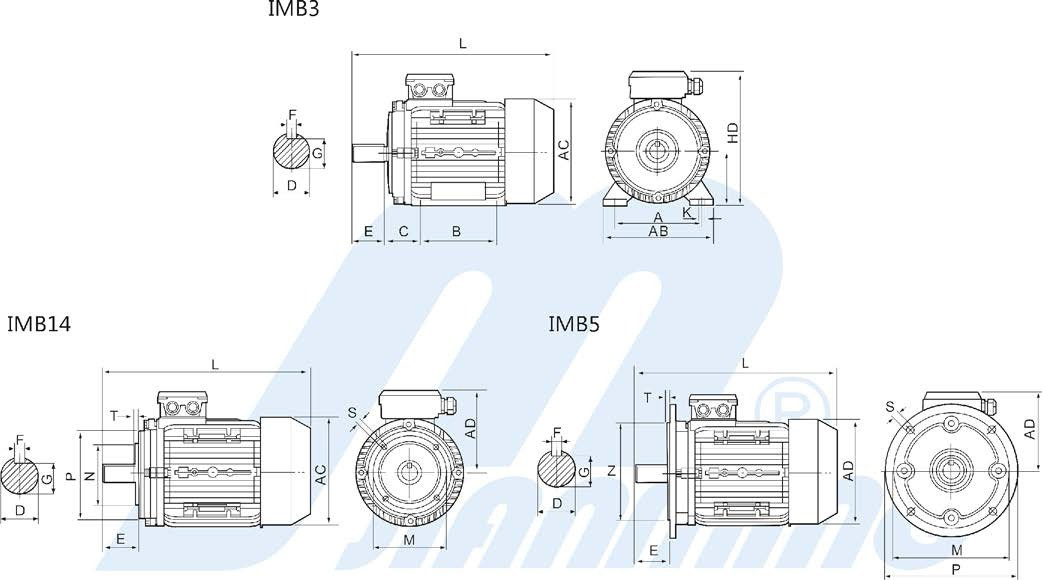

Outline & lnstallation Dimensions
| Frame Size | Installation Size (mm) | Installation Size (mm) | Installation Size (mm) | Outline Dimension |
| IMB14 | IMB5 | (mm) |
| A | B | C | D | E | F | G | H | K | M | N | P | S | T | M | N | P | S | T | AB | AC | AD | HD | L |
| 56 | 90 | 71 | 36 | 9 | 20 | 3 | 7.2 | 56 | 6 | 65 | 50 | 80 | M5 | 2.5 | 98 | 80 | 120 | 7 | 3 | 110 | 120 | 110 | 155 | 195 |
| 63 | 100 | 80 | 40 | 11 | 23 | 4 | 8.5 | 63 | 7 | 75 | 60 | 90 | M5 | 2.5 | 115 | 95 | 140 | 10 | 3 | 130 | 130 | 115 | 155 | 230 |
| 71 | 112 | 90 | 45 | 14 | 30 | 5 | 11 | 71 | 7 | 85 | 70 | 105 | M6 | 2.5 | 130 | 110 | 160 | 10 | 3.5 | 145 | 145 | 125 | 165 | 255 |
| 80 | 125 | 100 | 50 | 19 | 40 | 6 | 15.5 | 80 | 10 | 100 | 80 | 120 | M6 | 3 | 165 | 130 | 200 | 12 | 3.5 | 160 | 165 | 135 | 185 | 295 |
| 90S | 140 | 100 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 115 | 95 | 140 | M8 | 3 | 165 | 130 | 200 | 12 | 3.5 | 180 | 185 | 145 | 215 | 335 |
| 90L | 140 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 115 | 95 | 140 | M8 | 3 | 165 | 130 | 200 | 12 | 3.5 | 180 | 185 | 145 | 235 | 360 |
| 100L | 160 | 140 | 63 | 28 | 60 | 8 | 24 | 100 | 12 | 130 | 110 | 160 | M8 | 3.5 | 215 | 180 | 250 | 15 | 4 | 205 | 215 | 170 | 235 | 380 |
| 112M | 190 | 140 | 70 | 28 | 60 | 8 | 24 | 112 | 12 | 130 | 110 | 160 | M8 | 3.5 | 215 | 180 | 250 | 15 | 4 | 245 | 240 | 180 | 255 | 400 |
| 132S | 216 | 140 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | 165 | 130 | 200 | M10 | 4.0 | 265 | 230 | 300 | 15 | 4 | 280 | 275 | 195 | 285 | 475 |
| 132M | 216 | 178 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | 165 | 130 | 200 | M10 | 4.0 | 265 | 230 | 300 | 15 | 4 | 280 | 275 | 195 | 325 | 515 |
| 160M | 254 | 210 | 108 | 42 | 110 | 12 | 37 | 160 | 15 | 215 | 180 | 250 | M12 | 4.0 | 300 | 250 | 350 | 15 | 5 | 320 | 330 | 255 | 325 | 615 |
| 160L | 254 | 254 | 108 | 42 | 110 | 12 | 37 | 160 | 15 | 215 | 180 | 250 | M12 | 4.0 | 300 | 250 | 350 | 15 | 5 | 320 | 330 | 255 | 420 | 670 |
| 180M | 279 | 279 | 121 | 48 | 110 | 14 | 42.5 | 180 | 15 | 265 | 230 | 300 | M15 | 4.0 | 300 | 250 | 350 | 19 | 5 | 355 | 380 | 280 | 455 | 700 |
| 180L | 279 | 279 | 121 | 48 | 110 | 14 | 42.5 | 180 | 15 | 265 | 230 | 300 | M15 | 4.0 | 300 | 250 | 350 | 19 | 5 | 355 | 380 | 280 | 455 | 740 |
