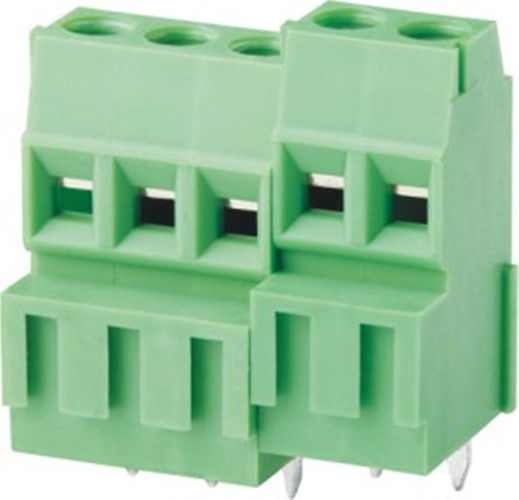

30-16 AWG Rising Clamp Terminal Block (WJEEK350/381)

Prod Model:	WJEEK350/WJEEK381-3.5/3.81mm
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pitch:	3.5/3.81mm
Rated Voltage:	300V
Rated Current:	10A
Strip Length:	5-6mm
Application:	PCB
Environmental Protection:	Resistance to Environmental
Connection Mode:	In-Line Connector
Shape:	Rectangle
Contact Termination Form:	Welding Connection
Brand:	Wanjie

Product Description

Our advantages:
1. High quality
2. Best price
3. Better service
4. Fast delivery
5. Free samples
6. Prompt feedback

PCB universal screw terminal blocks, this typical feature of the screw connection system is characterized by the easy connection and extremely high contact strengths.

CIXI WANJIE ELECTRONIC CO., LTD was founded in 1992 and specializes in the production of terminal blocks. We have passed the ISO9001:2008 quality management system, the products have been approved by VDE, SGS, CE, CB, CQC, and CUS.

With many years development, we have built an excellent management team and have our own R&D center, mould production, plastic injection, hardware stamping and automatic assembling workshop. For better service to the customers, we can also design, develop and produce according to customer's requirement for OEM/ODM products .

Product Description-WJEEK350/381

Material
Screws	M2 Steel Zn plated
Clamp	Brass, Ni plated
Wire guard	Brass, Sn plated
Housing	PA66, UL94V-0
Electrical
Rated voltage	300V
Rated current	10A
Wire range	30-16AWG 1.0mm²
Contact resistance	20mΩ
Insulation resistance	500mΩ/1000V
Withstanding voltage	AC 2000V/1 Min
Mechanical
Temp. Range	-40º C~ +105º C
MAX Soldering	+250º C, for 5 Sec
Torque	2.04kgf-cm/0.2Nm/1.77Lbin
Strip length	5-6mm

If you can't find the exact product you need in the pictures, please don't go away. Just contact me freely or send your sample and drawing to us. We will reply you as soon as possible.

Material
Screws: M2.0 Steel Zn plated
Cage: : Brass, Ni plated
Pin header: Brass, Sn plated
Housing: PA66, UL94V-0

Electrical
Rated voltage: 300V
Rated current: 10A
Wire range: 30-16AWG 1.0mm²
Contact resistance: 20mΩ
Insulation resistance: 500mΩ /DC500V
Withstanding voltage: AC 2000V/1 Min


Mechanical
Temp. Range: -40C°~ +105C°
MAX Soldering: +250C°, for 5 Sec.
Torque: 2.04kgf. Cm/0.2Nm(1.77lb. In)
Strip length: 5-6mm
