3000W E-Vehicle DC/DC Power Supply for Air Conditioning System

Name: 3000W E-Vehicle DC/DC Power Supply for Air Conditioning System
Brand: all-electronics-online.com
SKU: 826673275
Availability: InStock
Rating: 4.5 (64 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD3000-EVDYL01-27
Output Voltage:	27.5 VDC
Output Current:	110A
Output Type:	Single
Warranty:	2 Years
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Certification:	RoHS
Output Power:	3000W
Input Voltage:	200 - 880 VDC
Power Supplying System:	DC/DC
Brand:	Fsp-Powerland

Product Description

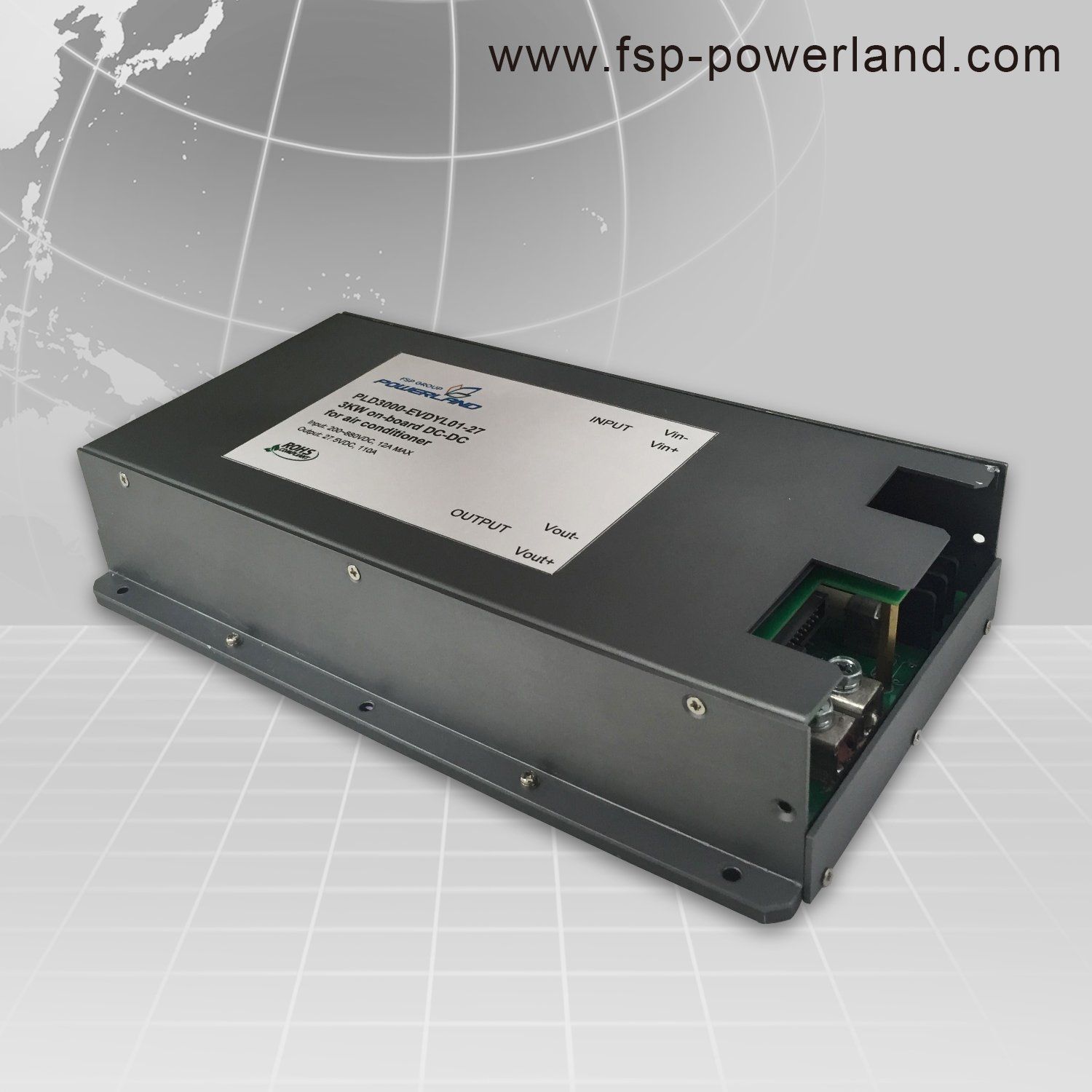

3000W E-Vehicle DC/DC Power Supply for Air Conditioning System

Powerland's 3000W DC/DC power supply for air conditioning system is designed with extended protection functions, the next-generation semiconductor power devices, and the extraordinary thermal management. It is the industry's first design to cover full input voltage range of e-vehicle on-board air conditioning system DC/DC power supply, feasible for multiple electric vehicles.

Features
Full Input Voltage Coverage for E-Vehicle Air conditioning System
Input Voltage: 200~880Vdc
High Power Density and High Maintainability
Ultra High Efficiency, up to 95.5%
Advanced EMI Design
Suitable for High Inrush Current Application
Designed with Next-Generation Semiconductor Devices
Free Air Cooling
Max Case Temperature@ 100ºC
CAN Interface
All-Around Protections: OVP, OCP, SCP, OTP

Model Specifications

Model Number	Output Power	Output Voltage	Output Current
PLD3000-EVDYL01-27	3000W	27.5V	110A

Specifications

Models	PLD3000-EVDYL01-27
Output Voltage	27.5V
Output Current	110A
Max. Output Voltage	27.5V
Output Voltage @ Open Circuit	27.5V
Voltage Accuracy	±1%
Output Power	3000W
Input Voltage	200~880Vdc
Max. Input Current	12A
Max. Input Power	3600W
Communication	CAN
Efficiency	95.5%
On/Off Control	Yes
Protections	OVP, OCP, SCP, OTP
Ingress Protection	IP67 (With System)
Working Temperature	-40~65ºC
Cooling	Free Air Cooling
Max. Case Temperature	100ºC
EMI	Comply with GB18655
Isolation	3000Vdc
Dimension (LxWxH)	300x172x65mm
Weight	3.5kg
Life Time	50,000 hours at 40ºC, 380Vdc Input, and Continuous Full Load Output

Our Service & Payment

FSP-Powerland Technology Inc. is a leading customized power company, providing full service and solutions for industial, military, medical and consumer applications. Since established in spring 2009, Powerland has attracted international expertise into its R&D team. Powerland never stops integrating technology innovation with experienced product development, to design and manufacture high-end power electronics products featured with high efficiency, high reliability, super long life, and high power density.

Since its establishment, Powerland has been focusing on green power products, including LED lighting power, solar power, MID/large-scale battery power, and other high-efficiency power supplies. In addition, to strengthen our technology and market competitiveness, Powerland has established strategic cooperation relationships with multiple global companies, and carries on the customized design service for challenging power solutions.

Looking into the future, Powerland will continue our "Me-First" product strategy, and will extend our advantages in leading-edge technologies. Together with the solid base of FSP-Group, and our sharp market insights and outstanding manufacturing quality, Powerland looks into "breaking limits, establishing the horizon" in green energy and power electronics field
