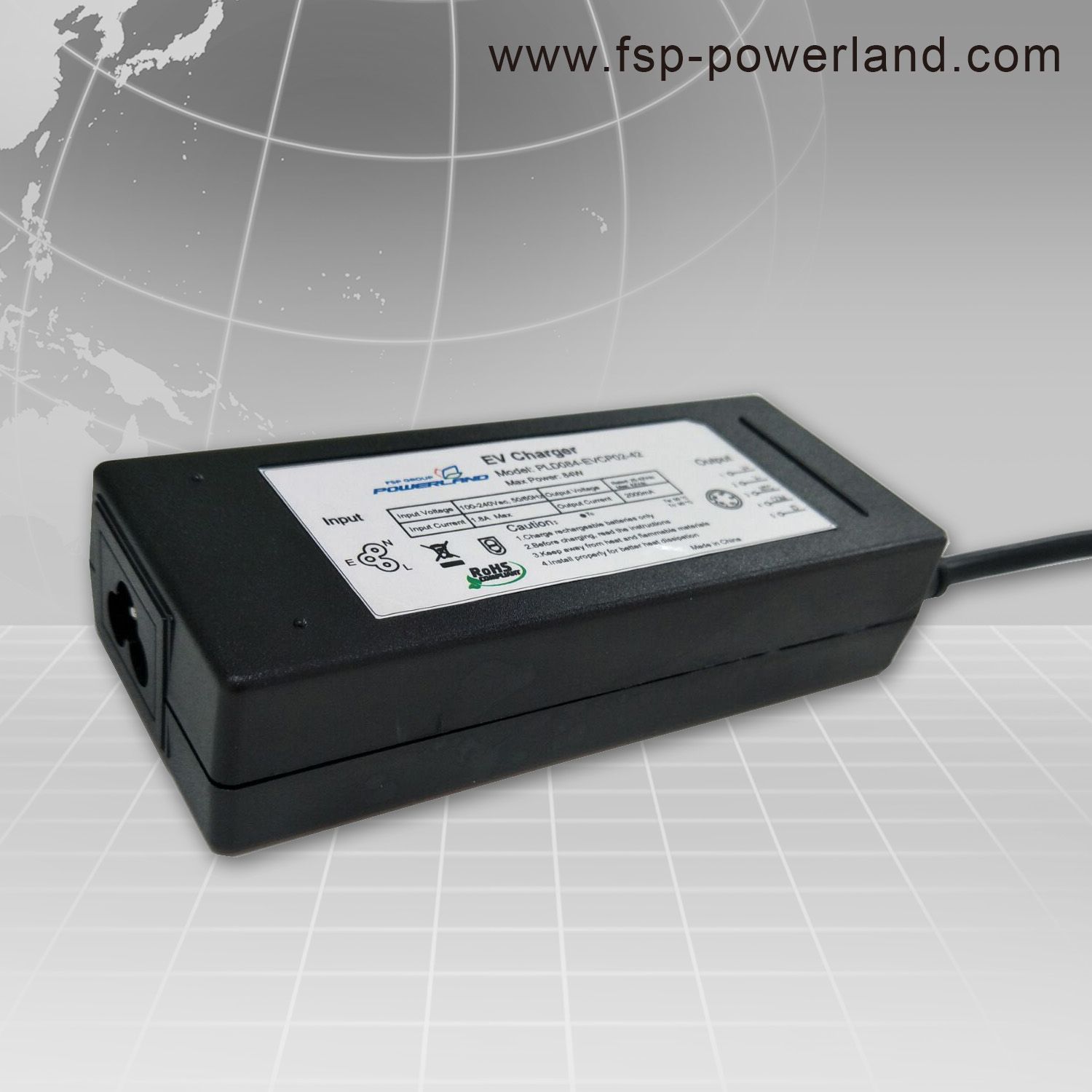

84W 36V 2A Lithium Battery Charger

Name: 84W 36V 2A Lithium Battery Charger
Brand: all-electronics-online.com
SKU: 817951085
Availability: InStock
Rating: 4.3 (36 reviews)

Price:	US $ 19.5-19.7/Piece
Min Order:	2000/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD084-EVCS01-42
Output Power:	84W
Color:	Black
Warranty:	2 Year
Type:	Lithium Ion Battery Charger
Charging Type:	Electric Charger
Principle:	PWM

Product Description

84W 36V 2A Lithium Battery Charger

Powerland's 36V Lithium battery chargers are designed with ultra-high efficiency, as well as full metal case enclosure. The extraordinary performances of low power dissipation and water proof provide the chargers high reliability and super long life time. This series of chargers offer solid power conversions for applications such as e-vehicles, e-bikes, e-motorcycles, e-boat, e-machines, etc.

Features
Universal AC Input :90~264 Vac
Output Power:84W
High ReliabilityEfficiency Up to 93%
All-around Protections:OVP,OCP,SCP,OTP
Low Temperature Start Up -20 ºC
High Temperature Full Load Operation:50 ºC
Three Times Life Time
2 Year Warranty

Model Specifications

Model Number	Output Power	Output Voltage	Output Current	Output Current Range
PLD084-EVCS01-42	84W	25~42V	2A	95~105%Io

Specifications

Model	PLD084-EVCS20-42
Output Voltage	25V~42V
Output Current	2A
Max. Output Voltage (Float Charging)	42V
Output Voltage @ Open Circuit	42V
Current Accuracy	±5%
Voltage Accuracy	±0.5%
Output Power	84W
Input Voltage Range	90~264Vac
Input Frequency Range	47-63Hz
Input Current(MAX)	1.5A@115Vac 1A@230Vac
Max. Input Power	96W
Efficiency	88%@115Vac 90%@230Vac
Protections	OVP, OTP , SCP, Open Circuit Protection
Environmental Protection Rating	IP20
Working Temp	-20ºC~+50ºC
Cooling	Free Air Cooling
Max Case Temp. (o C)	<55ºC@25ºC Ambient Temperature
Surge Protection	1kV DM, 2kV CM
Isolation Test	Primary to Secondary: 3000Vac/10mA max./60s Primary to Earth: 1500Vac/10mA max./60s Secondary to Earth: 500Vac/10mA max./60
Dimension	105x62x31mm(LxWxH)
Weight	0.75kg
Life Time	30,000 hours at 25ºC, 230Vac Input, and Continuous Full Load Output
