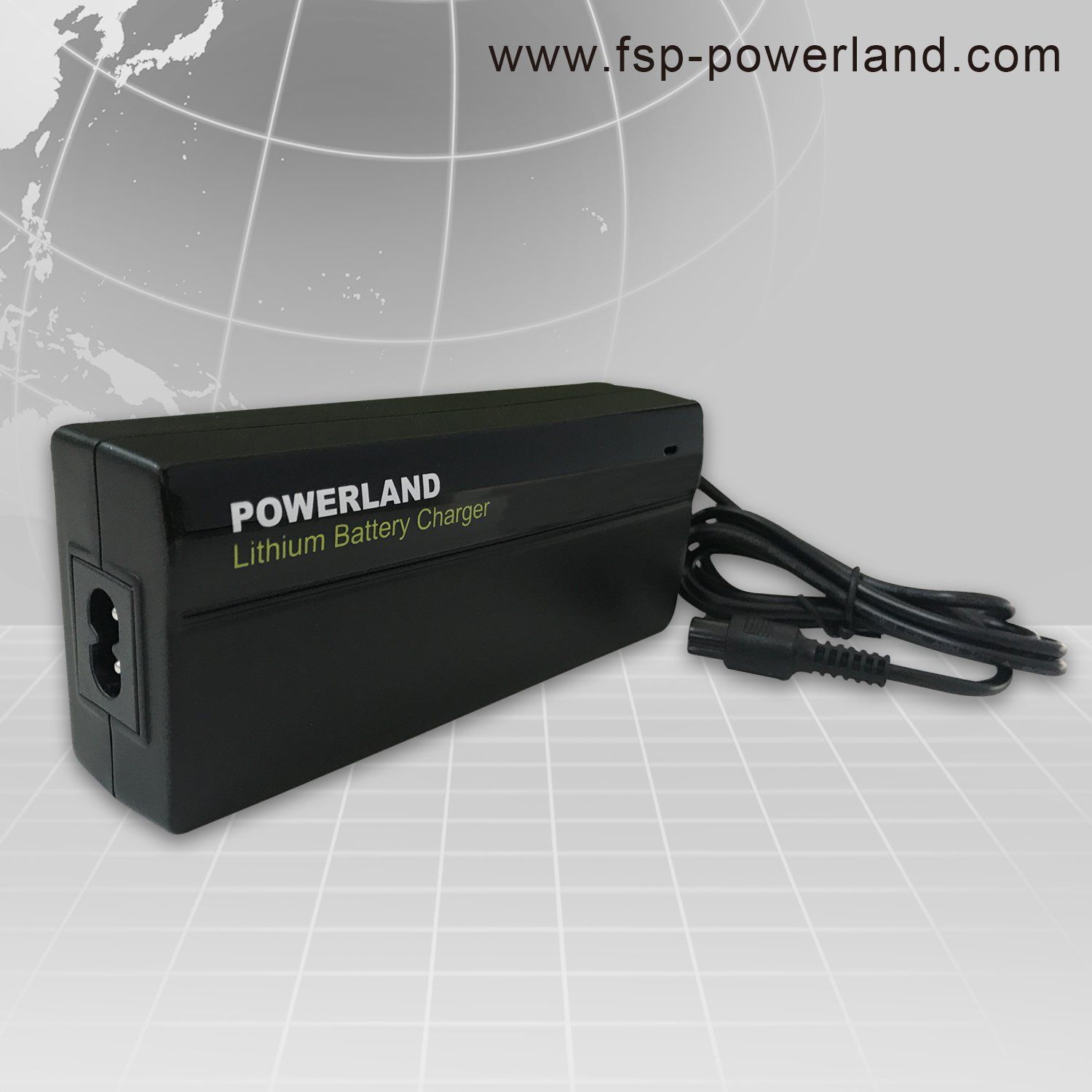

85W 12V~64V 0.5A~4A General Purpose Lithium Battery Charger
| Price: |
Negotiable/Piece |
| Min Order: |
300/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
PLD085G-XXXYYYY |
| Output Power: |
85W |
| Color: |
Black |
| Warranty: |
2 Year |
| Charging Type: |
Electric Charger |
| Type: |
Lithium Battery Charger |
| Principle: |
PWM |
Product Description
85W 12V~64V 0.5A~4A General Purpose Lithium Battery ChargerPowerland's 85W general purpose Lithium battery chargers are designed with CoC V5, DoE Level VI efficiency standard, high reliability and super long life time. This series of chargers cover the output voltage of 12~64V, suitable for a wide application with 4~15 Lithium battery cells in series, such as electric tools, escooters, e-bikes, Lithium battery packs etc.Features• Comply with CoC V5 & DoE Level VI
• No-Load Consumption ≤0.21W
• Universal AC Input: 90~264Vac
• Output Voltage: 12~64V (4~15 Lithium Battery Cells in Series)
• 40ºC Full Load Operation without Derating
• Constant Voltage / Constant Current Charging
• All-Around Protections: OVP, OCP, SCP, OTP
• Built-In LED Charging Status Indicator
• 5000m Altitude Operation
• Global Safety Certification: UL, CE, CCC, KC, PSE, CB, GS, SAA
• RoHS Compliant
• World-Wide Input/Output Connectors AvailableModel Name Definition | Model Number | Output Power | Output Current | Output Voltage | Suitable for Lithium
Battery Cell in Series |
PLD085G-XXXYYYY | 85W | 0.5A~4A | 12V-64V | 4~15S |
Note: XXX stands for charging voltage, e.g. 420 stands for 42V. XXX=120~640, with step at 1, i.e. the charging voltage setting step is 0.1V. YYYY stands for charging current, e.g. 0200 stands for 2A. YYYY=0050~0400, with step at 1, i.e. the charging current setting step is 10mA. The combination of XXX and YYYY should limit the power of the charger to 85W.The Main Models| Model Number | Output Power | Output Current | Output Voltage | Suitable for Lithium
Battery Cell in Series |
| PLD085G-6300135 | 85W | 45~63V | 1.35A | 15S |
| PLD085G-5460156 | 85W | 39~54.6V | 1.56A | 13S |
| PLD085G-4200200 | 85W | 30~42V | 2.00A | 10S |
| PLD085G-2940289 | 85W | 21~29.4V | 2.89A | 7S |
| PLD085G-1680400 | 85W | 12~16.8V | 4.00A | 4S |
Electrical Specifications
Model
| PLD085G-6300135 | PLD085G-5460156 | PLD085G-4200200 | PLD085G-2940289 | PLD085G-1680400 |
Output Voltage
| 45~63V | 39~54.6V | 30~42V | 21~29.4V | 12~16.8V |
Full Charging Voltage
| 63V | 54.6V | 42V | 29.4V | 16.8V |
Constant Charging Current
| 1.35A | 1.56A | 2A | 2.89A | 4A |
Current Accuracy
| ±5% |
Voltage Accuracy
| ±1% |
Output Power
| 85W | 85W | 85W | 85W | 85W |
Input Voltage Range
| 90~264Vac |
Max. Input Voltage
| 320Vac, 20 seconds |
Input Frequency Range
| 47-63Hz |
Max.Input Current
| 1.1A@230Vac |
Max. Input Power
| 105W@230Vac |
Efficiency Standards
| DoE Level VI, CoC V5.0 |
Average Efficiency
| 88% min. @ 100~240Vac, 25ºC |
No-Load Consumption
| ≤ 0.21W @ 110Vac/220Vac |
Protections
| OVP, OTP , SCP, Open Circuit Protection |
Storage Temperature
| -40ºC~85ºC |
Working Temp
| -10ºC~+40ºC |
Cooling
| Free Air Cooling |
Safety
| GB4943.1/4706.1, IEC60950-1/60335(CE/CB/GS/PSE/KC), UL60950-1/1310 |
EMI
| Comply with EN55022 Class B, EN55032 Class B |
LED Indicator
| Charging: Red, Battery Full: Green |
Isolation Test
| Primary to Secondary: 3000Vac/10mA max./60s |
Dimension
| 137x57.5x34.5mm |
Life Time
| 30,000 hours at 25ºC, 230Vac Input, and Continuous Full Load Output |
