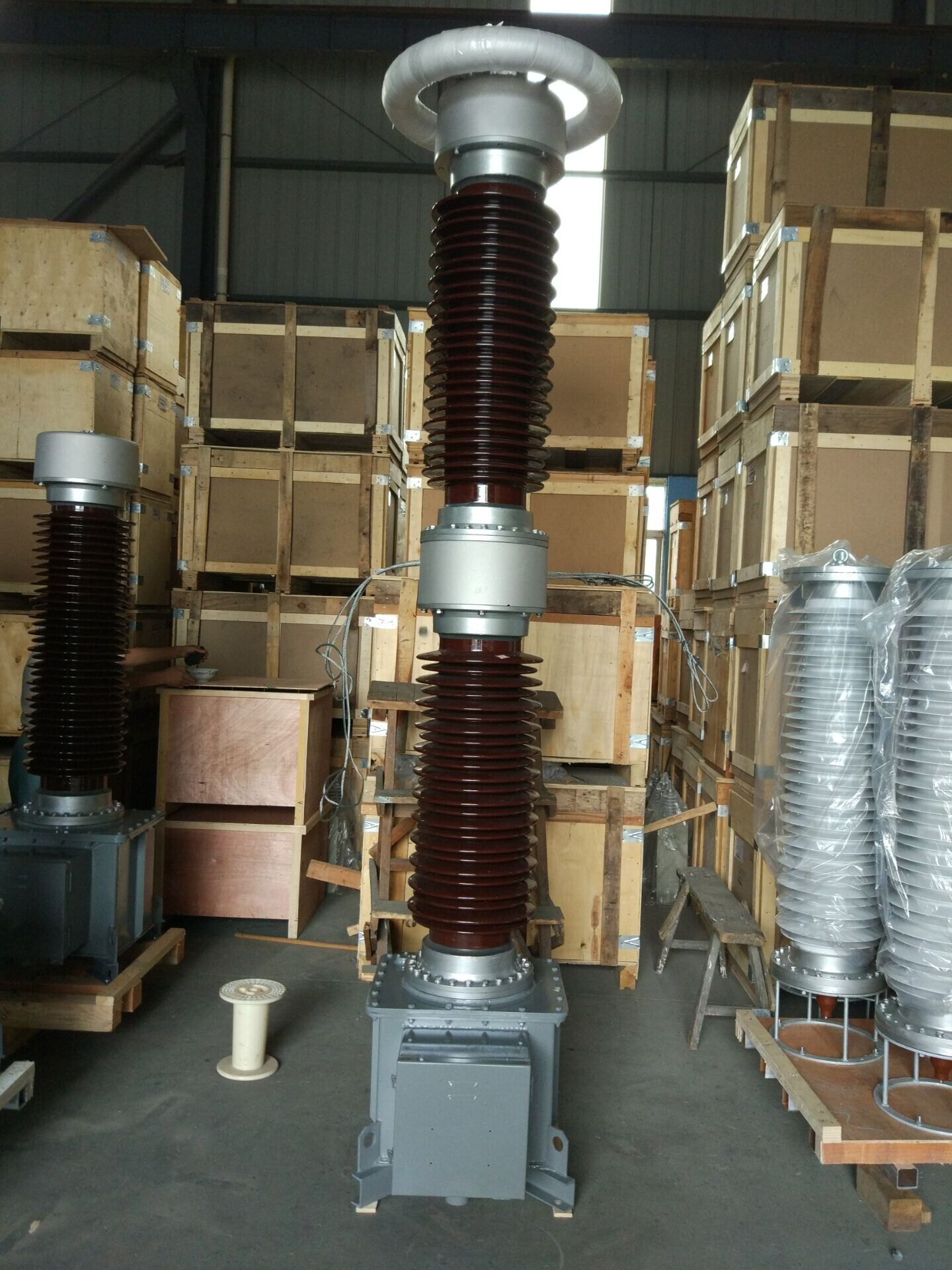

300kv Capacitor Voltage Transformer (CVT)
| Price: |
US $ 100000/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
TYD |
| Type: |
High Frequency Ceramic Capacitor |
| Application: |
Power |
| Package Type: |
Through Hole |
Product Description
This series of capacitor voltage transformers include the products with the type of TYO 150/\/'3-0.01 H (TYD161/v3-0.01 H), TYD150~13-0.02H (TYD161/v3-0.02H), TYD220~-0.00SH, TYD220~- 0.01 H, TYD330kv/110v-0.00SH, TYD330kv/115v-0.01H, TYD500kv~110v-0.00SH etc., which can be used for electric measurement and relay protection in the electric power system with a voltage of 150~500kV and frequency of 50Hz. The products are in accordance with the requirements of the standard GB 4 703 "Capacitor Voltage Transformers",GB19749 "Coupling capacitors and capacitor voltage dividers" & IEC 60044-5 "Capacitor Voltage Transformers".
TECHNICAL DATA SCHEDULE
CAPACITOR VOLTAGE TRANSFORMER 330 kV
CODE NO: 4132 |
|---|
| ITEM | DESCRIPTION | UNITS | REQUIRED | GUARANTEED |
|---|
| 1.0 | Manufacturer | | | |
| 1.1 | Type | - | - | Capacitive |
1.2
1.3 | Model no
Country of Origin | -
- | -
| TYD330/√3-0.0044H |
| | | | | |
| 2.0 | Nominal characteristics | | | |
| 2.1 | Voltage | | | |
| 2.1.1 | Rated voltage | kV | 330 | 330 |
| 2.1.2 | Rated voltage class | KV | 362 | 362 |
| 2.2 | Rated frequency | Hz | 50 | 50 |
| 2.3 | Network neutral grounding | - | Effective | Effective |
| 2.4 | Rated voltage factor for 30 s | - | 1,5 | 1.5 |
| 2.5 | Rated lightning impulse withstand | kV | 1175 | 1175 |
| 2.6 | Chopped lighting impulse withstand (3 ms) | kV | 1290 | 1290 |
| 2.7 | Switching impulse withstand (wet) | kV | 950 | 950 |
| 2.8 | Power frequency withstand voltage (1 min) | kV | 450 | 450 |
| 2.9 | Creepage distance | mm/kV | 31 | 31 |
| 2.10 | Max. radio interference voltage at 0,5 MHz per IEC 694 | mV | 2500 | 2500 |
| 2.11 | Capacitance C1 and C2 | pf | 4400 | 4400 |
| 2.12 | Series reactor
- inductance range
- resistance range |
mH
ohms |
0.2
- | 0.2
400 |
| 2.13 | Transformation ratio | - | 330kV/Ö3
: 0,11kV/Ö3
: 0,11kV/Ö3
(: 0,11kV/Ö3) | 330kV/√3
: 0,11kV/√3
: 0,11kV/√3 |
| | | | | |
| 2.14 | Transformer characteristics
- HV/LV turn ratio range
- Normal operating flux density |
-
tesla |
-
- |
3000:1
0.5T |
| 2.15 | Primary voltage | kV | 330/Ö3 | 330/Ö3 |
| 2.16 | Secondary voltage | V | 110/Ö3 | 110/Ö3 |
| 2.17 | Winding accuracy: | | | |
| | - metering class | - | 0,2 | 0,2 |
| | - protection class | - | 3P | 3P |
| | - burden ( on each winding) | VA | 50 | 50 |
| 2.18 | Number of secondary winding | - | 2 (3) | 2 |
| 2.19 | Winding conductor | - | Cu | CU |
| 2.20 | Circuit Diagram | - | To be enclosed with bid | To be enclosed with bid |
| 2.21 | HV Terminal connector for | - | TBA | |
| | | | | |
| 3.0 | Weights and Dimensions | | | |
| 3.1 | Weight for operation | kg | - | 950 |
| 3.2 | Weight for transport | kg | - | 1000 |
| 3.3 | Height | m | - | 4370 |
| 3.4 | Shipping dimensions (H x W x D) | m | - | 800*700*2600 |
| 3.5 | Outline drawing number | - | To be enclosed with bid | To be enclosed with bid |
| 4.0 | Type tests reports N° | - | To be enclosed with bid | To be enclosed with bid |
| 5.0 | Standards | - | IEC 60044-5
IEC 60694
IEC 60947-1 | IEC 60044-5
IEC 60694
IEC 60947-1 |
| 6.0 | Quality control | - | ISO ----------- | ISO9001 |
| | | | | |
| 7.0 | Installation | - | Outdoor, Substation Switchyard | Outdoor, Substation Switchyard |
| 8.0 | Installation | - | Outdoor in substation switchyard | |
