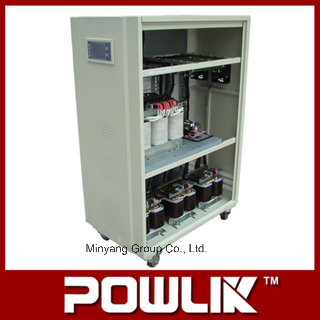

300kVA Static AC Voltage Stabilizer
| Price: |
US $ 1000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
MYZW-300KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
300kVA |
| Input Voltage: |
380V/220V |
| Output Voltage: |
380V/220V |
| Current Type: |
AC |
| Phase: |
Three Phase |
| Usage: |
Sjw |
| Frequency: |
Low Frequency |
| Brand: |
Powlik |
Product Description
300KVA Static AC Voltage Stabilizer1.Application1) CNC Machining Centers
2) SMT
3) Printer
4) EDM
5) High way/railway system
6) Medical facilities
7) Laser cutting machine
8) Circuit board drilling machine
9) Automatic insertion machine
10) CNC punch press
11) Net communication basic system
12) Petrochemical/Oil/Power system
13) Broadcast/Television/Bank system
14) Plastic Injection Molding Machines
15) Particularly suitable for large power fluctuations, worst power supply environment because transient mutations voltage, and where voltage regulation is needed.2. The comparison between Contactless AVR and Brush type voltage regulator : 1) Precision of voltage regulation is 1%, comparing 3% from carton brush type. More accureate & Stable.
2) It only take 30ms to regulate voltage, comparing 1000ms from carton brush type. Faster response & protection.
3) No Brush, no Abrasion, no Motor = No maintenance = Save money & energy.
4) With overload, shortload, short circuit, lack of phoses and automatically bypass protection. No hazard.
5) No Power on compension, no damdage to equipments.
3 .Technical Parameter Operation method | Intelligent SCR control |
Input Voltage range | 380V/220V( can customize various voltage) |
Input frequency | Plus or minus ±15%~±60% (larger range can be customized) |
Output rated voltage | 380V/220V( can customize various voltage) |
Output Voltage accuracy | ±1% |
Filter distortion | No additional waveform distortion ( static state) |
Efficiency | ≥98% |
Power factor | 0.8 |
Response time | ≤0.03s |
Anti-interference | Arrester, EMI filter, LC filter(optional) |
Over-voltage protection | Output phase voltage 10%, cut-off input or transfer to bypass |
Overload protection | Electronic detection, cut off input in three minutes |
Bypass protection | Automatically transfer to bypass in case of failure |
Phase lack protection | Cut-off automatically |
Overload ability | 5 time rated current 1 second |
Liquid crystal display | Voltage, Current, Abnormal |
Alarm | LED display and alarm |
Ambient temperature | -15~45°C |
Altitude | <4000M |
Noise | <45dB(1 m distance) |
Cooling system | Cooling fan |
4.Voltage Regulator Performance ContrastTechnical index | SCR Type voltage regulator(SPZW) | Carbon brush regulator(AVR) |
Working principle | The use of microcomputer intelligent detection, output commands to control the controllable silicon module (SCR) of fast switching, the same frequency, phase locked through a transformer, sine wave superimposed compensation to maintain the stability of the output voltage, fast response speed, no carbon brush, no contact, no mechanical, no spark ,three-phase distribution. | Rely on the carbon brush rack in regulating transformer on the mobile to change the compensation transformer the secondary winding voltage to maintain the stability of the output voltage. Carbon brush, a contact point, mechanical transmission. |
Features | Three-phase regulation, no contact, no abrasion, no spark and maintenance free, Regulator speed to 0.05s can be accessed by all types of generators. | Regular intervals maintenance, slow regulated, three-phase unified adjustment, unbalance output, Carbon brush wear, motor malfunction by jammed , coil spark.. |
Response time | Fast, stable to the rated voltage value of the time less than 30ms, capable of suppressing input low voltage surge, immediate and effective protection of precision equipment. | Slow (3~5s), motor adjust( mechanical) |
Parameter setting | Display button to set the parameters, convenient, user-friendly | The analog potentiometer adjustment , or can be set |
Service life | Average fault-free uninterrupted work more than 100000 hours | Carbon brush is easy to wear, motor often jammed, the average life expectancy of 8760 hours. |
waveform distortion | No additional waveform distortion(static state) | No additional waveform distortion(static state) |
Efficiency | 98% | 95% |
Leakage magnetic interference | None | None |
Grid pollution | None | None |
Slow starting impact | All products have a fist voltage output function | Conventional products do not have this feature. |
The protection response time | Abnormal situation after 30ms protection | Conventional products do not have this feature. |
Protection Function | With overload, short load, short circuit, lack of phases, and automatically bypass protection function. | With overload, short load, and manual bypass protection function |
Minyang Group Co., Ltd. Mainly specilized in manufacturing and supply busbar trunking system, power transformer, insulator, fuse cutout, voltage stabilizer, surge arrester, power supply, Load breaker switch, isolating switch, switchgear sets, substations, cables and wires etc.
MINYANG GROUP located in Liushi, the electric capital of China, is specialized in developing, manufacturing and distributing power supplies & switchgears, along with about 150 components.
MINYANG GROUP established with 5 specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are enjoying high popularity in Bangladesh, India, UAE, Iran, Saudi, South Africa and Brazil etc.
MINYANG takes "quality is life of enterprise"as its tenet, rewards customers with quality products and perfect services, and creates brilliant future in Chinese electric equipment industry.
