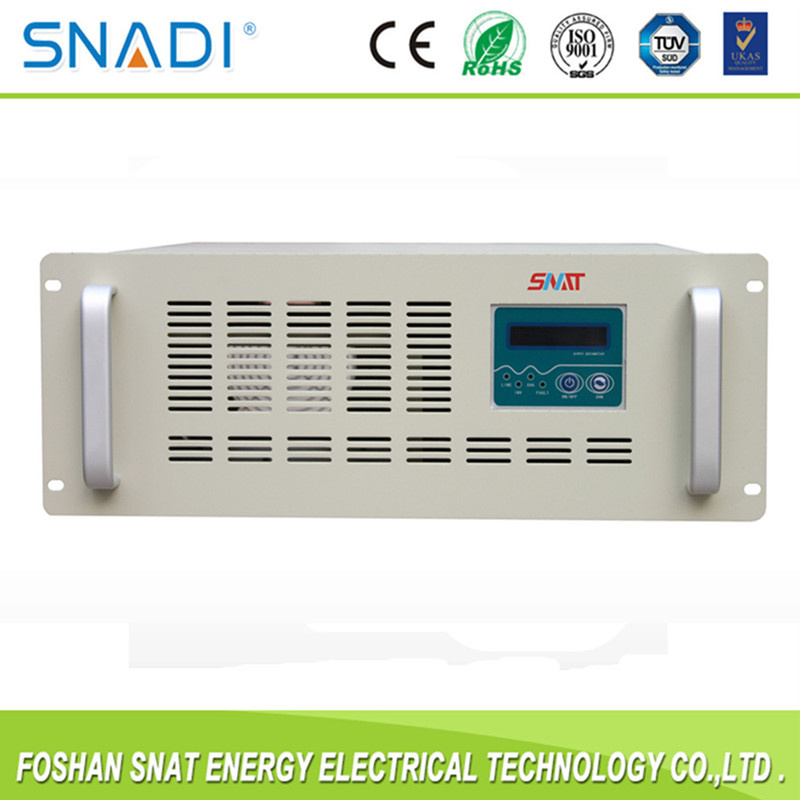

300W-1000W off Grid Pure Sine Wave DC AC Inverter for Solar Panel System

Name: 300W-1000W off Grid Pure Sine Wave DC AC Inverter for Solar Panel System
Brand: all-electronics-online.com
SKU: 799721115
Availability: InStock
Rating: 4.4 (33 reviews)

Price:	US $ 250-300/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JF-300W-1000W
Name:	DC AC Inverter
Application:	Home, Industrial, Commercial
Condition:	New
OEM/ODM:	Accept
MOQ:	1unit
Display:	LED & LCD
Waveform:	Pure Sine Wave
Warranty:	1 Year
Country Of Origin:	Guangdong,China
Export Market:	Global

Product Description

300w-1000w off grid pure sine wave dc ac inverter for solar panel system

PRODUCT OVERVIEW
As a modular inverter with standard external dimensions,the dc ac inverter is designed by SNAT for the users needing to mount a power supply in the cabinet. It applies to different types of loads because of its full digital design and real pure sine wave output. With power-frequency design and highly stable output voltage and frequency, it can operate continuously for a long time. Thus, it avoids the disadvantages of direct use of the mains supply, such as interruption of power supply, voltage instability, noise, and lightning attacks, and the disadvantage of short power supply time of small inverter supplies guaranteeing continuous and reliable operation for electrical equipment. Sine wave inverter supplies are the best guarantee for the safe and reliable operation of systems. The product is now widely used in such occasions needing centralized management and with small space as the machine rooms of growing entities, China Telecom, China Mobile, China Unicom, aerospace, railways, finaancial management, office automatic, industrial automatic control, medical health, military scientific research, etc.

MAIN FEATURES
* Excellent performance because of an MCU intelligent control technology.
* A wide range of applicable loads because of power- frequency transformer design and pure sine wave AC output.
* Personalized digital communication via an intelligent RS232 interface.
* A wide range, high accuracy, and full automatic voltage stabilization.
* Overall protection functions(overload protection, short circuit protection, overvoltage protection, undervoltage protection and overtemperature protection.)
* Simple LEDs and a LCD for visualization of operation status of the equipment.
* Use with generators because of high adaptablility to power grids.
* A longer battery life because of intelligent battery management and overcharge protection.

TECHNICAL INDEXES

Model:	JF-300w-1000w
Rated power	300W/500W/800W/1000W
DC voltage	24VDC/48VDC
Input voltage	160-265VAC
Input frequency	45-65Hz
Output voltage	220VAC±5%
Output frequency	50Hz±1%
Switching time	5ms
Charge current	Max 15A
Inverter output protection	Input voltage/undervoltage protection protection, DC undervoltage prottection, peak surge protection, overload protection: 100-120%, 30s; >120%, 100ms; >150%, 50ms; output short circuit <150μs.
Noise	<45dB
Ambient temperature for storage	0-40ºC
Ambient temperature for storage	-15- +50ºC
Relative humidity for operation/storage	0-90%(no condensation)
Altitude for operation	0-3,000m
Altitude for storage	0-15,000m
Product dimensions: DWH(mm)	43548488
Packing dimensions: DWH(mm)	540525210
Net weigh/gross weight(KG)	16.7/18.3

COMPANY INFORMATION

Foshan SNAT Energy Electrical Technology Co. Ltd is established in 2004. As a world's leading supplier for solutions for electric energy and new energy, SNAT has powerful strength and is engaged in field of power inverters, solar inverters with built-in solar controller, solar controllers, UPS, which are used for household, telecommunication, electricity, infrastructure and industrial markets. At the same time, our company is concurrently engaged in solar panels, batteries for solar power system. We have professional technical engineer with more than 10 years technical experience to develop and design solar products.
MANUFACTURE&PACKAGE

FAQ:

Q1 :What is the warranty of your product?

A:Quality warranty for 12 months; parts will be shipped free during warranty period.

Q2:Can you do OEM?
A:Yes,we can offer OEM service.

Q3 :How long is your lead time?

A:5~10 days

Q4: What minimum order do you require?

A:1 piece

Q5 :Why choose us?

1)All of our products have CE certification,ISO9001:2008,RoHS.
2)We have our own factory,the selling prices is competitive.
3)Prompt delivery and good after-sale services.
4)80% new materials for production and superior quality.
5)professional engineer designers.

CONTACT US

A Professional Manufacturer Specialized in field of Solar power system

Foshan SNAT Energy Electrical Technology Co. Ltd is a professional manufacturer specialized in the field of solar inverters, solar inverters with controllers built-in, solar controllers, UPS which are used for household, telecom, electricity, infrastructure and industrial markets.

At the same time, our company is concurrently engaged in solar panels, batteries for solar power system. All products purchased by our company have our wanrranty commitment, parts will be shipped for free during wanrranty period.

Company information

Foshan SNAT Energy Electrical Technology Co. Ltd is established in 2004. Our company's predecessor is a trading company and engaged in UPS since 1998 and develop solar inverter since 2004. We are haveing professional technical team and focus on customers' demands, continuous innovation, and establish good cooperation with more and more clients. The leading-edge technology has become a competitive advantage for our customers and business.

Corporate development prospect

Foshan SNAT Energy Electrical Technology Co. Ltd is becoming a strong brand step by step depending on high quality and strict self-demanding. We have won a good reputation among clients. Nowadays, we have prepared well to develop much more wide international market. We sincerely wish to corporate with more and more international traders to vreat a better future!
