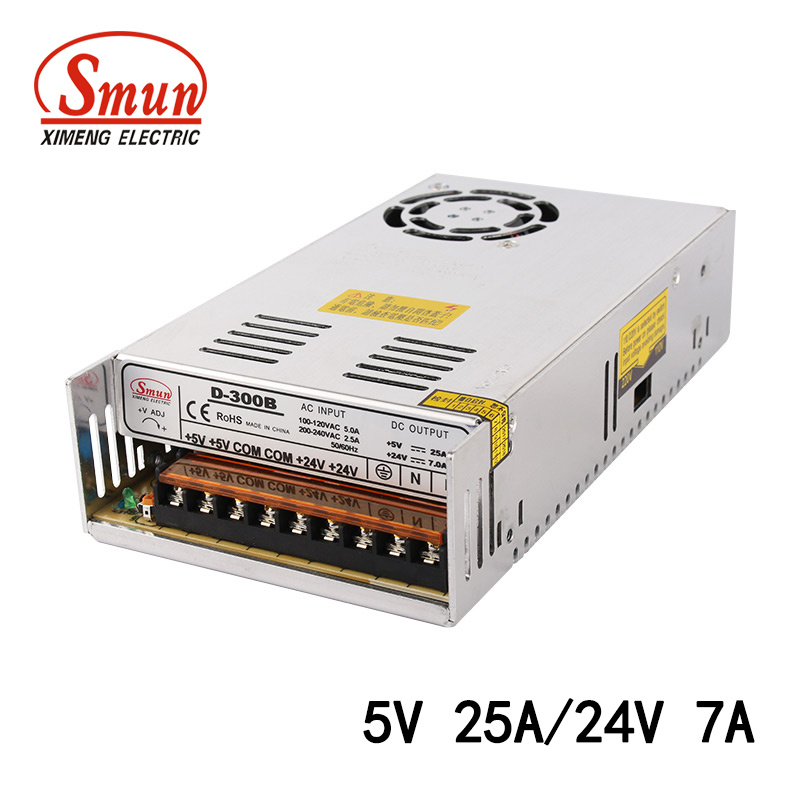

| Prod Model: |
D-300B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input: |
85~132VAC/170~264VAC 47~63Hz 240~370VDC |
| Input Current: |
2.5A/115V,1.25A/230V |
| Power: |
300W |
| Output: |
5V 25A/24V 7A |
| Weight: |
1.1kg |
| Package: |
16PCS/CTN |
| DC Adjustable: |
10% |
| Working Temperature: |
-10~+60 Degree C 20%~90%Rh |
| Safety Standard: |
En60950 UL60950 GB4943 |
| Customized: |
Available |
| Output Type: |
Dual |
| Warranty: |
2 Years |
| Output Power: |
201 - 300W |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
RoHS |
| Input Voltage: |
110VAC/220VAC |
| Brand: |
Smun |
Product Description
Features
Dual output switching power supply
AC input voltage range selected by switch
Small volume, low weight, high efficiency
Protections: Short circuit/over load/over voltage/over temp
Cooling by free convection
LED indicator for power on
100% full load burn-in test
2 years warranty
| Model | D-300A | D-300B | D-300C |
| Output | DC Voltage | Ch1:5v | Ch2:12v | Ch1:5v | Ch2:24v | Ch1:12v | Ch2:24v |
| Voltage tolerance | ±2.0% | ±6.0% | ±2.0% | ±7.0% | ±3.0% | ±7.0% |
| Rated Current | 2-25A | 0.5-15A | 2-25A | 0.4-7A | 2-25A | 0.2-4A |
| Related Power | 300w | 300w | 300w |
| Wave&Noise | 60mVp-p | 150mVp-p | 60mVp-p | 200mVp-p | 120mVp-p | 150mVp-p |
| DC Voltage ADJ range | Ch1:-9%~+10% |
| Set up,rise,hold up time | 200ms 100ms 30ms |
| Input | Voltage Range | 95 ~132VAC 180-264VAC 47-63HZ |
| AC Current | 15A/115VAC 8A/230VAC |
| Efficiency | 78% | 82% | 87% |
| AC inrush current | Cold start current 25A/115V 50A /230VAC |
| Leakage current | <3.5mA/240VAC |
| Protection | Overload | Related output power 105-150% start overload protection |
| Protection type: cutoff output, recovery after restart power |
| Over voltage | Ch2 :115%~135% |
| Hiccup mode,recovers automatically after fault condition |
| Environment | Working temp humidity | -10~+60°C 20%~90%RH |
| Storage temp, humidity | -20~+85°C 20%~90%RH Non-condensing |
| Withstand vibration | 10-500Hz,2G 10min/1 cycle, period for 60min, each axes |
| Safety | Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
| Isolation resistance | I/P-O/P:I/P-FG:O/P-FG: 100M Ohms/500VDC |
| Standard | Safety standard | Fit UL1012 |
| Refer | Design refer to GB4943,UL60950,EN60950 |
| EMC standard | Design refer to GB9254,EN55022 Class A |
| Size | size | L215*W115*H50mm |
| Package | 1.1kg, 16pcs/18kg |
Note:1.All parameters not specially mentioned are measured at 230VAC input, related load and 25 of ambient temperature.
2.Wave&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation. |
