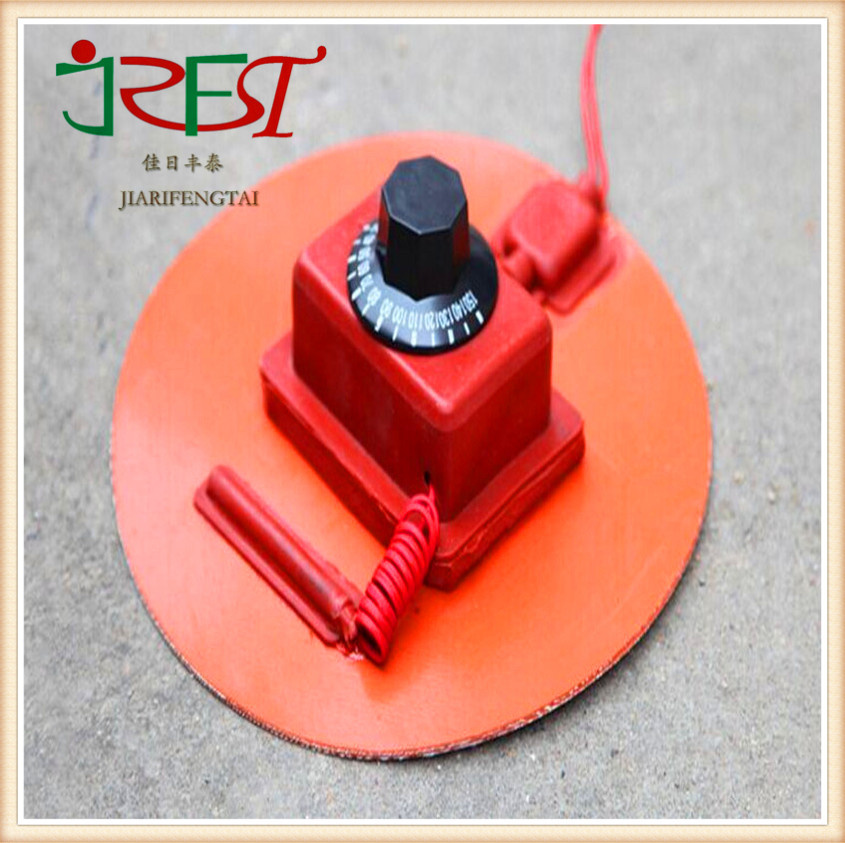

300W Flexible Silicone Rubber Heating Element for Water

Prod Model:	BM300
Working Temperature:	-60-+250 Deg C
Dimension(L*W*H):	Customized
Max. Power Density:	5 W/Sq Cm Depending on Application
Resistance Tolerance:	About +/- 5%
Voltage:	1.5V--800V
Length Of Cord:	1 Meter
Power Source:	Electric
Flammability:	Flame Retardant
Thickness:	1.5-4 mm
Power(W):	0.3W/Cm2

Product Description

300w Flexible Silicone Rubber Heating Element for Water


Description:
   The silicone rubber heaters have advantages of thinness, lightness and high flexibility.It can close contact with the heated objects and transfer heat to anywhere you need.The silicone rubber heater has advantages of  high insulativity,since the insulating layers are made from silicone rubber and fiberglass cloth.

NO.	Description		Parameter
1.	size	Width range	10mm~1200mm
		Length range	10mm~10000mm
		Thickness	1.50mm
2.	Voltage range		1.5v~400v
3.	Power density range		0.07w/ cm²~2.1w/ cm²
4.	Power deviation		5%
5.	Resistance precision		±10%
6.	working temperature range		-60~250°C(-140~482°F)
7.	Breakdown voltage		20~50VK/mm
8.	Mechanical stress		100.00kg/ cm²
9.	Minimum bending radius		3.20mm

NOTE: •Many kinds of shapes and sizes are available according to your specific requirements.
            •Breakdown voltage:20~50VK/mm,please be assured use.
            •The heater cannot be put into fluid directly,however,it shows a good performance in high humidity,as silicone rubber is repellent.


Features:
1.Maximum temperature resistant of insulant: 300°C
2.Insulating resistance: ≥ 5 MΩ
3.Compressive strength: 1500V/5S
4.Fast heat diffusion, uniform heat transfer,directly heat objects on high thermal efficiency,long service life,work safe and not easy to aging.


Main applications:
1) Thermal transfer equipment
2) Freeze or condensation prevention in housings containing electronic equipment, for examples: traffic signal boxes, automatic teller machines, temperature control panels, gas or liquid control valve housings
3) Drums and other vessels and viscosity control and asphalt storage
4) Medical equipment such as blood analyzers, medical respirators, test tube heaters, etc.
5) Computer peripherals such as laser printers, duplicating machines


When inquire, please specify:
1.Size and shape of the heater you need;
2.Power or temperature of the heater you need;
3.Working environment;
4.Quantity of the heater you need;
5.Special requirements if you have.
