| Prod Model: |
BM300 |
| Condition: |
New |
| Power Source: |
Electric |
| Model Number: |
Pi Film Heater |
| Voltage: |
12V, 24V, 220V, 240V, Customized |
| Power(W): |
Customized |
| Film: |
Polyimide |
| Option: |
with Adhesive/Without |
| Features 1: |
Thin |
| Features 2: |
Conformable |
| Features 3: |
Excellent Electric Insulation |
Product Description
Specifications

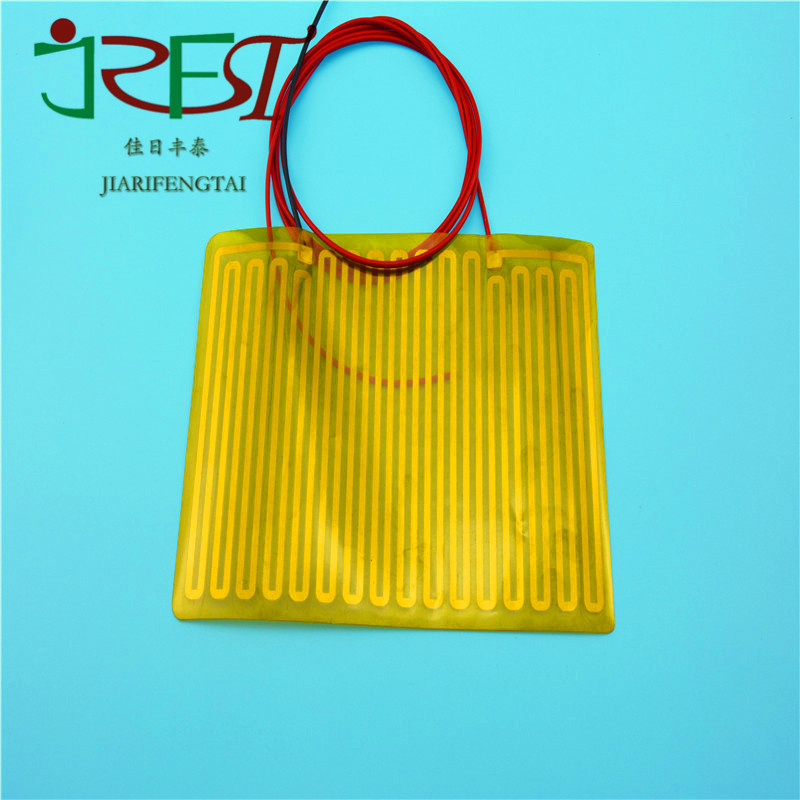

pi film heater
1 Polyimide Film Flexible Heater
2 Etched Foil Design
3 thin film polyimide
4 ROHS and CE
Introduction
Polyimide is a thin, lightweight organic polymer film which provides excellent tensile strength, tear resistance and dimensional stability. The polyimide heater is ideal for applications requiring low outgassing in a vacuum, or resistance to radiation, fungus and chemicals.
We usually say it is polyimide heaters. This is is very thin,the thickness is about 0.3mm,it is very light,so it is widely used on 3D printer.the normal size for 3D printer are follow.
Features
| flexible heater | polyimide film insulated flexible heater |
| Insulation Material | Polyimide film |
| Heating Material | Etched metal foil |
| Thickness of Heaters | 0.12mm~0.3mm |
| Temperature | -200°C~200°C |
| Voltage | 1.5V-380V |
| Minimum bend radius | 0.08mm |
| Dielectric strength | 1000VRMS |
| Maxium watt density | 3W/cm2 |
Applications:
Medical applications that require a clean, sterile environment
Laboratory research
Semiconductor processing equipment
Optical equipment
LCD displays
Computer equipment
Photographic equipment
Aerospace/defense, where low outgassing properties are required
Advantages
| Features | Benefits |
| Excellent physical and electrical properties | Results in thermal stability over a wide temperature range |
| Transparent polyimide material | Allows inspection of internal details |
| Resistance of radiation and fungus | Allows it to be used in a wide range of applications |
Our Services
Customers would be provided with below services if you are interested in our products.
A. Customized order like different cutting sizes, die-cutting designs are all available.
B. Professional recommendations on tape choice for customers.
C. Free samples available.
D. Competitive prices.
E. In time delivery.
F. Quality assurance.
Applications:Our Advantages
1. Low MOQ
2. OEM and ODM service available.
3. Factory sale directly with much competitive price.
5. Good Quality Control. There are 3 times quality checking before delivery.
6. Free samples are available. Even customized die cut parts are also available. We guarantee that the samples and mass production tapes would be satisfied.
7. All of the customers' samples/orders would be recorded and maintained secrecy.
Why Choose Us?
1. Here you will find the most competitive factory price which is almost equal to the actual cost.
2. We will make a strict time schedule for your order to 100% ensures the timely delivery.
3. We can make the tape into the size or shapes as requested.
4. You will be kept updated of the production state during the whole production process.
5. Over 5 years on the tape manufacturing.
6. Prompt reply within 12 hours.
7. Custom logo printing is accepted.
