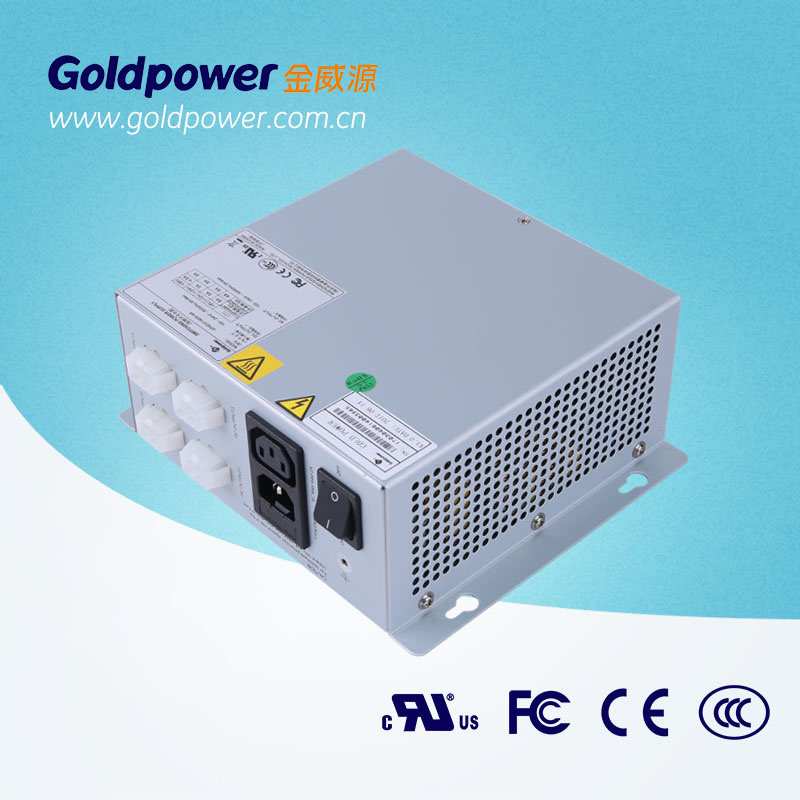

300W High Reliability Multiple Output Customized ATM Power Supply

Name: 300W High Reliability Multiple Output Customized ATM Power Supply
Brand: all-electronics-online.com
SKU: 727713772
Availability: InStock
Rating: 4.9 (20 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPAD311M36-4B
Power Factor:	0.99
Input Frequency:	47~63Hz
Output Efficiency:	80%
Typ. Outpower Power:	324W
Output Voltage:	+5V,+12V,+24V,+36V
Output Current:	0.3A~6A, 0.3A~5A, 0.3A~3A, 0.2A~4.5A
Operating Temperature:	-25ºC~+55ºC
Relative Humidity:	10~95%
Cooling:	Fan Forced Cooling
Storage Temperature:	-45ºC~+85ºC
Output Type:	Multiple
Warranty:	2 Years
Output Power:	301 - 400W
Connection Mode:	Parallel Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	FCC
Input Voltage:	90~264VAC
Brand:	Goldpower

Product Description

300W High reliability and high efficiency multiple output customized power supply is switching power supply for ATM and rail transportation equipment.

Feature:
1. Wide input voltage range,applied to global grid.
2. Low consumption for standby,high efficiency more than 90%,cost-effective.
3. Support hot plug,module designed,the installation easy to maintain,complete protection.
4. With a heavy load function, especially for inductive load
5. High reliability,MTBF>20,0000Hours.

Application:
1. ATM
2. Rail transportation equipment
3. Self-service equipment.

Specification:

Input	Parameter	Min.	Typ.	Max.	Unit	Testing condition
	Input voltage	90	110/220	264	Vac	Automatic
	Input frequency	47		63	Hz

Output	Output voltage	Output current range	Output voltage range	regulation	Ripple+Noise
	+5V	0.3A~6A	4.90~5.40	≤±3%	≤150mV
	+12V	0.3A~5A	11.0~12.5	≤±3%	≤200mV
	+24V	0.3A~3A	23.5~25.0	≤±3%	≤250mV
	+36V	0.2A~4.5A	34.0~38.0	≤±3%	≤250mV
	Parameter	Min.	Typ.	Max.	Unit
	Output power		324		W
	Output efficiency	80			%
	Temp. coefficient			±0.02%	/ºC
	Start-up time			8	S

Shenzhen Gold Power Tech Co., Ltd. Was established in 1995, a leading excellence integrated power supply solutions partner in the industry. There's an independent industrial park with 80, 000 square meters in Pingshan district, Shenzhen, China. With more than 478 employees and many core intellectual property rights. The production capacity of all kinds of power supply is 6 million units every year, products are exported to more than 30 countries and regions over the world. Goldpower has been the national high-tech enterprise after more than 20 years of practice in power supply industry.

Our products cover Telecom, Green Solar Energy, Automobile application electronic and New energy fields formed six core product series, including standard telecom power supply, remote power supply, HVDC, Solar PV(photovoltaic), LED power supply and the car rechargeable power supply, widely used in communications, power electronics, automatic control, railway, military industry, medical treatment, financial self-service, LED, solar power and automobile charging control system.

We are ISO9001 approved enterprise and we can promise you good quality. Welcome to contact us for business cooperation.
