300W Pure Sine Wave Solar Inverter for Power System

Name: 300W Pure Sine Wave Solar Inverter for Power System
Brand: all-electronics-online.com
SKU: 710070822
Availability: InStock
Rating: 5 (52 reviews)

Price:	US $ 50-60/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FI-300W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display:	LED & LCD
Application:	Home, Industrial, Commercial
OEM/ODM:	Accept
Company:	Manufacturer and Trading Company

Product Description

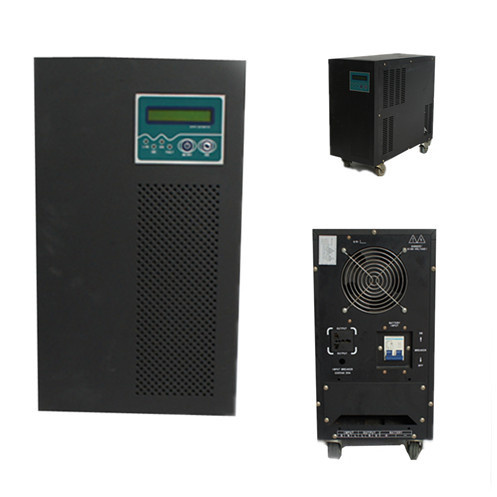

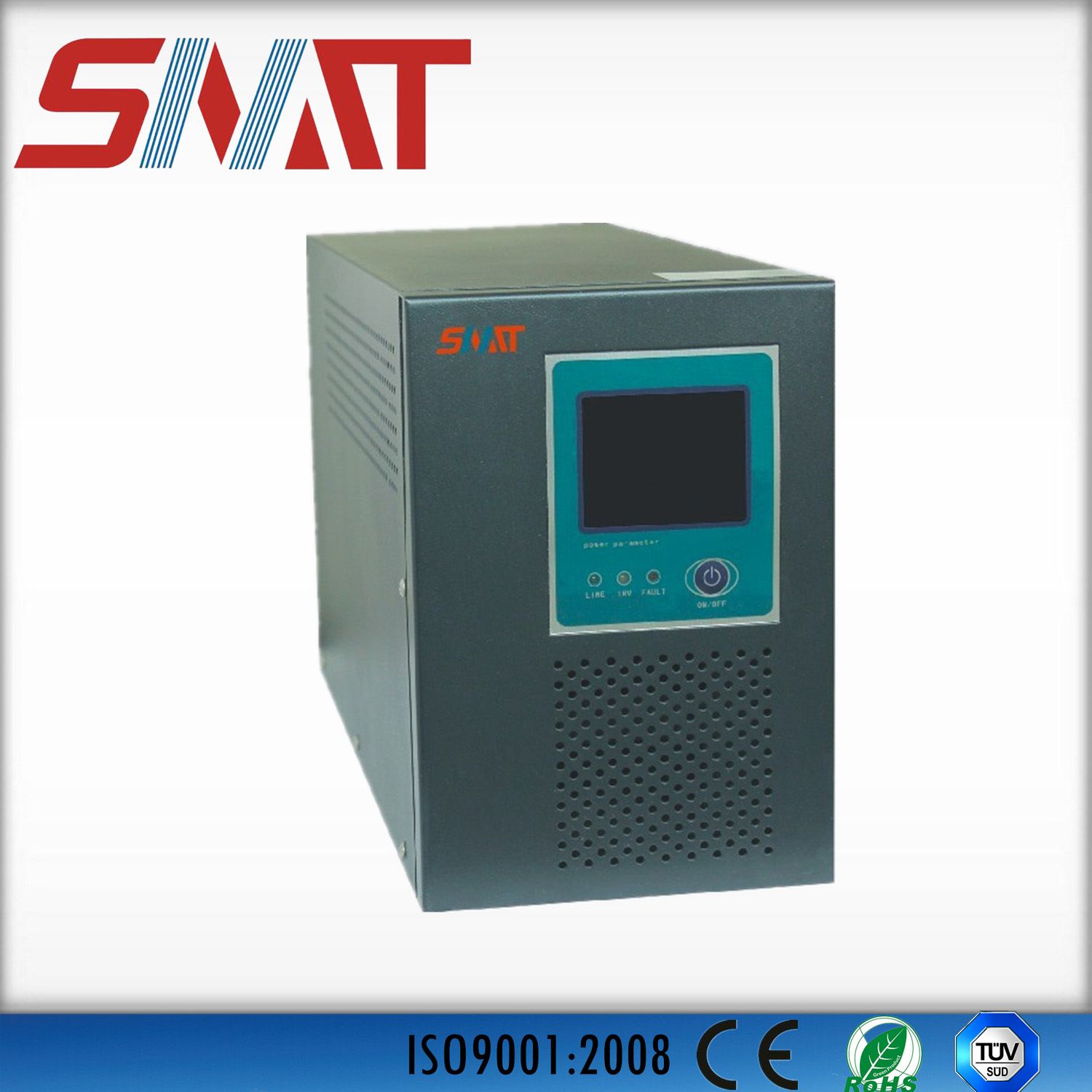

300W Pure Sine Wave Solar Inverter for Power System

PRODUCT OVERVIEW
The product applies to different types of loads because of its full difital design and real pure sine wave output. With power-frequency design and highly stable output voltage and frequency, it can operate continousely for a long time. Thus, it avoids the disadvantages of direct use of the mains supply, such as interruption of power supply, voltage instability, noise, and lightning attacks, and the disadvantage of short power supply time of small inverter supplies, guaranteeing continuous and reliable operation for electrical equipment. Sine wave inverter supplies are the best guarantee for the safe and reliable operation of systems.

MAIN FEATURES
* Excellent performance because of an MCU intelligent control technology
* Awide range of applicable loads because of power-frequency transformer design and pure sine wave AC output;
* Personalized digital communication via an intelligent RS232 interface;
* A wide range, high accuracy, and full automatic voltage stabilization;
* Overall protection functions(overload protection, short circuit protection, overvoltage protection, undervoltage protection and overtemperature protection);
* Simple LEDs and a LCD for visualization of operation status of the equipmet
* Use with generators because of high adaptability to power grids
* A longer battery life because of intelligent battery management and overcharge protection.

TECHNICAL INDEXES

Model: FI-	0.3KW
Rated power	300W
DC voltage	12VDC/24VDC/48VDC
Input voltage	160-265VAC
Input frequency	45-65Hz
Output voltage	20VAC ±5%
Output frequency	50Hz±1%
Switching time	5ms
Charge current	Max15A
Inverter output protection	Input overvoltage/undervoltage protection, DC undervoltage protection,peak surge protection, overload protection: 100-120%, 30s; >120%,100ms;>150%,50ms;outputshort circuit<150μs
Noise	<45dB
Ambient temperature for operation	0-40ºC
Ambient temperature for storage	0-90%(no condensation)
Altitude for operation	0-3,000m
Altitude for storage	0-15,000m
Product dimensions: DWH(MM)	370122188
Packing dimensions: DWH(mm)	455195260
Net weight/gross weight(KG)	5.6/6.5

About Us

FAQ:
Q1: MOQ
A: MOQ from our company is required 1 unit

Q2: Are you manufacturer or trading company?
A: We are professional manufacturer of UPS since 1998 and manufacturer of solar inverter, solar charge controller and AC&DC solar power system since 2004; we are also trading company of solar panel and battery for solar power system.

Q3:I need this product and wanna a system for family/industrial/commerical using, can you help me?
A: Yes, we have a professional technology team average 10 years' experience, they can design solar power system in accordance with customers' special requirements.

Q4: How long is your delivery time
A: Within 15 days

Q5:How about your after-sales service?
A:Our quality warranty for 2 years; any parts will be shipped for free during warranty period.

Q6: Why choose us?

A1)Prompt delivery and good after-sale services.

A2)We have our own factory,the selling prices is competitive.

A3)All of our products are certified with CE, RoHS, ISO9001:2008.

A4)100% new materials for production and superior quality.

A5)Professional R&D technology team average 10 years experience.

Packing and Shipping

A Professional Manufacturer Specialized in field of Solar power system

Foshan SNAT Energy Electrical Technology Co. Ltd is a professional manufacturer specialized in the field of solar inverters, solar inverters with controllers built-in, solar controllers, UPS which are used for household, telecom, electricity, infrastructure and industrial markets.

At the same time, our company is concurrently engaged in solar panels, batteries for solar power system. All products purchased by our company have our wanrranty commitment, parts will be shipped for free during wanrranty period.

Company information

Foshan SNAT Energy Electrical Technology Co. Ltd is established in 2004. Our company's predecessor is a trading company and engaged in UPS since 1998 and develop solar inverter since 2004. We are haveing professional technical team and focus on customers' demands, continuous innovation, and establish good cooperation with more and more clients. The leading-edge technology has become a competitive advantage for our customers and business.

Corporate development prospect

Foshan SNAT Energy Electrical Technology Co. Ltd is becoming a strong brand step by step depending on high quality and strict self-demanding. We have won a good reputation among clients. Nowadays, we have prepared well to develop much more wide international market. We sincerely wish to corporate with more and more international traders to vreat a better future!
