| Prod Model: |
HSP-300-24 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type Of Output: |
Single Output(AC/DC to DC),Constant Voltage |
| Type Of Power Supply: |
Metal Case Power Supply |
| Function: |
Pfc Function |
| Application: |
Use for LED Light and Resistance Type of Load |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
ISO |
| Output Power: |
300W |
| Input Voltage: |
88-264VAC |
| Brand: |
Dhecn |

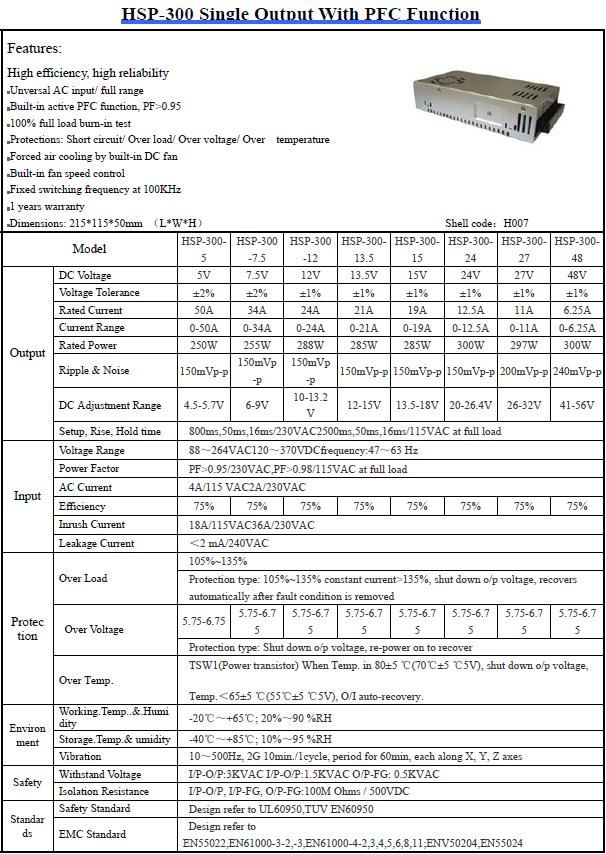

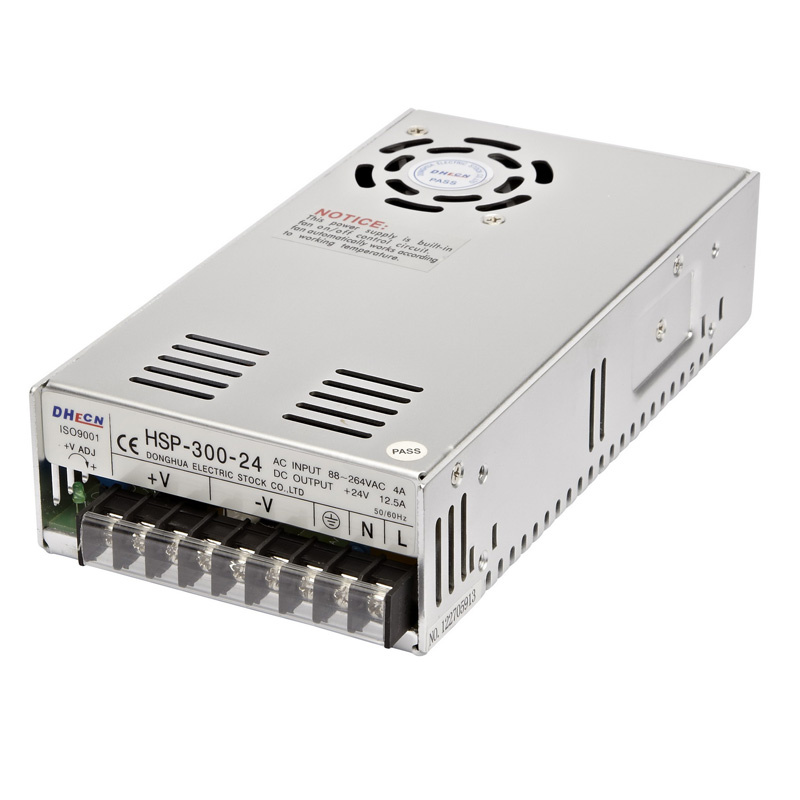

Product Description
Features:
· Unversal AC input/ full range
· Built-in active PFC function, PF>0.95
· 100% full load burn-in test
· Protections: Short circuit/ Over load/ Over voltage/ Over · Temperature
· Forced air cooling by built-in DC fan
· Built-in fan speed control
· Fixed switching frequency at 100KHz
· 3 years warranty
· 3Dimensions: 215*115*50mm (L*W*H)
Specification
1)INPUT
· 3Voltage Range: 88~264VAC120~370VDCfrequency: 47~63 Hz
· 3Power Factor: PF>0.95/230VAC, PF>0.98/115VAC at full load
· 3AC Current: 4A/115 VAC2A/230VAC
· 3Efficiency: 75%(HSP-300-5); 80%(HSP-300-7.5); 83%(HSP-300-12); 83%(HSP-300-13.5);
83%(HSP-300-15); 85%(HSP-300-24); 85%(HSP-300-27); 85%(HSP-300-48);
· 3Inrush Current: 18A/115VAC36A/230VAC
· 3Leakage Current: <2 mA/240VAC
2)PROTECTION
· Over Load: 105%~135% Protection type: 105%~135% constant current>135%, shut down o/p voltage, recovers automatically after fault condition is removed
· Over Voltage: 5.65-6.75(HSP-300-5); 9.4-10.9(HSP-300-7.5); 13.8-16.2(HSP-300-12); 15.5-18.2(HSP-300-13.5);
18-21(HSP-300-15); 27.6-32.4(HSP-300-24); 33.7-39.2(HSP-300-27); 57.6-67.2(HSP-300-48);
Protection type: Shut down o/p voltage, re-power on to recover
· Over Temp: TSW1(Power transistor)When Temp. In 80± 5 º C(70º C± 5 º C5V), shut down o/p voltage,
Temp. <65± 5 º C(55º C± 5 º C5V), O/I auto-recovery.
3)ENVIRONMENT
· Working Temp., Humidity: -20º C~+65º C; 20%~90 %RH
· Storage Temp., Humidity: -40º C~+85º C; 10%~95 %RH
· Vibration: 10~500Hz, 2G 10min. /1cycle, period for 60min, each along X, Y, Z axes
4)SAFETY AND ATANDARD
· Withstand Voltage: I/P-O/P: 3KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC
· Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC
· Safety Standard: Design refer to UL60950, TUV EN60950
· EMC Standard: Design refer to EN55022, EN61000-3-2, -3, EN61000-4-2, 3, 4, 5, 6, 8, 11; ENV50204, EN55024
5)OUTPUT
· Model: HSP-300-
5 7.5 12 13.5 15 24 27 48
· DC Voltage: 5V 7.5V 12V 13.5V 15V 24V 27V 48V
· Voltage Tolerance: ± 2% ± 2% ± 1% ± 1% ± 1% ± 1% ± 1% ± 1%
· Rated Current: 50A 34A 24A 21A 19A 12.5A 11A 6.25A
· Current Range: 0-50A 0-34A 0-24A 0-21A 0-19A 0-12.5A 0-11A 0-6.25A
· Rated Power: 250W 255W 288W 285W 285W 300W 297W 300W
· Ripple & Noise: 150mVp-p 150mVp-p 150mVp-p 150mVp-p 150mVp-p 150mVp-p 200mVp-p 240mVp-p
· DC Adjustment Range: 4.5-5.7V 6-9V 10-13.2 12-15V 13.5-18V 20-26.4 26-32V 41-56V
· Setup, Rise, Hold Time 800ms, 50ms, 16ms/230VAC2500ms, 50ms, 16ms/115VAC at full load

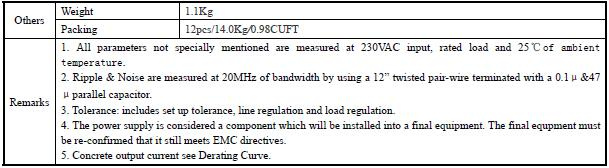

Established in 1988, We specialize in manufacturing switching power supply, current transformer, voltage transformer, fuse and isolation switch. Donghua provides you a variety of high quality switching power supply, Transformer, fuse, isolation switch And professional product solution.
To supply our customers perfect products, we set up R&D department with over 20 experienced engineers and also follow a full set of computerized managementssystem. What' S more, as an ISO9001 certified company, we adopt a strict inspection process and a scientific management system with modern imported manufacturing and testing facilities, succeeded in achieving some safety sertification such as CCC, CE, CB, UL and all products are RoHS Compliance.
Advantage managent and abundant labor in China, let us provide our customers more high reliable quality and more cheaper products, by now, DHECN-SMPS is becoming more and more famous among customers worldwide due to its reliable quality, competitive price, punctual delivery and correct service.
Donghua warmly welcome all old and new customers to visit our company or contact us by Tel, Fax, E-mail. Believing we will be your long-term business cooperator either as a reliable supplier or as a close ODM/OEM partner in China.
