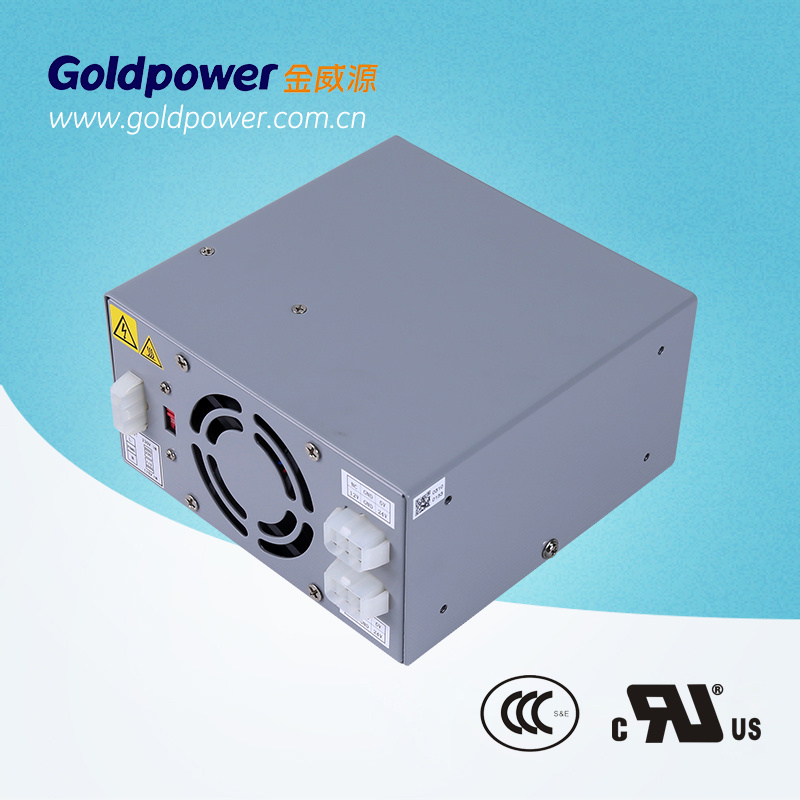

300W Switching Power Supply for The Subway Machine with CCC, Ce, UL, FCC

Name: 300W Switching Power Supply for The Subway Machine with CCC, Ce, UL, FCC
Brand: all-electronics-online.com
SKU: 733246142
Availability: InStock
Rating: 4.8 (71 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPAD301M24-3B
Output Efficiency:	88%
Power Factor:	0.95(220V Full Load)
Output Voltage Range:	24V 12V 5V
Output Current Range:	5A 5A 4A
Stabilized Voltage Precision:	±6 %
Boot Output Delay:	5s
Weight:	1.4kg
Cooling Method:	Air Cooling
Output Type:	Triple
Warranty:	2 Years
Output Power:	201 - 300W
Connection Mode:	Parallel Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	FCC
Input Voltage:	100~240VAC
Brand:	Goldpower

Product Description

300W switching power supply for the subway machine with CCC,CE,UL,FCC is a high efficiency AC/DC power supply for self-service equipment,ticket-selling machine,etc.

Feature:

1. Modular design,compact size,with mature technology,easy to install and maintain.
2. Support hot-plug,with perfect protection.
3. High reliable, MTBF>200,000 Hours.
4. Power factor>0.90, fewer bypass loss, reduce the operating costs.
5. Perfect over-power protection.

Specification:

Item	Parameter	Unit
Model	GPAD301M24-3B
Power	300	W
Input voltage	100~240	Vac
Output voltage/current	24V/5A	V/A
	12V/5A
	5V4A
Efficiency	88	%
Operating temperature	-20~60	ºC
Cooling method	Air forced cooling
Dimension	22513061 mm
Weight	1.4KG

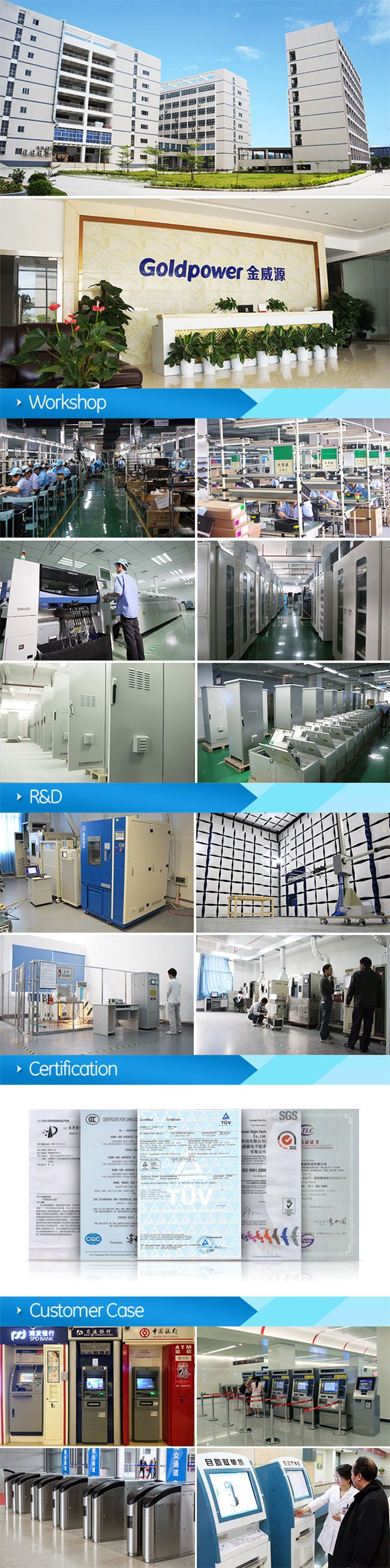

Shenzhen Gold Power Tech Co., Ltd. Was established in 1995, a leading excellence integrated power supply solutions partner in the industry. There's an independent industrial park with 80, 000 square meters in Pingshan district, Shenzhen, China. With more than 478 employees and many core intellectual property rights. The production capacity of all kinds of power supply is 6 million units every year, products are exported to more than 30 countries and regions over the world. Goldpower has been the national high-tech enterprise after more than 20 years of practice in power supply industry.

Our products cover Telecom, Green Solar Energy, Automobile application electronic and New energy fields formed six core product series, including standard telecom power supply, remote power supply, HVDC, Solar PV(photovoltaic), LED power supply and the car rechargeable power supply, widely used in communications, power electronics, automatic control, railway, military industry, medical treatment, financial self-service, LED, solar power and automobile charging control system.

We are ISO9001 approved enterprise and we can promise you good quality. Welcome to contact us for business cooperation.
