| Prod Model: |
PTX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface: |
Wire Drawing Finish |
| Thickness: |
1.2mm&1.5mm |
| OEM: |
Yes |
| Lock: |
Avaliable on Request |
| Type: |
Distribution Metering Box |
| Structure: |
Protection |
| Certification: |
ISO9001:2008,RoHS |
| Application Range: |
Electric Box |
| Shell Protection Grade: |
IP66 |
| Brand: |
Prota |
Product Description

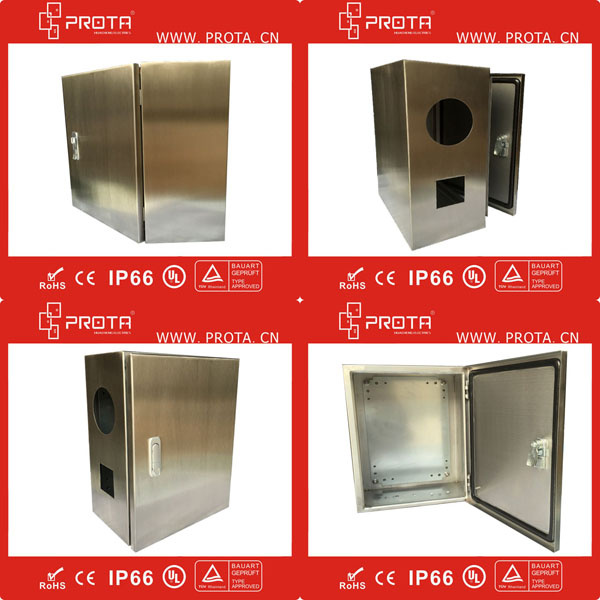

304/ 316 Stainless Steel Electric Boxproduction descriptionMaterial:SUS304, SUS316 stainless steel
Surface: wire drawing finish
Protection grade: IP66 (based on EN60529)Standard ConfigurationFront door, metal lock, galvanized mounting plate, body, and sealing gasket.
Thickness:
Body: 1.2mm THK if the height less than 800mm, after that it's 1.5mm THK instead.
Door: 1.2mm THK if the height less than 800mm, after that it's 1.5mm THK instead.
Galvanized Mounting Plate: 1.5mm THK if the height less than 800mm, after that it's 2mm THK instead.Craftsmanship Characteristics1. The foam PU sealing gasket makes sure the protection grade of box reaching IP66 level.
2. The extended border of box, hinges ensure the high intensity of box system
3. The galvanized mounting plate and the high intensity installation support bars ensure the liability of installation devices (can be used as the wiring)
4. The gland plate makes the very convenience and flexibility of inlet and outlet wiring cables
5. Wire drawing finish on the surface (sand blast can be applied inside the box for the high quality)
Selection Table| Model | H(mm) | W(mm) | D(mm) | Model | H(mm) | W(mm) | D(mm) |
| PTX2215 | 200 | 200 | 150 | PTX32525 | 300 | 250 | 250 |
| PTX3215 | 300 | 200 | 150 | PTX4325 | 400 | 300 | 250 |
| PTX3315 | 300 | 300 | 150 | PTX5325 | 500 | 300 | 250 |
| PTX4315 | 400 | 300 | 150 | PTX5425 | 500 | 400 | 250 |
| PTX5315 | 500 | 300 | 150 | PTX6425 | 600 | 400 | 250 |
| PTX5415 | 500 | 400 | 150 | PTX7525 | 700 | 500 | 250 |
| PTX6415 | 600 | 400 | 150 | PTX8625 | 800 | 600 | 250 |
| PTX6515 | 600 | 500 | 150 | PTX9625 | 900 | 600 | 250 |
| PTX7515 | 700 | 500 | 150 | PTX10825 | 1000 | 800 | 250 |
| PTX8615 | 800 | 600 | 150 | PTX101025 | 1000 | 1000 | 250 |
| PTX32520 | 300 | 250 | 200 | PTX12825 | 1200 | 800 | 250 |
| PTX3320 | 300 | 300 | 200 | PTX121225 | 1200 | 1200 | 250 |
| PTX4420 | 400 | 400 | 200 | PTX141025 | 1400 | 100 | 250 |
| PTX5520 | 500 | 500 | 200 | PTX4330 | 400 | 300 | 300 |
| PTX6620 | 600 | 600 | 200 | PTX5530 | 500 | 500 | 300 |
| PTX7620 | 700 | 600 | 200 | PTX6430 | 600 | 400 | 300 |
| PTX8620 | 800 | 600 | 200 | PTX7630 | 700 | 600 | 300 |
| PTX8820 | 800 | 800 | 200 | PTX8630 | 800 | 600 | 300 |
| PTX101020 | 1000 | 1000 | 200 | PTX9630 | 900 | 600 | 300 |
| PTX121020 | 1200 | 1000 | 200 | PTX121030 | 1200 | 1000 | 300 |
Shipping Infomation
-- Small electric box: paper cartons
-- Floor standing electric cabinet: paper cover
-- As per customers' requirements or negotiated
-- Samples can be send by courier(UPS, FEDEX, EMS,TNT, DHL),bulk production can be deliveried by sea and air.
Our Services
-- We can send you samples within one week.
-- We do OEM & ODM services .
-- We control quality strictly, quality problem: 100% compensation or change

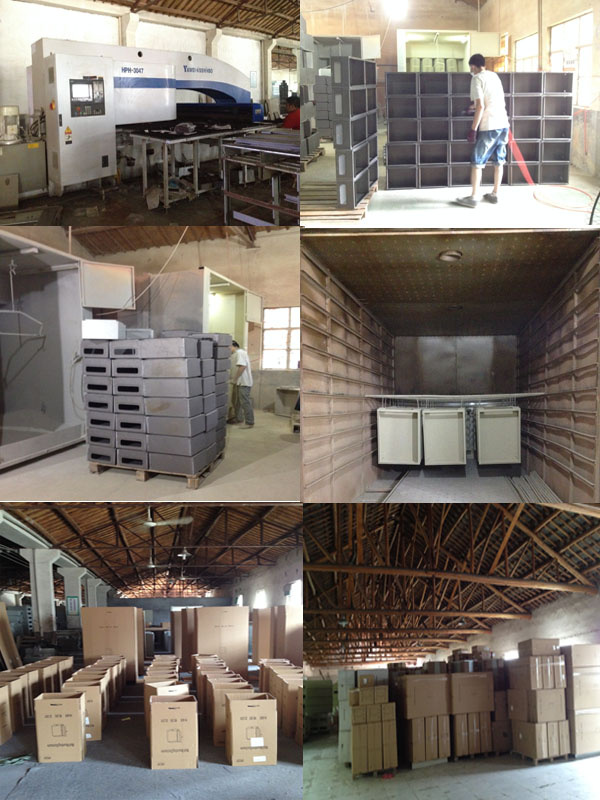

Welcome to visit our factory. Welcome customer or your agent to inspect before order and before loading.
