| Prod Model: |
PLX |
| Structure: |
Protection |
| Type: |
Junction Box |
| Certification: |
ISO9001:2008,RoHS |
| Application Range: |
Electrical Distribution |
| Shell Protection Grade: |
IP66 |
| Brand: |
Prota |
Product Description

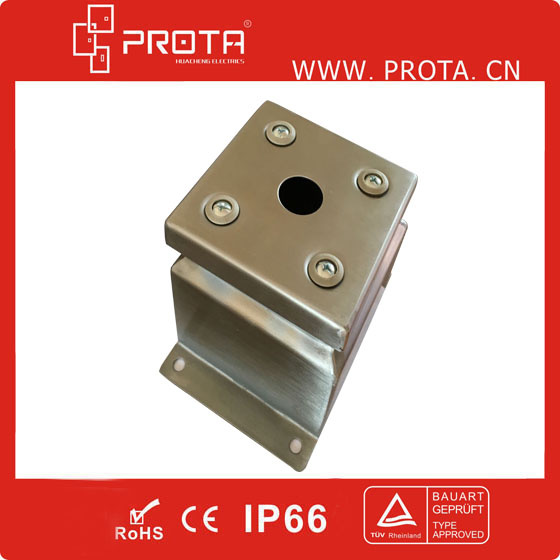

Waterproof Stainless Steel Junction Case for outdoor usingStandard configuration:
1. Material: SUS304 stainless steel
2. Surface treatment: wire drawing, mounting plate is galvanized
3. Protection degree: IP65
4. Thickness:
1) Box body: 1.2mm
2) Box lid: 1.2mm
3) Mounting plate: 1.5mm
Craftsmanship:

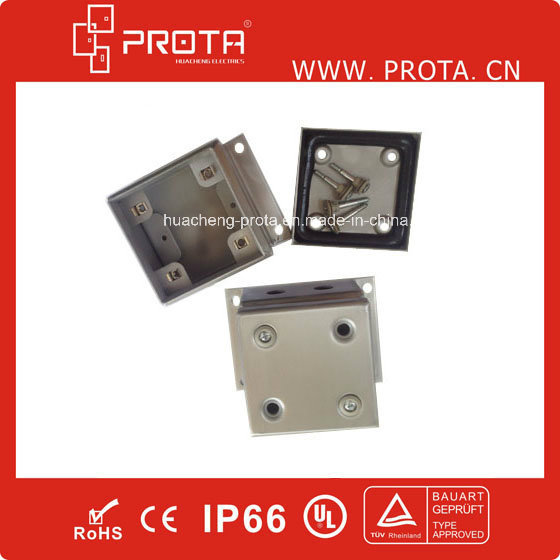

1. The lid and body are assembled by standard screws and washers, which ensures the protection degree and the utilization and maintenance in the narrow space. The slot of the body strengthens the enclosure itself; also prevent the dust and the water when enclosures are opened.
2. The PU foam sealing gasket makes sure the IP66 protection degree of the enclosures. The grounding wire can be connected to the body and lid.
3. The two sides inside body are equipped with supporting strips with screw holes, which ensures the maximum height of boxes. Moreover, they can be installed with DIN rails and mounting plate.
4. Specialized plastic insulated tubes prevent the screws peeling off from lid, also guiding the direction when fastening the screws.
5. There are 4 hanging holes in the back of the junction box, which is very convenient for installation.
Selection Table
| Model | W(mm) | H(mm) | D(mm) |
| PLX15158 | 150 | 150 | 80 |
| PLX151512 | 150 | 150 | 120 |
| PLX20158 | 200 | 150 | 80 |
| PLX201512 | 20 | 150 | 120 |
| PLX20208 | 200 | 200 | 800 |
| PLX202012 | 200 | 200 | 120 |
| PLX30158 | 300 | 150 | 80 |
| PLX301512 | 300 | 150 | 120 |
| PLX30208 | 300 | 200 | 80 |
| PLX302012 | 300 | 200 | 120 |
| PLX303012 | 300 | 300 | 120 |
| PLX401512 | 400 | 150 | 120 |
| PLX40208 | 400 | 200 | 80 |
| PLX402012 | 400 | 200 | 120 |
| PLX403012 | 400 | 300 | 120 |
| PLX404012 | 400 | 400 | 120 |
| PLX502012 | 500 | 200 | 120 |
| PLX503012 | 500 | 300 | 120 |
| PLX60208 | 600 | 200 | 80 |
| PLX602012 | 600 | 200 | 120 |
| PLX603012 | 600 | 300 | 120 |
| PLX604012 | 600 | 400 | 120 |
Packing and Shipping
-- Ordinary paper carton for electric enclosure.
-- Paper cover , PP strap, protective film is avaliable for big electric cabinet
-- Plastic bag is avaliable for stainless steel electric box
-- Bubble bag or protective film for inner protection to avoid scratches.
-- Plywood pallet is available when sheet metal products are in large amount.
--Shipping mark according to customer's request.
-- Samples can be send by courier(UPS, FEDEX, EMS,TNT, DHL),bulk production will be deliveried by sea and air.
