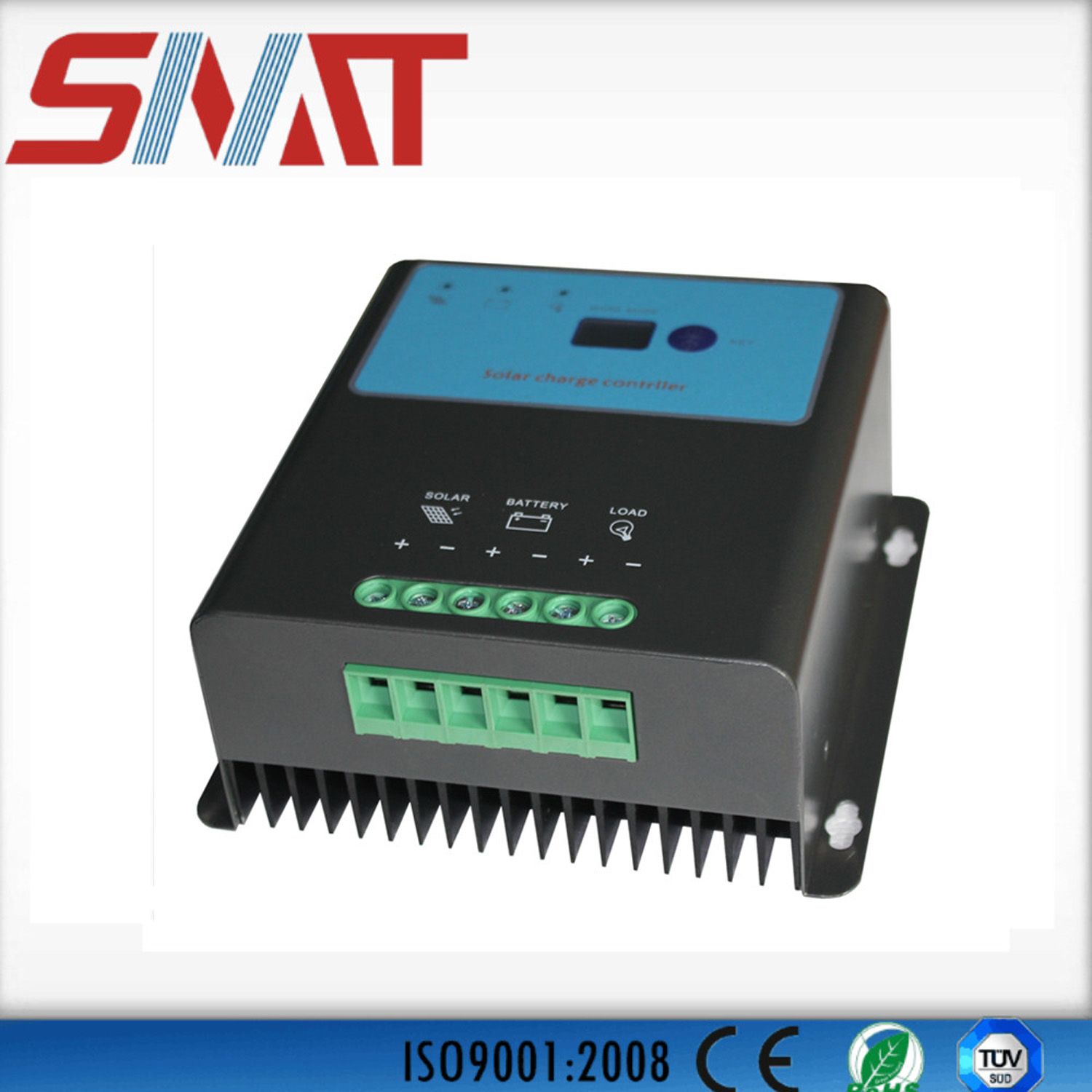

30A/40A/50A Controller, Solar Charge Controller for Solar Power System

Prod Model:	SCPP-345A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	30A/40A/50A Controller, Solar Charge Controller
Brand Name:	Snat/OEM/Obm
OEM/ODM:	Provide
MOQ:	1 Unit
Control Mode:	PWM
System Voltage:	24V/48V
Sample Order:	Accept
Warranty:	2 Years
Accessory:	Controller, Inverter, Battery.Power System
Function:	Battery Protection

Product Description

30A/40A/50A Controller, Solar Charge Controller for Solar Power System

PRODUCT OVERVIEW
Based on an MCU intelligent control technology,the product  realizes solar charge and discharge management for batteries for longerlives of systems,it is widely applied to the solar power systems for families,schools streets,industrial and mining enterprises,frontier defense ,sea islands,pasturing areas,etc

MAIN FEATURES

Excellent performance because of MCU control and intelligent optimized SOC design;
Longer batteries lives because of functions of overcharge function and overdischarge protection for batteries;
Full automatic control such as electronic short sircuit protection,overload protection and unique reserve connection prevention ;
Visualization of operation status of the equipment through simple LED indicators and nixie tubes and one-button setting
An industrial chip provided for all control to enable equipment to operate in a  cold ,hot or humid condiition;
Crystal oscillator is used for timing control,featuring accurate conreol and having muti-stage single-interval Fixed-time setting and independently settable muti-stage dual-interval fixed-time setting

TECHNICAL INDEXES

Model:SCP-	024(48)30	024(48)40	024(48)50
Rated charge current	30A	40A	50A
Rated load current	20A
System voltage	24v/48vV automatic
Maximum photovoltaic voltage	<50V;X4/48VVDC
Maximum power	720WP;X2/48V	960WP;X2/48V	1200WP;2X48V
No-load loss	≤15MA
Voltage drop of the charge circuit	≤0.26V
Voltage drop of the diacharge circuit	≤0.15V
overvoltage protection	17V;X2/24V;X4/48V
voltage of boosting charge	14.6V;X2/24V;X4/48V(hold time:30min)(called upon overdischarge only )
voltage of direct charge	14.4V;X2/24;X4/48V(hold time :30min)
Voltage of floating charge	13.6V; X2/24;4/48V(hold time :operation will begin upon the charge recovery voltage)
charge recovery voltage	13.2V;X2/24V;X4/48V
Temperature compensation	-5mv/ºC/2V(compensation for the boosting charge voltage,the direct charge voltage ,the floating charge voltage,the charge recovery voltage)
Undervoltage voltage	12.0V;X2/24V;X4/48V
Overdischarge recovery voltage	11.1V-initial overcharge voltage of discharge rate compensation (no-load voltage );x2/48v
control mode	PWM( pulse width modulation)
operating temperature	industrial level:-35ºC~+35ºC
Net weight/Gross weight	0.9/1.1KG

Warranty:
Quality warranty for 1 year; parts will be shipped for free during warranty period.

Delivery time:
Stick to contract.

Concurrently engaged in relative solar power system products such as solar panel, gel battery, sealed lead acid battery, Combiner box, etc

Accept special design requirements.

WELCOME TO CONTACT US.
