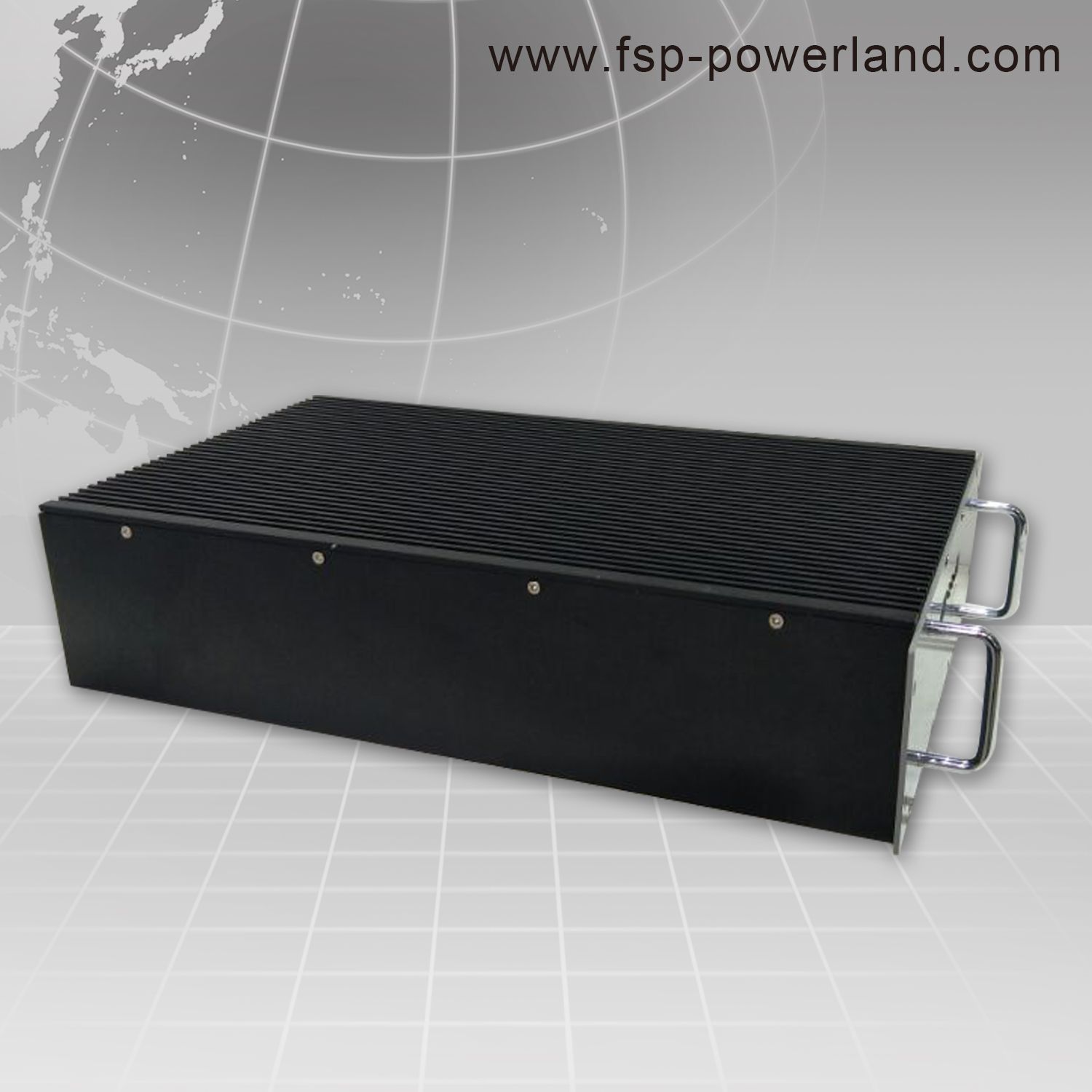

30kw EV Charger Rectifier Module for Electric Vehicle Charging Pile

Name: 30kw EV Charger Rectifier Module for Electric Vehicle Charging Pile
Brand: all-electronics-online.com
SKU: 800760115
Availability: InStock
Rating: 4.9 (32 reviews)

Price:	Negotiable/Piece
Min Order:	200/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SEAL 30
Output Voltage:	300~750V
Input Type:	Three Phase, Three Lines
Storage Temperature:	-40~85oc
Type:	Lithium Ion Battery Charger
Charging Type:	Electric Charger
Principle:	PWM

Product Description

30kW EV Charging Rectifier Module for EV Charger

Features
Ultra High Reliability
Fully-Enclosed Design
Ultra High Power Density
35% Less Power Loss

Specifications

	30kW AC-DC Charging Rectifier Module
Output Power	30kW
Input Voltage	304~456Vac
Input Type	Three Phase, Three Lines
Input Frequency	45~65Hz
Power Factor	≥0.99@50~100% Load
THD	≤3%@100% Load, ≤5%@50% Load
Input Current	<52A
Input Inrush Current	<90A
Output Voltage	300~750V
Max. Output Current	40A
Output Overshoot Voltage	750V
Efficiency	96.5% typical @380Vac
Standby Power Loss	<0.1% Full Power
Output Regulation	±0.5% max
Output Voltage Accuracy	±1% max
Output Current Accuracy	±1% max
Output Voltage Ripple	<1% (Peak), <0.5% (RMS)
Current Sharing Accuracy	≤±5%@50~100% Load
Operating Temperature	-30~+65oC (Derating above 50oC)
Operating Humidity	5%~95% (No Condensing)
Storage Temperature	-40~85oC
Dimensions	454x436x96mm
Cooling	Forced Air Cooling on Case
IP Level	IP54
Weight	<35kg
Altitude	≤4000m (When operating above 1000m, derating 1oC per 100m)
MTBF	400,000 Hours
Noise	≤55dB@Full Load
EMI	EN55022 Class A, EN55032 Class A
ESD	EN61000-3-11,12, EN61000-4-2,3,4,5,6,11
Surge Protection	YD 5098-2005 5kA

* The data above are based on 380Vac input, full load output, 25oC ambient temperature, unless otherwise noted.

Our Service & Payment

FSP-Powerland Technology Inc. is a leading customized power company, providing full service and solutions for industial, military, medical and consumer applications. Since established in spring 2009, Powerland has attracted international expertise into its R&D team. Powerland never stops integrating technology innovation with experienced product development, to design and manufacture high-end power electronics products featured with high efficiency, high reliability, super long life, and high power density.

Since its establishment, Powerland has been focusing on green power products, including LED lighting power, solar power, MID/large-scale battery power, and other high-efficiency power supplies. In addition, to strengthen our technology and market competitiveness, Powerland has established strategic cooperation relationships with multiple global companies, and carries on the customized design service for challenging power solutions.

Looking into the future, Powerland will continue our "Me-First" product strategy, and will extend our advantages in leading-edge technologies. Together with the solid base of FSP-Group, and our sharp market insights and outstanding manufacturing quality, Powerland looks into "breaking limits, establishing the horizon" in green energy and power electronics field
