3500W 15A/12A E-Vehicle on-Board Battery Charger

3500W 15A/12A E-Vehicle on-Board Battery Charger
Price: Negotiable/Piece
Min Order: 100/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: PLD3500-11CH03-340/450
Output Power: 3500W
Color: Black
Warranty: 5 Years
Output Voltage: 170~340V/220~450V
ODM: Accepted
Type: Lithium Ion Battery Charger
Charging Type: Electric Charger
Principle: PWM

Product Description

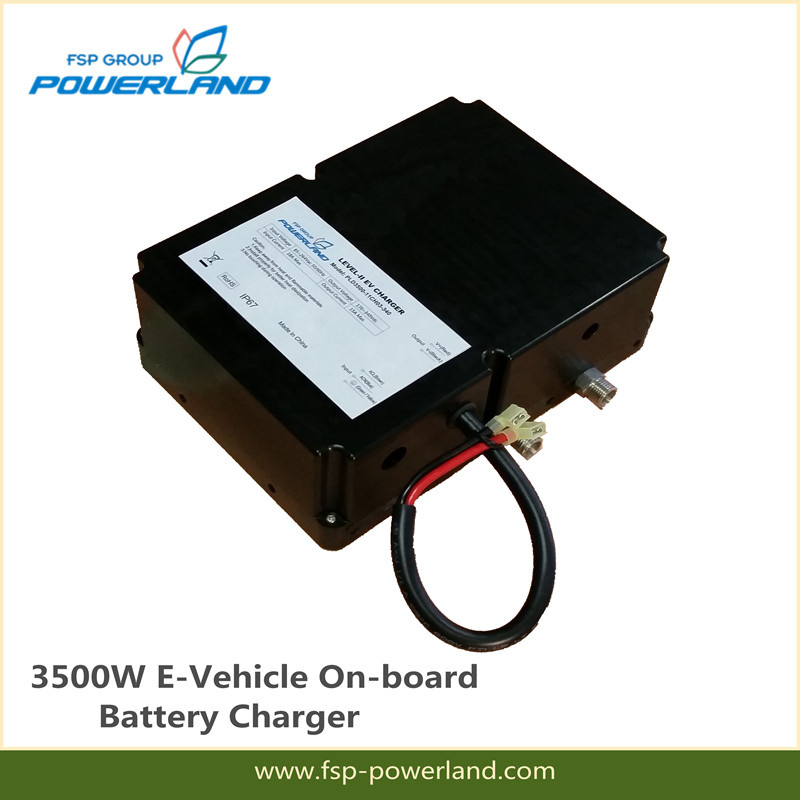

3500W 15A/12A E-Vehicle On-board Battery Charger

Features
Three times life
Fully enclosed design with IP67
Output power:3500W

Low temperature start up:-40ºC
High temperature full load operation:70ºC(Water cooling)
Universal AC Input/Full Rang:180~264Vac
Efficiency up to 96%
Output Voltage:170~340V/220~450V battery bank
All-around protections:OVP,OCP,SCP,OTP.UVLO
Optional CAN Communication
For E-Vehicle
RoHS Compliant

5 Year Warranty


Specifications
ModelPLD3500-11CH03-340/450
Power3500W
Input Voltage180~264Vac
Output Voltage170~340V/220~450V
Output Current15A/12A
Isolation3000 Vac
ON/OFF ControlYes
Output AccuracyAdjustable Output
Capactive LoadUnlimited with battery
Efficiency96%
Operating Temp-40~85ºC
CommunicationCAN
Dimension125×180×53mm
CoolingWatercooling
IP LevelIP67
ProtectionsOVP/OCP/OTP/SCP

Our Service & Payment

FSP-Powerland Technology Inc. is a leading customized power company, providing full service and solutions for industial, military, medical and consumer applications. Since established in spring 2009, Powerland has attracted international expertise into its R&D team. Powerland never stops integrating technology innovation with experienced product development, to design and manufacture high-end power electronics products featured with high efficiency, high reliability, super long life, and high power density.

Since its establishment, Powerland has been focusing on green power products, including LED lighting power, solar power, MID/large-scale battery power, and other high-efficiency power supplies. In addition, to strengthen our technology and market competitiveness, Powerland has established strategic cooperation relationships with multiple global companies, and carries on the customized design service for challenging power solutions.

Looking into the future, Powerland will continue our "Me-First" product strategy, and will extend our advantages in leading-edge technologies. Together with the solid base of FSP-Group, and our sharp market insights and outstanding manufacturing quality, Powerland looks into "breaking limits, establishing the horizon" in green energy and power electronics field
