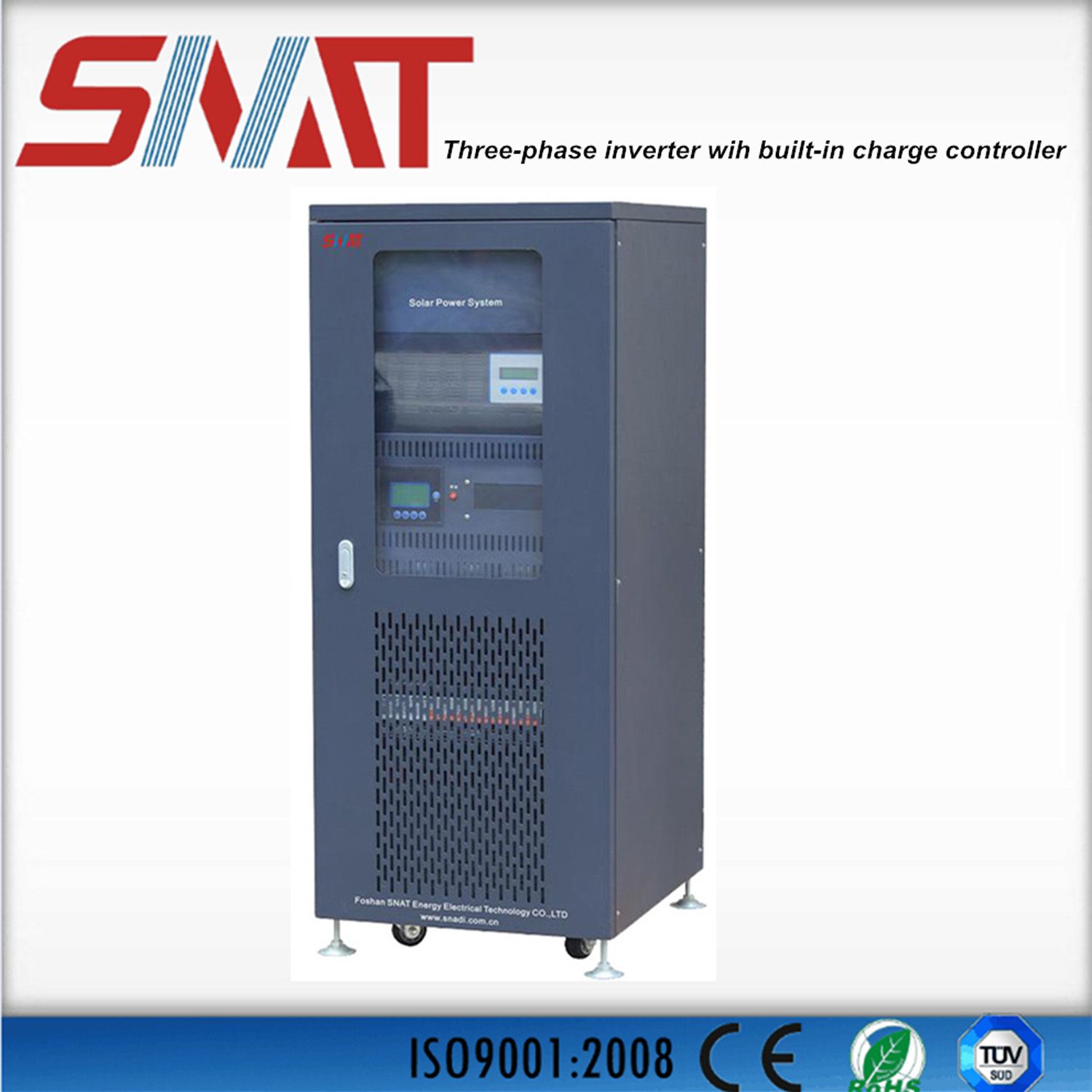

30kw Three-Phase Hybrid Solar Power Inverter with Built-in Controller

Prod Model:	NKG-30KW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Snat/OEM/ODM:	Accept
Rated Voltage:	192VDC/220VDC/384VDC
Rated Current:	100A
Efficiency:	>95%
Company:	Manufacturer&Trading
Phase:	Three
Power Source:	Solar Power
Application:	Industrial, Commercial
Brand:	Snat
MOQ:	1 Piece

Product Description

Product overview
This Hybrid Solar Power Inverter is an intelligent inverter with built-in charge controller designed for large photovoltaic power generations. Its built-in control r can realize charge management for a battery pack by multiple solar arrays to improve charge efficiency and life of the battery pack. Thanks to the DSP control base on SPWM high-frequency carrier technology and IGBT power device, it can control the output operation parameters accurately to provide a high quality and reliable pure sine wave AC power supply for precision equipment. It is widely applied to large solar power generator occasions including families, schools, public lighting, industrial and mining enterprises, frontier defense, sea islands, pasturing areas and more

Main Features:
+ Excellent performance because of the DSP intelligent control inversion technology:
+ A wide range of applicable loads because of pure sine wave AC output;
+ Visualization of operation status of the equipment through simple LEDs and a LCD:
+ Overall automatic protection and alarms such as output overload protection;
+ Solar array and battery common-anode system input:
+ Intelligent charge control based on programming of charge parameters, which is provided to meet the special needs of different occasions:
+ Settable battery protection parameters and a function of password protection:
+ A function to accumulate the photovoltaic power generation capacity and the battery capacity:
+ Overall protection: Protection and alarm for reverse connection of the battery poles. Battery overcharge and back charge of the battery at night:
+ Display of the current battery voltage, battery charge current. Internal temperature of the case, total photovoltaic power generation capacity (AH) total power consumption by the load. Total battery level (AH). Photovoltaic current when each solar battery is separately conducted and more
Technical Parameter

Model		NKG-30KW
Rated power		30KW
Battery	Rated voltage	384VDC
	Voltage of over discharge protection	345VDC
Controller	Rated current	100A
	Rated voltage	384VDC
	Number of inputs	4
	Max. current of each input	25A
	Solar input voltage	<660VDC
	Voltage of overcharge protection	445VDC(programmable)
	Control accuracy	±0.1
	Display accuracy	±0.1
	Efficiency	>95%
Inverter	Input voltage	176-364VAC/304-456VAC
	Input frequency	45-65HZ
	Output voltage	220VAC/380VAC ( three-phase four-wire)
	Output frequency	50/60HZ
	Output waveform	Pure sine wave, THD<4% (full load)
	Protection function	Output short circuit protection, overvoltage protection, under voltage protection, low battery protection and more.
	Manual power-on/off	Manual power-on/off preferred
	Automatic power on/off	Light-operated power-on + fixed-time power-off (programmable)
Other	Ambient temperature for operation	0-40ºC
	Relative humidity for operation/storage	20-90% (No condensation, maximum)

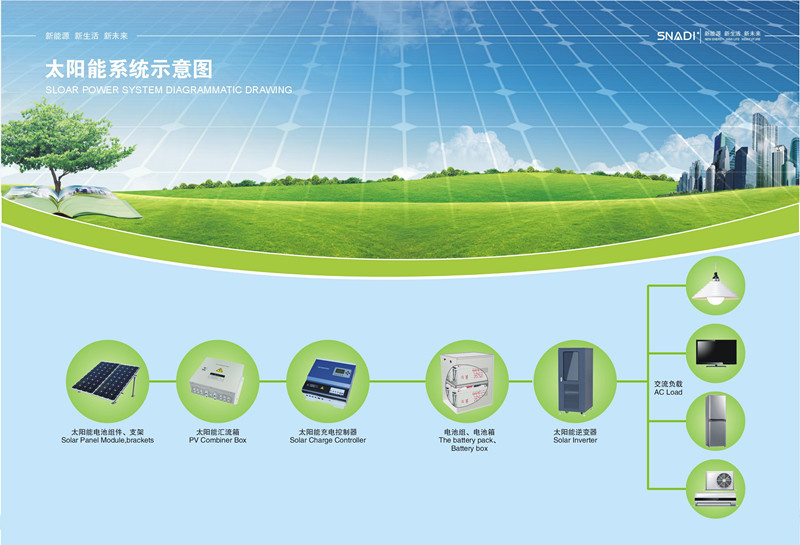

Application in Solar Power System

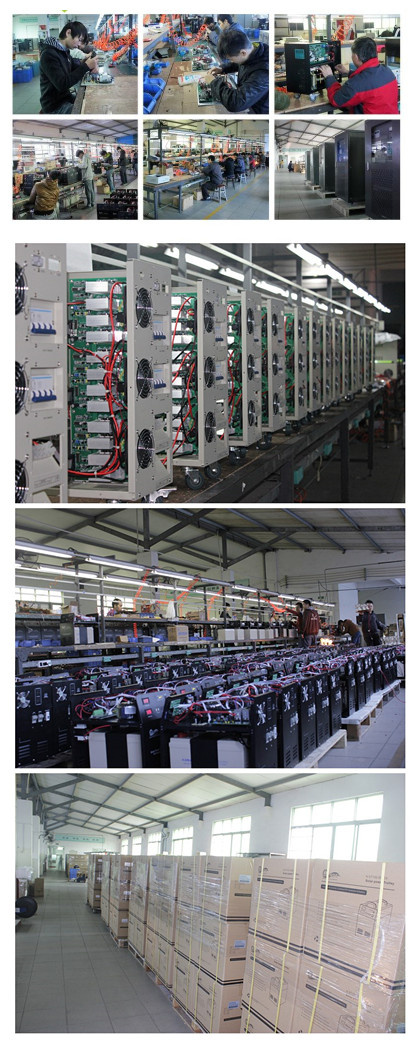

Manufacture&Pakage

FAQ:

Q1:What is the warranty of your product?

 A:Quality warranty for 12 months; parts will be shipped free during warranty period.

Q2: Can you do OEM?

A:yes,we can offer the OEM service.

Q3 What is your delivery time?

A:Within 5 day after receive advanced payment.

Q4 What minimum order do you require?

A:1 piece
